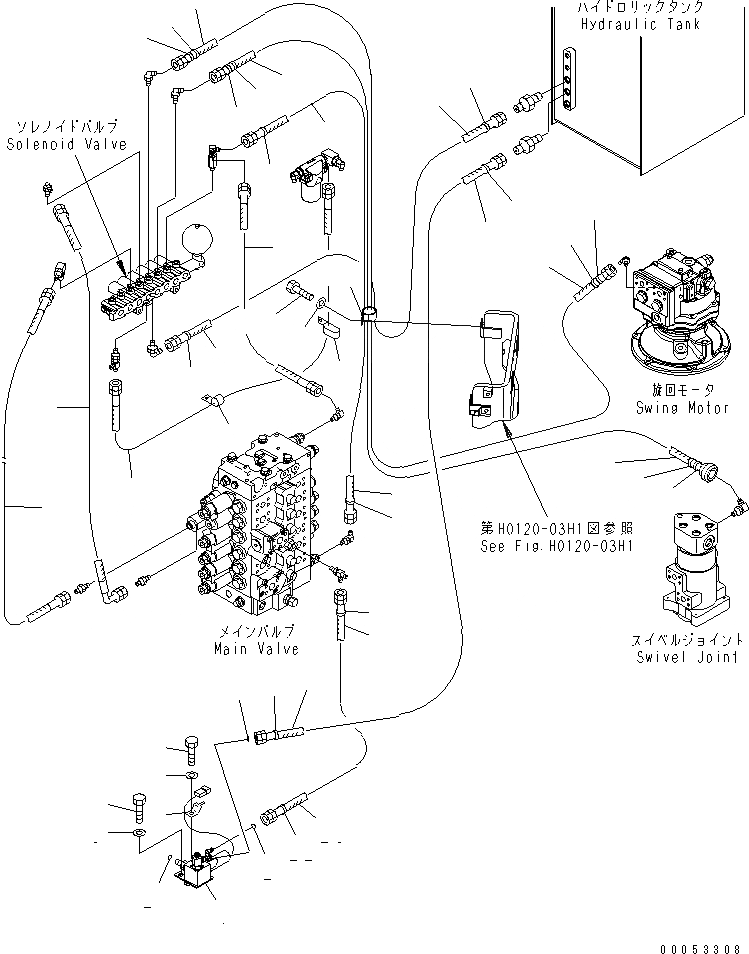

Запчасти Komatsu PC228USLC-3E0 СОЛЕНОИДНЫЙ КЛАПАН (ШЛАНГИ) ( АКТУАТОР) (ДЛЯ KAL)(№-8) ГИДРАВЛИКА

1

22U-62-26801

VALVE ASS'Y,(SEE FIG. Y1862-01H1)

2

02896-11008

O-RING

3

02896-11009

O-RING

4

01010-81225

BOLT

5

01643-31232

WASHER

6

08193-21012

CLIP

7

01010-81225

BOLT

8

01643-31232

WASHER

9

22U-62-26820

HOSE

10

22U-62-26830

HOSE

11

22U-62-26840

HOSE

12

22U-62-26850

HOSE, 1050MM

13

20Y-62-22790

BAND, RED

14

20Y-62-22810

BAND, YELLOW

15

20Y-62-22820

BAND, BLUE

16

20Y-62-22850

BAND, GREEN

17

20Y-62-22860

BAND, BROWN

18

22U-62-31770

HOSE

19

208-62-72331

HOSE, 1300MM

20

208-62-72590

HOSE, 700MM

21

20Y-62-22840

BAND, BLACK

22

20Y-62-22850

BAND, GREEN

23

208-62-71670

HOSE, 550MM

24

22U-62-28511

HOSE

25

22U-62-26782

HOSE ASS'Y, 450MM

26

21T-06-11950

CLIP

27

01010-81225

BOLT

28

01643-31232

WASHER

29

04434-51212

CLIP

30

04435-51212

CLIP
