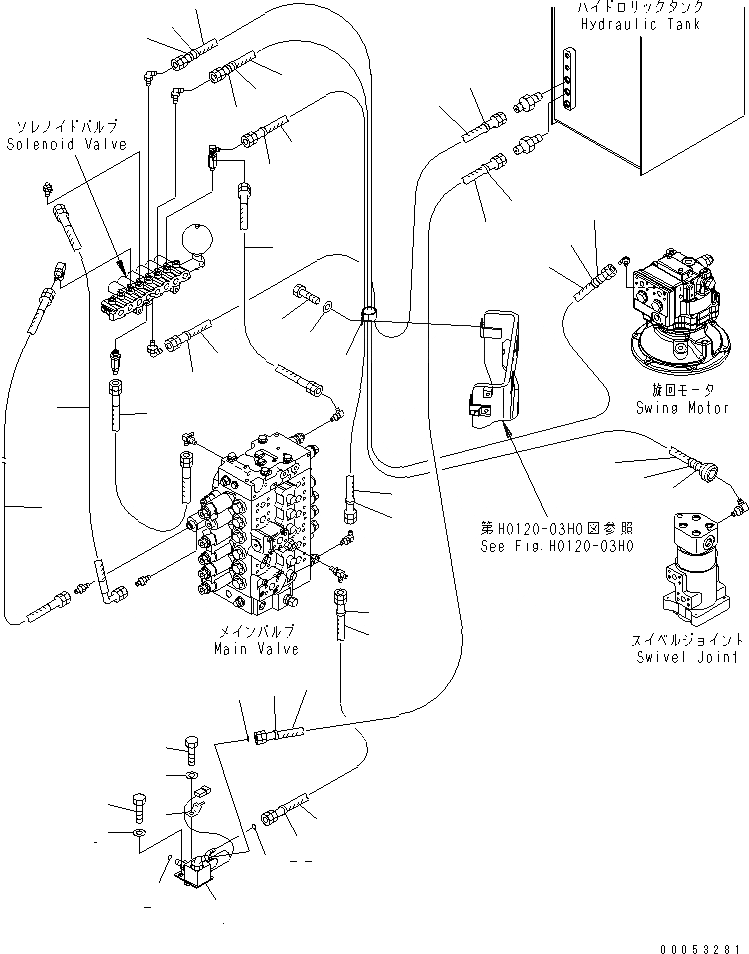

Запчасти Komatsu PC228USLC-3E0 СОЛЕНОИДНЫЙ КЛАПАН (ШЛАНГИ) ГИДРАВЛИКА

1

22U-62-26600

VALVE ASS'Y

2

02896-11008

O-RING

3

02896-11009

O-RING

4

01010-81225

BOLT

5

01643-31232

WASHER

6

08193-21012

CLIP

7

01010-81220

BOLT

7

01010-81225

BOLT

8

01643-31232

WASHER

9

22U-62-26820

HOSE

10

22U-62-26830

HOSE

11

22U-62-26840

HOSE

12

22U-62-26850

HOSE, 1050MM

13

20Y-62-22790

BAND, RED

14

20Y-62-22810

BAND, YELLOW

15

20Y-62-22820

BAND, BLUE

16

20Y-62-22850

BAND, GREEN

17

20Y-62-22860

BAND, BROWN

18

208-62-72610

HOSE, 450MM

19

208-62-72331

HOSE, 1300MM

20

208-62-72590

HOSE, 700MM

21

20Y-62-22840

BAND, BLACK

22

20Y-62-22850

BAND, GREEN

23

208-62-71670

HOSE, 550MM

24

22U-62-26782

HOSE ASS'Y, 450MM

25

04434-53212

CLIP

25

21T-06-11940

CLIP

26

01010-81225

BOLT

27

01643-31232

WASHER
