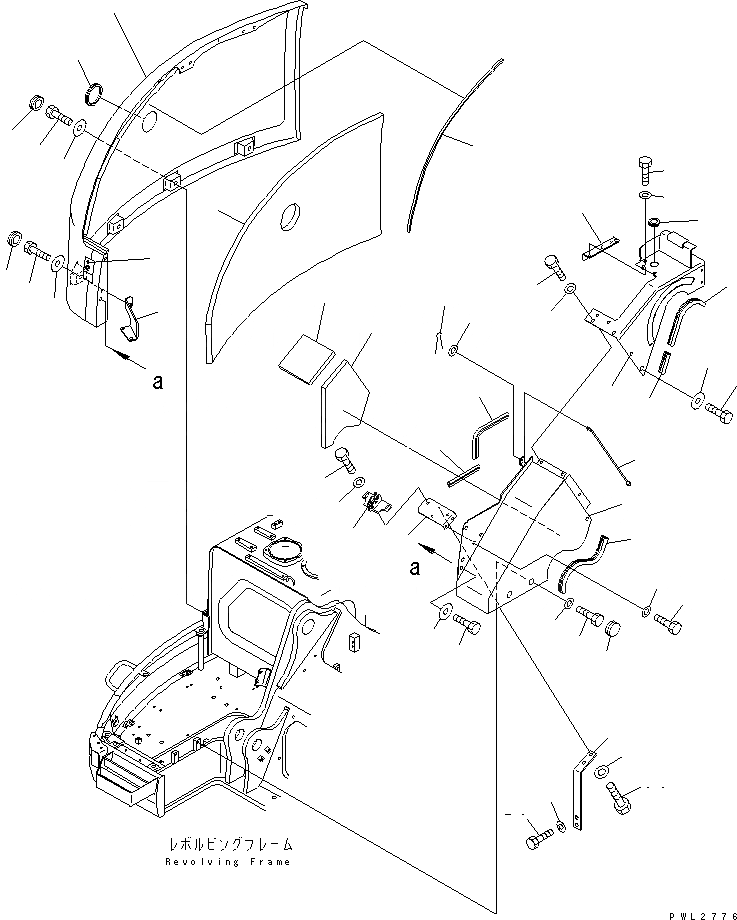

Запчасти Komatsu PC228USLC-2 ПЕРЕДН. КРЫШКА(COVER) (/) ( АКТУАТОР) ЧАСТИ КОРПУСА

|1

22U-54-17570

COVER

1

COVER

2

22U-54-11161

LOCK

3

22U-54-17590

SHEET

4

22U-54-12870

SEAL

5

01010-81230

BOLT

6

175-54-34170

WASHER

7

22U-54-17780

CAP

8

22U-54-12490

COVER

|9

22U-54-12395

COVER

|9

22U-54-12394

COVER

9

COVER

10

22U-54-11911

SEAL

11

22U-54-11991

SEAL

12

22U-54-12782

SHEET

13

22U-54-12791

SHEET

14

22U-54-12890

SEAL

15

20Y-54-27503

LOCK ASS'Y

|15

20Y-54-27502

LOCK ASS'Y

16

01010-81025

BOLT

17

01643-31032

WASHER

18

22U-54-11182

ROD

19

01643-31032

WASHER

20

04050-13020

PIN

21

22U-54-12250

BRACKET

22

01010-81230

BOLT

23

01643-31232

WASHER

24

01010-81230

BOLT

25

01643-31232

WASHER

26

175-54-34170

WASHER

27

22U-54-17790

CAP

28

22U-54-12170

BRACKET

29

01010-81235

BOLT

30

01010-81225

BOLT

31

01643-31232

WASHER

32

22U-54-17430

CAP

|33

22U-54-17640

COVER ASS'Y

33

COVER

34

22U-54-12980

SHEET

35

22U-54-12990

SHEET

36

08037-03614

GROMMET

37

01010-81230

BOLT

38

01643-31232

WASHER

39

175-54-34170

WASHER

40

22U-54-17620

BRACKET

41

01010-81225

BOLT

42

01643-31232

WASHER
