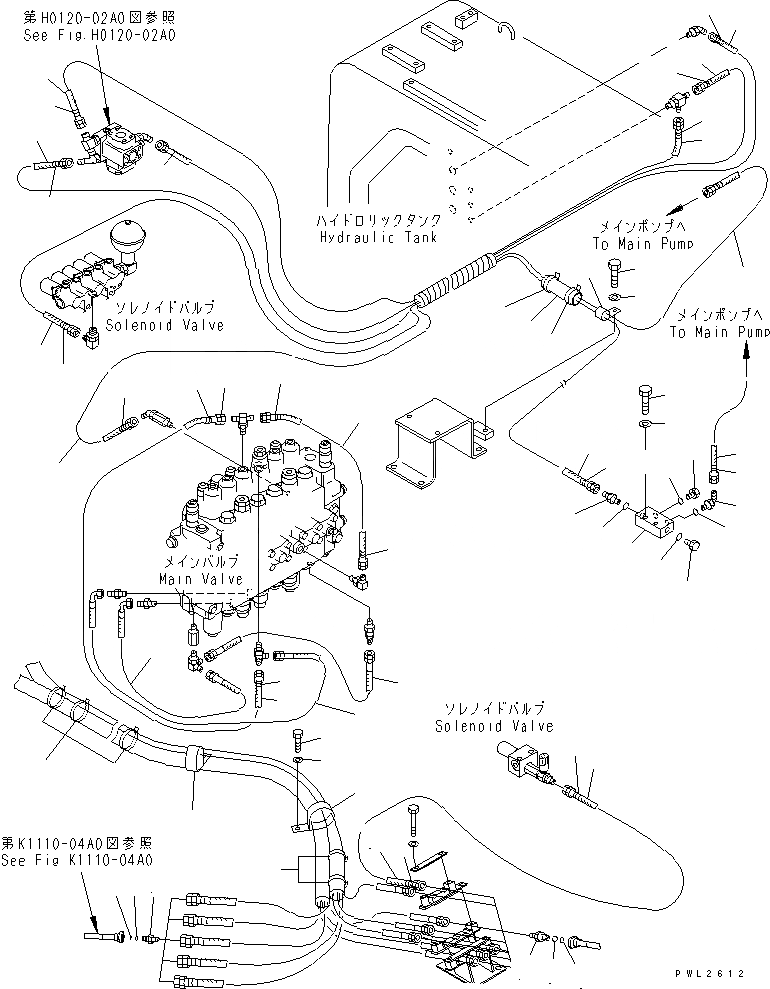

Запчасти Komatsu PC228USLC-2 ОСНОВН. ЛИНИЯ PPC (ШЛАНГИ) (ДЛЯ MONO СТРЕЛА) ГИДРАВЛИКА

1

08034-00536

BAND

2

207-62-33690

CLIP

3

01010-81225

BOLT

4

01643-31232

WASHER

5

203-62-52310

HOSE, 700MM

6

20Y-62-22850

BAND, GREEN

7

203-62-63420

JOINT

8

201-60-11390

O-RING

9

20Y-62-19560

O-RING

10

08034-00536

BAND

11

201-62-72390

HOSE

12

201-62-74720

HOSE

13

07096-00224

HOSE

14

195-61-41320

HOSE, 1300MM

15

07184-00214

HOSE

16

07184-00211

HOSE

17

07184-00219

HOSE

18

20Y-62-22790

BAND, RED

19

203-62-57910

MARK, 1

20

203-62-57970

MARK, 7

21

203-62-57980

MARK, 8

22

203-62-52390

HOSE

23

07184-00204

HOSE

24

08034-00536

BAND

25

20T-62-81410

HOSE, 500MM

26

22U-62-14480

BLOCK

27

01010-81050

BOLT

28

01643-31032

WASHER

29

07040-11007

PLUG

30

07002-11023

O-RING

31

07235-10210

ELBOW

32

07230-20210

UNION

33

07002-11423

O-RING

34

07040-11409

PLUG

35

07002-11423

O-RING

36

04434-52712

CLIP

37

01010-81225

BOLT

38

01643-31232

WASHER

39

205-62-72240

COVER

40

08034-00536

BAND
