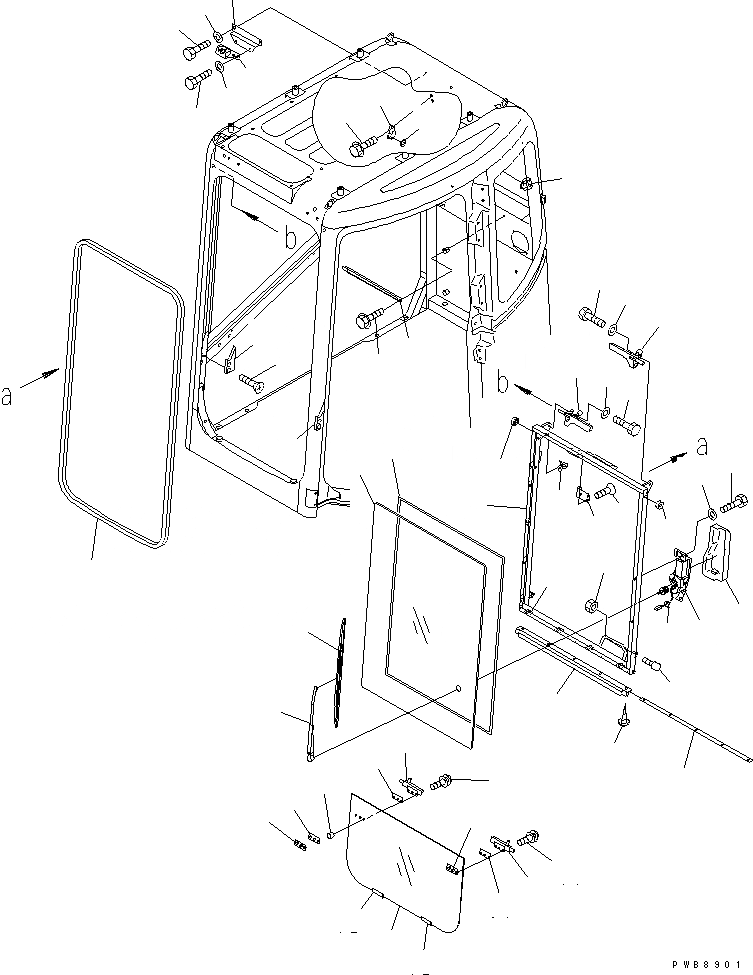

Запчасти Komatsu PC228USLC-1 КАБИНА (СДВИГ. ВВЕРХ ОКНА)(№-7) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

22U-54-14310

WINDOW,FRONT

2

21J-54-16610

LATCH ASS'Y,L.H.

3

21J-54-16620

LATCH ASS'Y,R.H.

4

20Y-54-14750

BOLT

5

01643-70823

WASHER

6

20Y-54-14310

STRIKER

7

20Y-54-14280

SCREW

8

20Y-54-14290

STOPPER

9

20T-54-74550

NUT

10

21J-54-14541

SEAL

11

21J-54-14551

PLATE

12

01370-40416

SCREW

13

22U-54-14321

GLASS,FRONT

14

21J-54-14530

DAM

15

20T-54-74230

ROLLER, 26.0MM

16

21W-54-24821

MOTOR ASS'Y

17

01010-D1016

BOLT

18

01643-71032

WASHER

19

20U-54-24840

ARM

20

20T-54-74990

BLADE

21

22U-54-14381

COVER

22

08034-20876

BAND

23

21W-54-14690

CLIP

24

14X-911-4551

CLIP

25

21J-54-14670

BRACKET

26

01010-D0816

BOLT

27

01643-70823

WASHER

28

205-54-63310

LOCK ASS'Y

29

01010-D0816

BOLT

30

01643-70823

WASHER

31

22U-54-14970

STOPPER

32

01240-00825

SCREW

33

21J-54-14650

SEAL,FRONT

34

22U-54-14541

GLASS,FRONT, LOWER

35

20U-54-24611

LATCH,L.H.

36

20U-54-24621

LATCH,R.H.

37

20T-54-32750

PACKING, 2.0MM

38

20T-54-32870

PACKING, 1.0MM

39

20T-54-32760

RETAINER,L.H.

40

20T-54-32770

RETAINER,R.H.

40A

20T-54-32780

PACKING

41

01023-20510

SCREW

42

20U-54-25140

STOPPER

43

22U-54-14890

BRACKET

44

20T-54-75210

GROMMET

45

01435-40612

BOLT

46

22U-54-14870

BRACKET,REAR

47

01435-40612

BOLT
