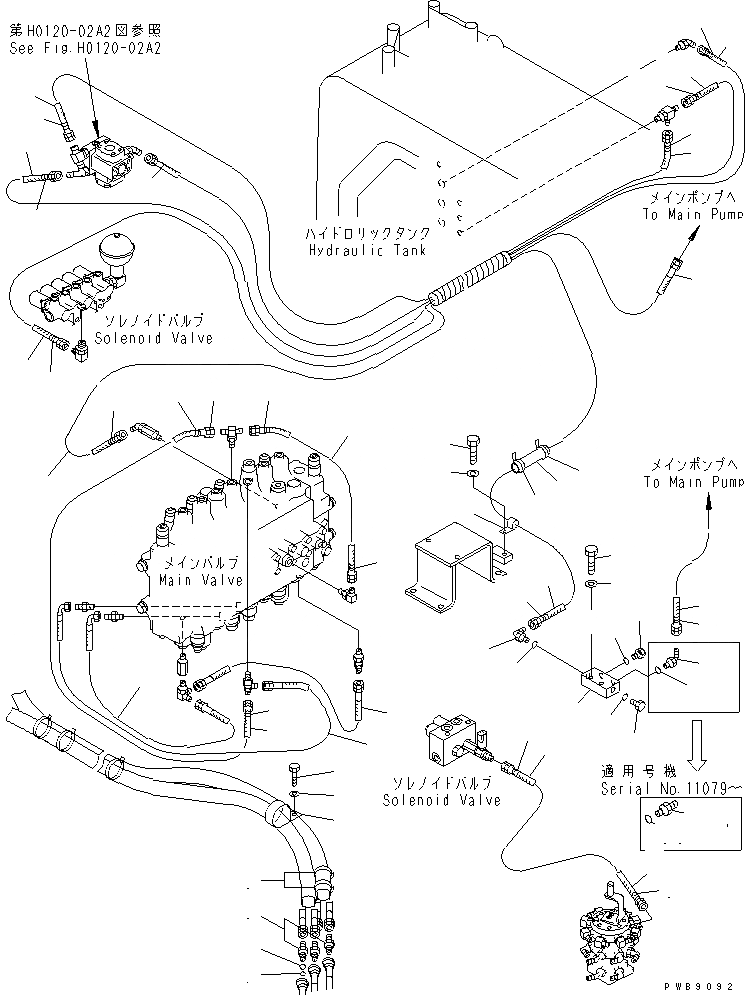

Запчасти Komatsu PC228USLC-1 ОСНОВН. ЛИНИЯ PPC (ШЛАНГИ) ( АКТУАТОР) (ДЛЯ MONO СТРЕЛА) (WAY) ГИДРАВЛИКА

1

207-62-33690

CLIP

2

01010-81225

BOLT

3

01643-31232

WASHER

4

203-62-52310

HOSE, 700MM

5

20Y-62-22850

BAND, GREEN

6

203-62-63420

JOINT

7

201-60-11390

O-RING

8

20Y-62-19560

O-RING

9

08034-00536

BAND

10

07096-00224

HOSE

11

195-61-41320

HOSE, 1300MM

12

07184-00214

HOSE

12

203-62-52270

HOSE, 1400MM

13

07184-00211

HOSE

13

203-62-52290

HOSE, 1100MM

14

07184-00219

HOSE

14

203-62-52220

HOSE

15

20Y-62-22790

BAND, RED

16

203-62-57910

MARK, 1

17

203-62-57970

MARK, 7

18

203-62-57980

MARK, 8

19

203-62-52390

HOSE

19A

07184-00204

HOSE

19A

203-62-52390

HOSE

20

201-62-74720

HOSE

21

08034-00536

BAND

22

201-62-72390

HOSE

23

201-62-81410

HOSE

24

22U-62-14480

BLOCK

25

01010-81050

BOLT

26

01643-31032

WASHER

27

07040-11007

PLUG

28

07002-11023

O-RING

29

07235-10210

ELBOW

29

07235-10210

ELBOW

29A

07230-20210

UNION

30

07002-11423

O-RING

31

07040-11409

PLUG

32

07002-11423

O-RING

33

04434-53212

CLIP

34

01010-81225

BOLT

35

01643-31232

WASHER

36

205-62-72240

COVER

37

08034-00536

BAND
