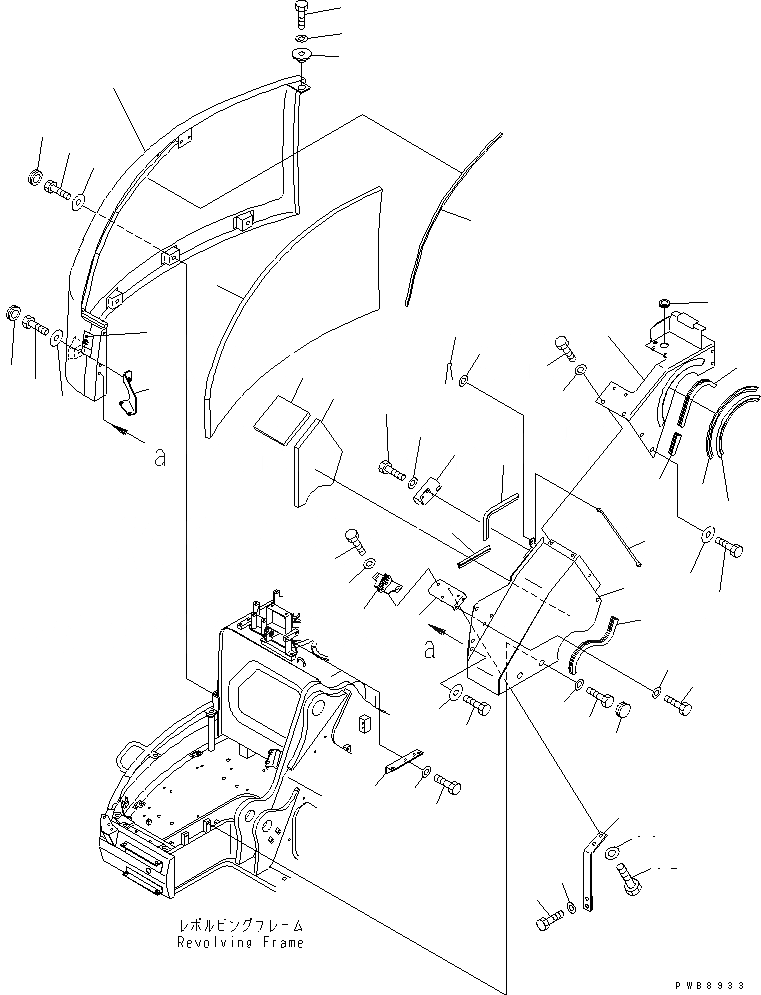

Запчасти Komatsu PC228USLC-1 ПЕРЕДН. КРЫШКА(COVER) (/) (ДЛЯ MONO СТРЕЛА) ЧАСТИ КОРПУСА

|$4

22U-54-12384

COVER

1

COVER

2

22U-54-11161

LOCK

3

22U-54-12762

SHEET

4

22U-54-12870

SEAL

5

01010-81230

BOLT

6

175-54-34170

WASHER

7

22U-54-15160

CAP,(FOR U.S.A.)

7

22U-54-11331

CAP

8

01010-81230

BOLT

9

21N-30-11340

COLLAR

10

01643-31232

WASHER

11

22U-54-12490

COVER

|$19

22U-54-12394

COVER

12

COVER

13

22U-54-11911

SEAL

14

22U-54-11991

SEAL

15

22U-54-12782

SHEET

16

22U-54-12791

SHEET

17

22U-54-12890

SEAL

18

20Y-54-27502

LOCK ASS'Y

19

01010-81025

BOLT

20

01643-31032

WASHER

21

22U-54-11182

ROD

22

01643-31032

WASHER

23

04050-13020

PIN

24

22U-54-12250

BRACKET

25

01010-81230

BOLT

26

01643-31232

WASHER

26A

22U-54-11861

BRACKET

26B

01010-81220

BOLT

26C

01643-31232

WASHER

27

01010-81230

BOLT

28

01643-31232

WASHER

29

175-54-34170

WASHER

30

09415-02512

CAP,(FOR U.S.A.)

30

22U-54-11390

CAP

31

22U-54-12170

BRACKET

32

01010-81230

BOLT

33

01643-31232

WASHER

|$53

22U-54-12414

COVER

34

COVER

35

22U-54-11940

SEAL

36

22U-54-11950

SEAL

37

22U-54-12980

SHEET

38

22U-54-12990

SHEET

39

08037-03614

GROMMET

40

01010-81230

BOLT

41

01643-31232

WASHER

42

175-54-34170

WASHER

43

22U-54-12271

BRACKET

44

01010-81225

BOLT

45

01643-31232

WASHER
