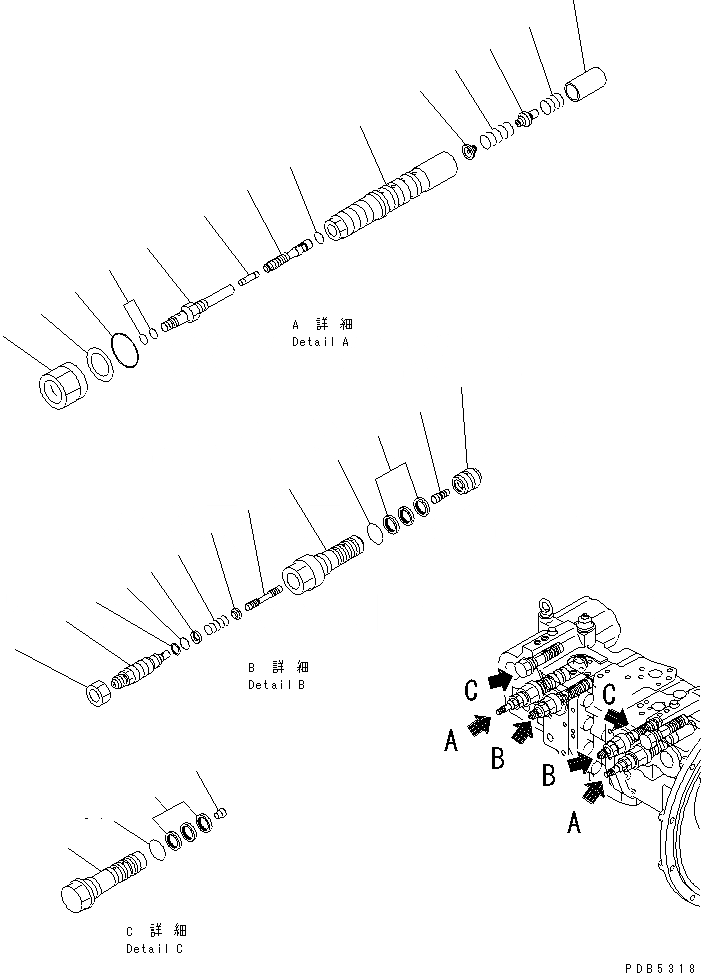

Запчасти Komatsu PC228USLC-1 ОСНОВН. НАСОС (8/9) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

708-2L-00413

PUMP ASS'Y

|1

708-2L-00411

PUMP ASS'Y

|1

708-2L-04523

VALVE ASS'Y,PC

|1

708-2L-04522

VALVE ASS'Y,PC

1

708-2L-28114

SLEEVE

|1

708-2L-28113

SLEEVE

2

708-2L-28470

PIN

3

708-2L-28253

SPOOL

4

708-2L-28231

SEAT

5

708-2L-28190

SPRING

6

708-2L-28221

SEAT

7

708-2L-28380

SPRING

8

708-2L-28122

PISTON

9

708-2L-28262

PLUG

10

708-2L-23940

O-RING

11

708-1W-25351

WASHER

|11

708-1W-25350

WASHER

12

708-2L-28280

NUT

13

708-1W-28920

O-RING

14

07000-B1009

O-RING

|15

708-2L-04713

VALVE ASS'Y,LS

15

708-2L-28510

SLEEVE

16

708-2L-28620

SPOOL

17

708-2L-28540

PISTON

18

708-2L-28570

SLEEVE

19

708-1W-25591

SEAT

20

708-1W-25550

SPRING

21

708-1W-25580

SEAT

22

708-2L-24680

SEAL

23

708-2L-28560

PLUG

24

07000-B2010

O-RING

25

07001-02010

RING

26

01583-11811

NUT

27

708-1W-28910

O-RING

|28

708-2L-04991

PLUG SUB ASS'Y

28

706-86-51180

PLUG

29

708-2L-28892

PLUG

30

708-2L-24680

SEAL

31

708-1W-28910

O-RING
