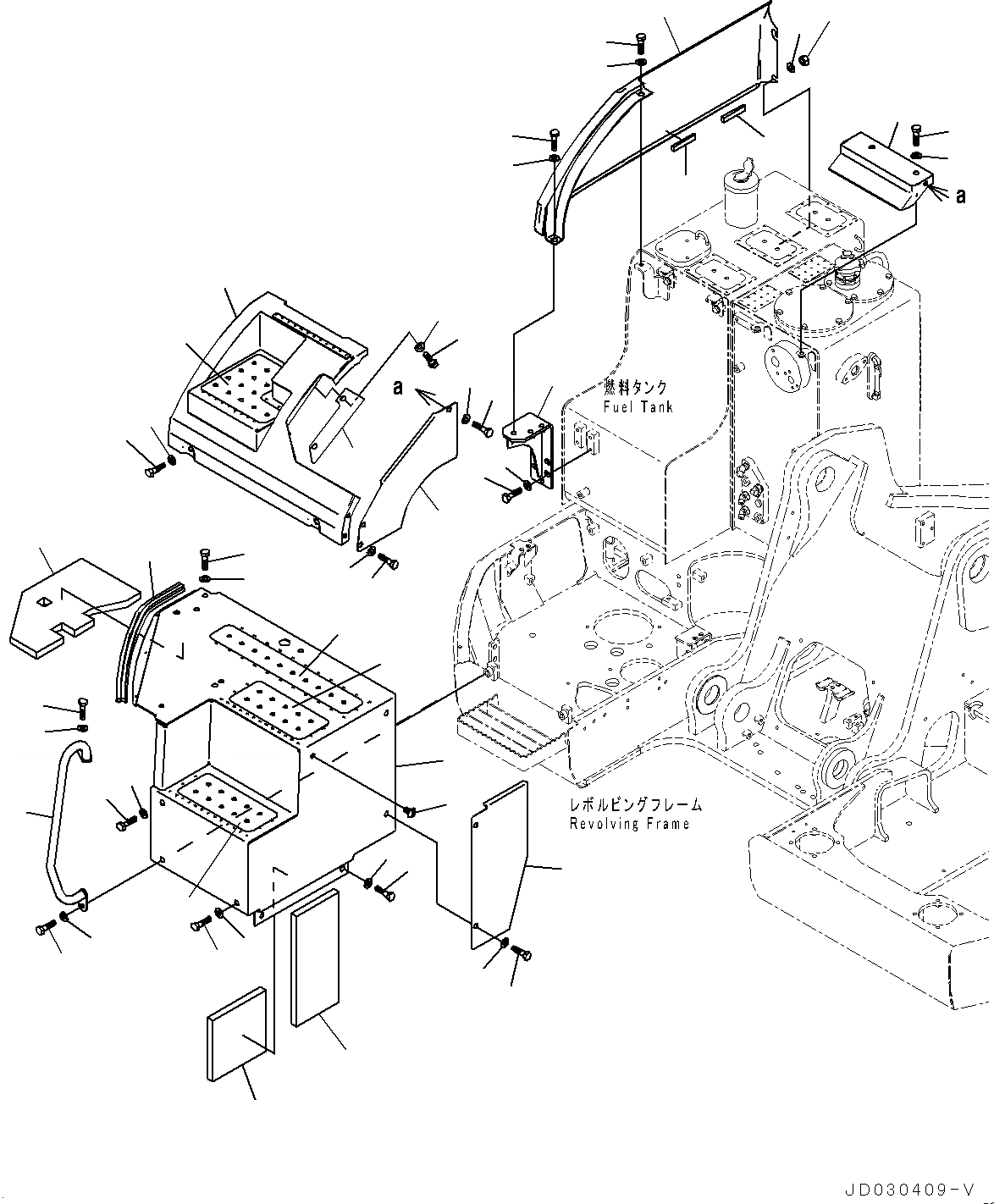

Запчасти Komatsu PC228US-8 ПЕРЕДН. COVER, КРЫШКА(/) (№-) ПЕРЕДН. COVER, С РУКОЯТЬ ANTI-DROP КЛАПАН

|$0

22U-54-35480

Cover Assembly

1

Cover

2

22U-54-38131

Sheet

3

22U-54-33731

Sheet

4

22U-54-33741

Sheet

5

22U-54-24331

Seal

6

22U-54-24661

Pipe

7

01010-81230

Bolt

8

01643-31232

Washer

9

207-00-76250

Plate

10

20Y-00-42130

Plate

11

22U-54-35360

Cover

12

01010-81230

Bolt

13

01643-31232

Washer

14

22L-46-12150

Cap

15

01010-81250

Bolt

16

01643-31232

Washer

|$17

22U-54-35460

Cover Assembly

17

Cover

18

22U-54-35350

Cover

19

01010-81230

Bolt

20

01643-31232

Washer

21

22U-00-27780

Plate

22

01010-81230

Bolt

23

01643-31232

Washer

24

22U-54-33840

Cover

25

01010-81230

Bolt

26

01643-31232

Washer

26

22U-54-33761

Cover

27

Cover

28

22U-54-24490

Sheet

29

01010-81230

Bolt

30

01643-31232

Washer

31

01580-11210

Nut

32

175-54-34170

Washer

33

22U-54-33641

Bracket

34

01010-81230

Bolt

35

175-54-34170

Washer

36

22U-54-33590

Cover

37

01010-81230

Bolt

38

01643-31232

Washer
