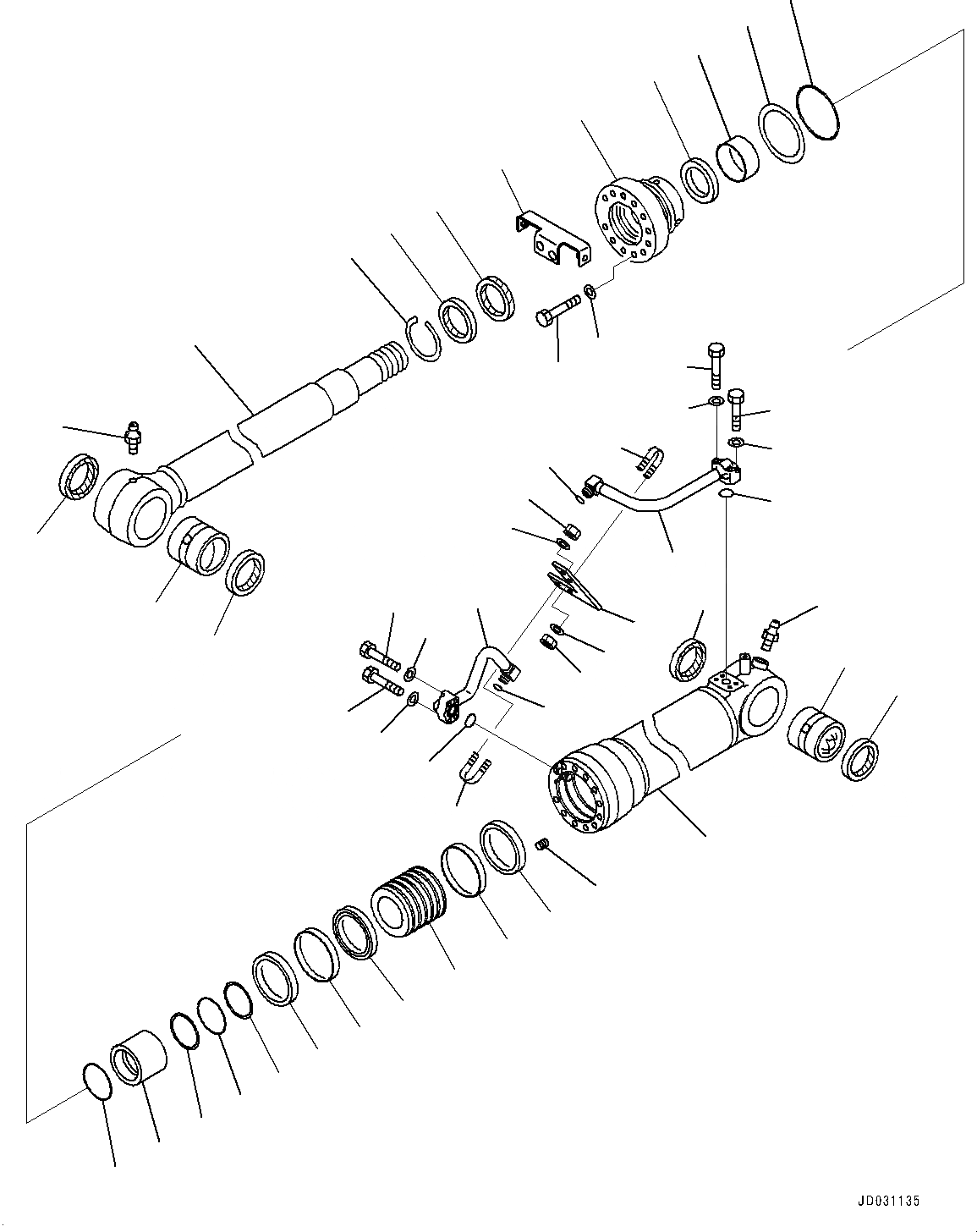

Запчасти Komatsu PC228US-8 ЦИЛИНДР ОТВАЛА, ПРАВ. (№-) ЦИЛИНДР ОТВАЛА

|$0

22U-63-02560

Cylinder Assembly

1

22U-63-92240

Cylinder

2

22U-63-92120

Rod, Piston

3

707-76-90130

Bushing

4

07145-00090

Seal, Dust

5

07020-00000

Fitting, Grease

6

707-76-10130

Bushing

7

07145-00100

Seal, Dust

8

07020-00000

Fitting, Grease

9

707-27-14920

Head, Cylinder

10

07179-13114

Ring, Snap

11

707-56-10740

Seal, Dust

12

707-52-90781

Bushing

13

707-51-10030

Packing, Rod

14

707-51-10640

Ring, Buffer

15

07000-15130

O-ring

16

707-35-91420

Ring, Back-up

17

01010-81875

Bolt

18

707-41-11840

Washer

19

707-88-32240

Bracket

20

707-36-14410

Piston

21

707-44-14180

Ring, Piston

22

707-39-14820

Ring, Wear

23

707-44-14910

Ring

24

07000-15090

O-ring

25

07001-05090

Ring, Back-up

26

01310-01216

Screw

27

707-81-10150

Collar

28

07000-15100

O-ring

29

707-86-68470

Tube,R.H.

30

02896-11015

O-ring

31

707-86-68490

Tube,R.H.

32

02896-11015

O-ring

33

07372-21060

Bolt

34

01643-51032

Washer

35

07372-21045

Bolt

36

01643-51032

Washer

37

07000-13030

O-ring

38

707-88-31520

Plate

39

07283-32738

Clip, Pipe

40

01643-31032

Washer

41

01597-01009

Nut
