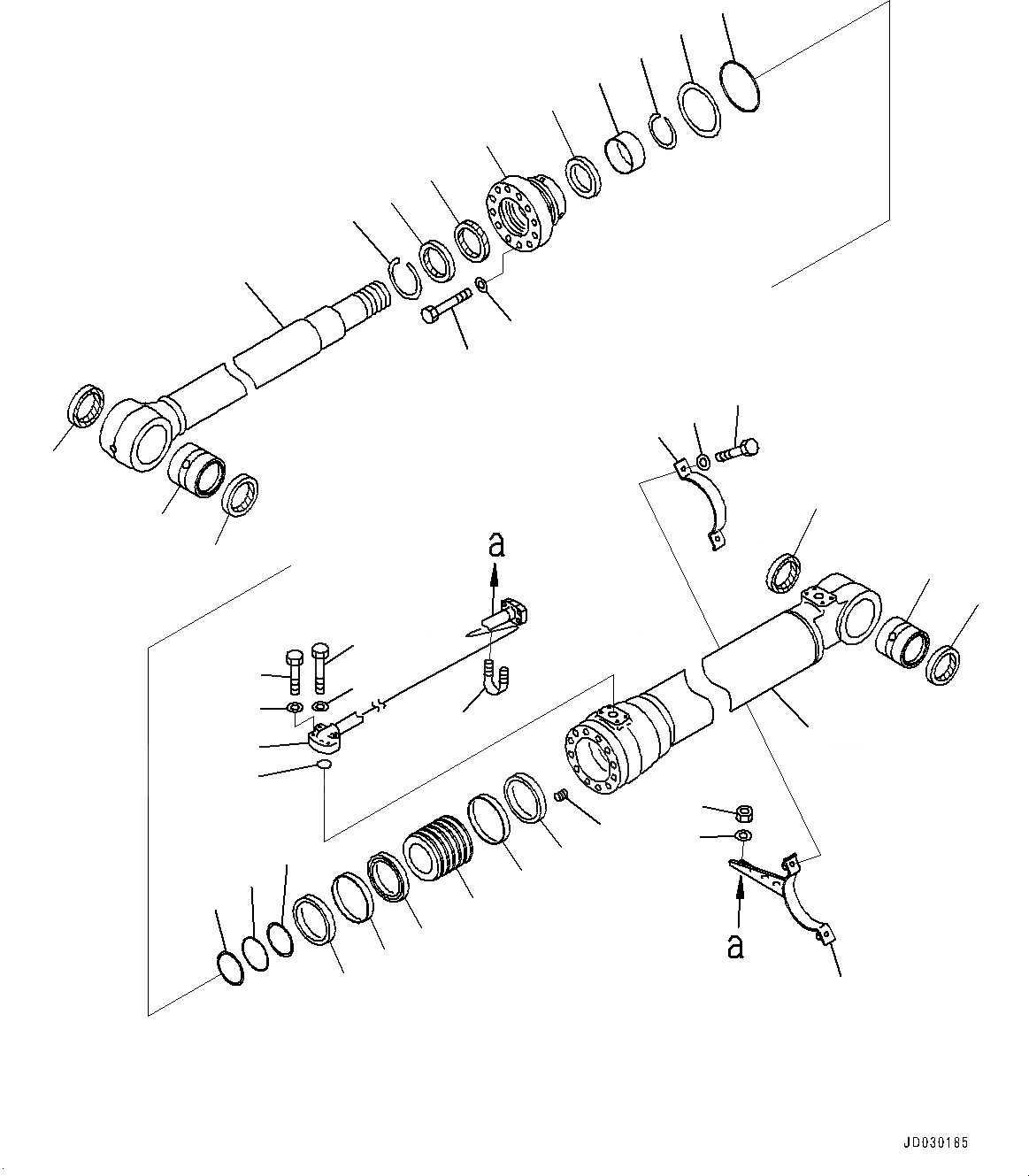

Запчасти Komatsu PC228US-8 ЦИЛИНДР СТРЕЛЫ, ЛЕВ. (№-) ЦИЛИНДР СТРЕЛЫ, С ANTI-DROP КЛАПАН

|$0

707-01-0CE10

Cylinder Group

1

707-13-12960

Cylinder

2

707-58-85480

Rod

3

707-76-70651

Bushing

4

07145-00070

Seal, Dust, (Kit : K04)

5

707-76-80431

Bushing

6

07145-00080

Seal, Dust, (Kit : K04)

7

707-27-12650

Head, Cylinder

8

707-56-85740

Seal, Dust, (Kit : K04)

9

07179-13099

Ring, Snap

10

707-51-85030

Packing, Rod, (Kit : K04)

11

707-51-85650

Ring, Buffer, (Kit : K04)

12

707-52-90611

Bushing

13

707-35-91220

Ring, Back-up, (Kit : K04)

14

07000-15110

O-ring, (Kit : K04)

15

01010-81670

Bolt

16

01643-51645

Washer

17

707-75-85110

Ring, Snap

18

707-36-12851

Piston

19

707-44-12150

Ring, Piston, (Kit : K04)

20

707-39-12140

Ring, Wear, (Kit : K04)

21

707-44-12911

Ring

22

07000-15075

O-ring, (Kit : K04)

23

707-35-90930

Ring, Back-up, (Kit : K04)

24

01310-01216

Screw

25

707-86-68870

Tube,L.H.

26

707-88-28010

Bracket,L.H.

27

07372-21060

Bolt

28

01643-51032

Washer

29

07372-21045

Bolt

30

01643-51032

Washer

31

707-88-21620

Band

32

07000-13030

O-ring, (Kit : K04)

33

07372-21035

Bolt

34

01643-51032

Washer

35

07283-32738

Clip, Pipe

36

01597-01009

Nut

37

01643-31032

Washer
