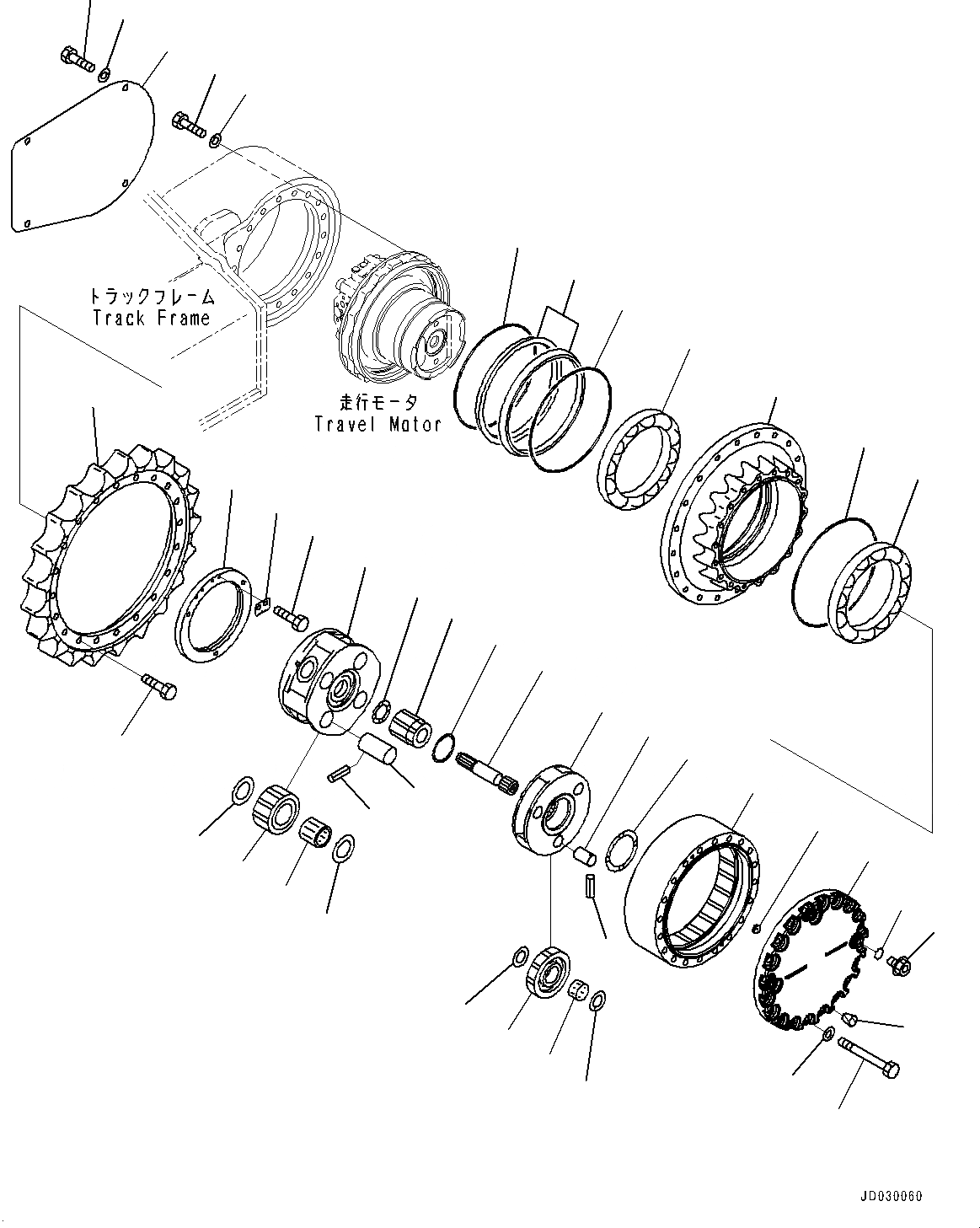

Запчасти Komatsu PC228US-8 КОНЕЧНАЯ ПЕРЕДАЧА (№-) КОНЕЧНАЯ ПЕРЕДАЧА

|$0

22U-27-00141

Final Drive Assembly

|$1

22U-27-00140

Final Drive Assembly

|$2

150-27-00410

Floating Seal Assembly

1

Seal

2

O-ring

3

22U-27-21182

Hub

4

20Y-27-22230

Bearing

5

22U-27-21220

O-ring

6

20Y-27-22261

Lock

7

20Y-27-22270

Lock

8

01010-81020

Bolt

9

22U-27-21171

Carrier

9

22U-27-21170

Carrier

10

22U-27-21140

Gear

11

20Y-27-22220

Bearing

12

20Y-27-21250

Washer, Thrust

13

22U-27-21230

Pin

14

20Y-27-21290

Pin

15

20Y-27-13310

Washer, Thrust

16

22U-27-21130

Gear

17

22U-27-21210

Washer, Thrust

18

22U-27-21153

Gear

19

22U-27-21161

Carrier

20

22U-27-21120

Gear

21

20Y-27-22210

Bearing

22

22U-27-21240

Washer, Thrust

23

20Y-27-21220

Pin

24

20Y-27-21280

Pin

25

22U-27-21110

Shaft

26

20Y-27-21310

Washer

27

22U-27-21192

Cover

28

20Y-27-22250

Button

29

20Y-27-13281

Bolt

30

01643-31645

Washer

31

07049-01012

Plug

32

07044-12412

Plug

33

07002-02434

O-ring

34

20Y-27-11582

Sprocket

35

20Y-27-11561

Bolt

36

01010-61660

Bolt

37

01643-31645

Washer

38

20Y-30-21192

Cover

38

20Y-30-21191

Cover

39

01010-81230

Bolt

40

01643-31232

Washer
