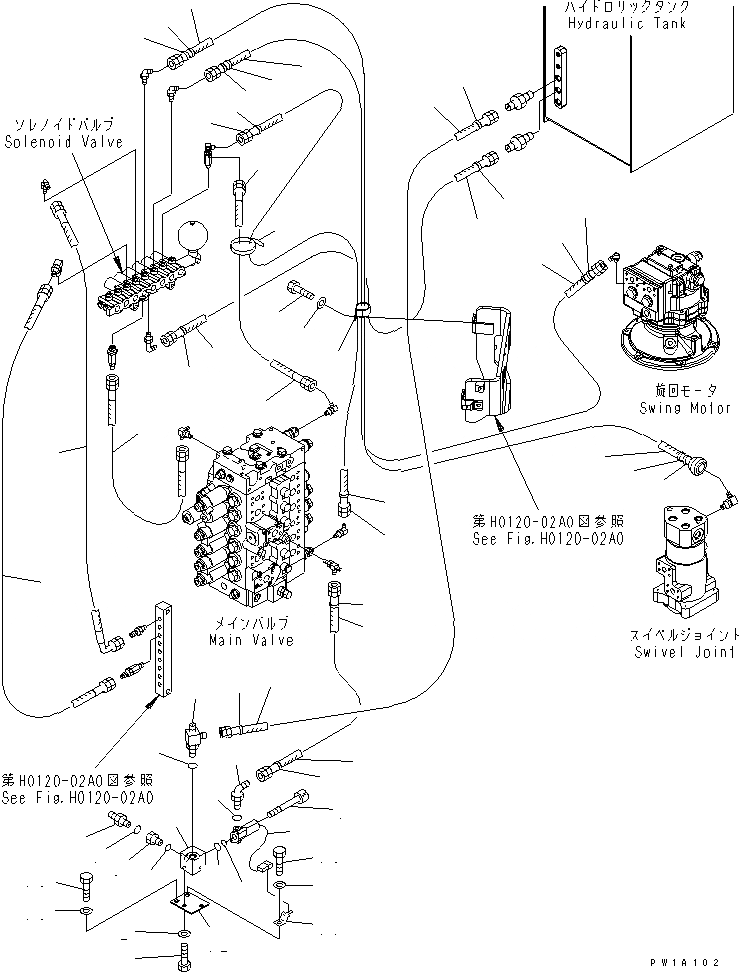

Запчасти Komatsu PC228US-3T-YT СОЛЕНОИДНЫЙ КЛАПАН (EPC) ( АКТУАТОР)(№-) ГИДРАВЛИКА

|1

22U-62-21500

VALVE ASS'Y

1

01010-81020

BOLT

2

01643-31032

WASHER

3

07000-12011

O-RING

4

07002-11423

O-RING

5

07002-12034

O-RING

6

07230-20210

UNION

7

203-60-62220

BOLT

8

20Y-62-21940

FILTER ASS'Y

9

BLOCK

10

21T-62-77320

TEE

11

21Y-62-17810

ELBOW

12

22U-62-21890

PLATE

13

700-93-11320

O-RING

14

702-21-07010

VALVE ASS'Y

15

01010-81225

BOLT

16

01643-31232

WASHER

17

08053-01510

CLIP

18

01010-81220

BOLT

19

01643-31232

WASHER

20

07184-00204

HOSE¤ 400MM

21

22U-62-26430

HOSE

|21

07184-00229

HOSE

22

07184-00318

HOSE¤ 1800MM

23

08034-00414

BAND

24

20Y-62-22790

BAND¤ RED

25

20Y-62-22810

BAND¤ YELLOW

26

20Y-62-22820

BAND¤ BLUE

27

20Y-62-22850

BAND¤ GREEN

28

20Y-62-22860

BAND¤ BROWN

29

20Y-62-23981

HOSE

30

22T-61-11710

HOSE

31

07184-00207

HOSE

32

07184-00313

HOSE

33

20Y-62-22840

BAND¤ BLACK

34

20Y-62-22850

BAND¤ GREEN

35

07184-00205

HOSE

36

22U-62-22660

HOSE ASS'Y

37

20Y-62-15951

CLIP

38

01010-81225

BOLT

39

01643-31232

WASHER
