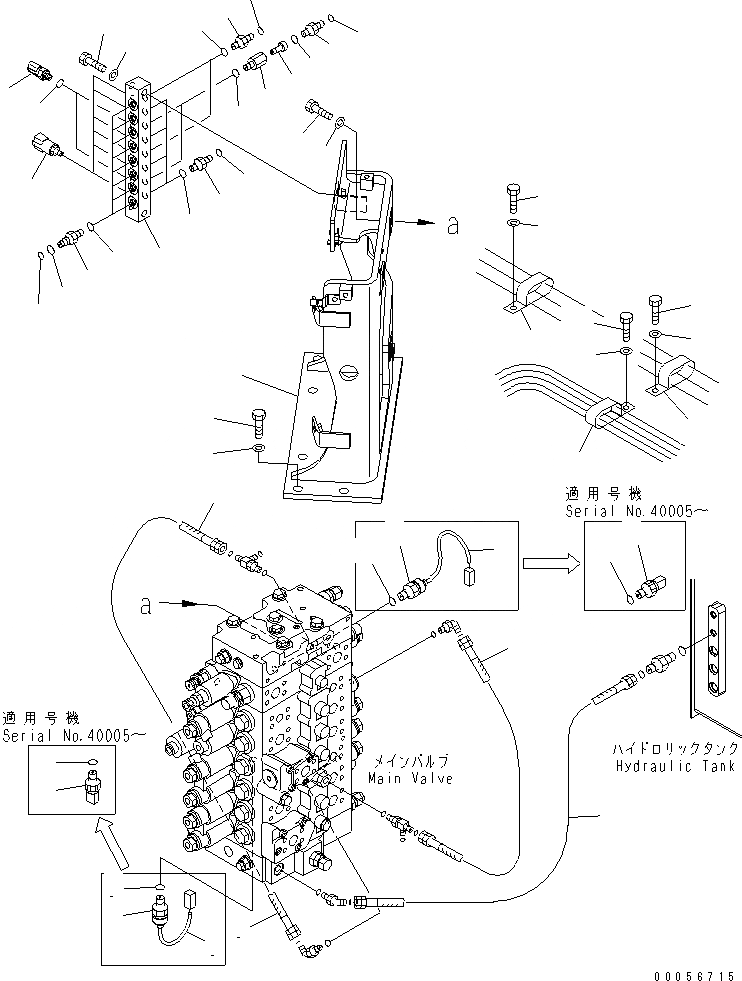

Запчасти Komatsu PC228US-3E0 ОСНОВН. КЛАПАН (ШЛАНГИ) ( АКТУАТОР)(№-) ГИДРАВЛИКА

1

22U-62-28511

HOSE

1

22U-62-28510

HOSE ASS'Y

2

208-62-71670

HOSE, 550MM

3

22U-62-28520

HOSE

4

7861-93-1811

SENSOR

4

7861-93-1650

SENSOR

5

07002-11823

O-RING

6

7861-93-1780

WIRING HARNESS

7

22U-62-26942

BRACKET

7

22U-62-26941

BRACKET

8

01010-81650

BOLT

9

01643-31645

WASHER

10

01010-81650

BOLT

11

01643-31645

WASHER

12

206-06-61130

SWITCH

|$25

207-60-71400

VALVE ASS'Y

13

20Y-60-11750

POPPET

14

BODY

15

21W-62-43930

NIPPLE

16

07002-11423

O-RING

17

20Y-62-16630

NIPPLE

18

201-60-11390

O-RING

19

20Y-62-19560

O-RING

20

22U-60-27160

BLOCK

21

7861-93-1840

SENSOR

22

07000-12011

O-RING

23

02781-0021D

UNION

24

02781-0031D

UNION

25

02896-11008

O-RING

26

02896-11009

O-RING

27

07002-11423

O-RING

28

01010-81260

BOLT

29

01643-31232

WASHER

30

196-911-3310

CLIP

31

01010-81225

BOLT

32

01643-31232

WASHER

33

144-A74-1460

CLIP

34

01010-81225

BOLT

35

01643-31232

WASHER

36

04435-52112

CLIP

37

01010-81225

BOLT

38

01643-31232

WASHER
