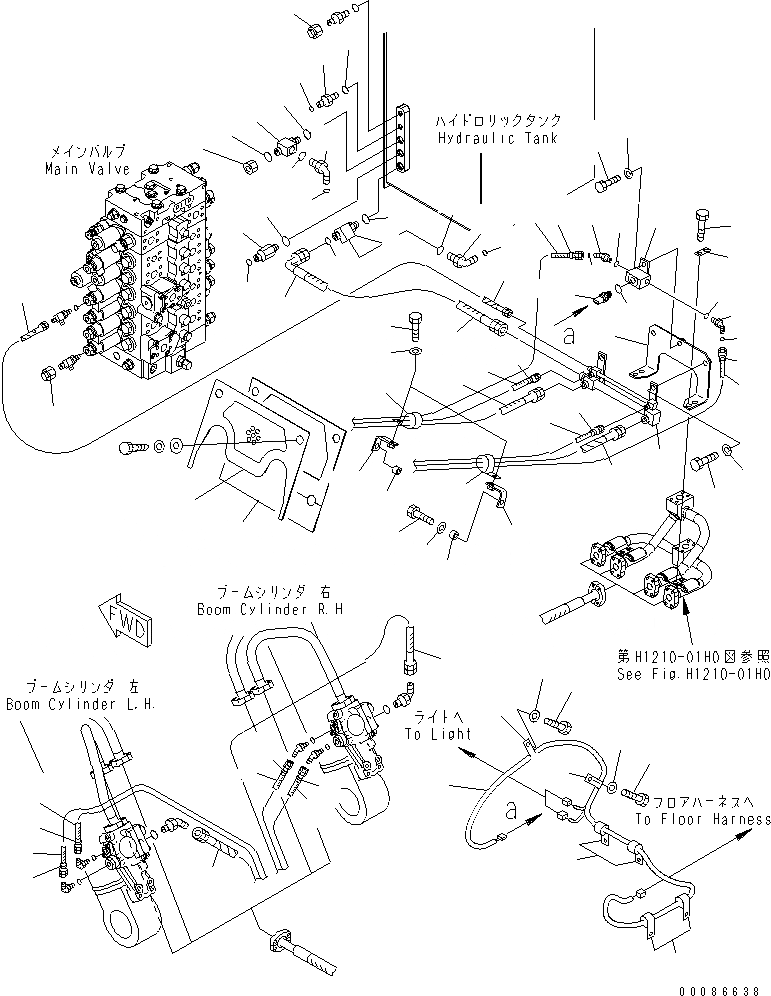

Запчасти Komatsu PC228US-3E0 РУКОЯТЬ И КЛАПАН ПЕРЕГРУЗКИ СТРЕЛЫ (ЕС. СПЕЦ-Я.)(№-) ГИДРАВЛИКА

1

02762-00410

HOSE, 1000MM

2

02756-00206

HOSE

3

02760-00206

HOSE

4

20Y-62-22790

BAND, RED

5

20Y-62-22850

BAND, GREEN

6

02762-004A5

HOSE

7

02756-00211

HOSE

8

02760-00210

HOSE, 1000MM

9

20Y-62-22790

BAND, RED

10

20Y-62-22850

BAND, GREEN

11

207-62-51270

BRACKET

12

01010-81250

BOLT

13

01643-31232

WASHER

14

195-33-11220

SPACER

15

04434-53212

CLIP

16

01010-81225

BOLT

17

01643-31232

WASHER

18

22U-62-26491

HOSE ASS'Y

19

02763-005A6

HOSE

20

22U-62-29440

TUBE

21

01010-81235

BOLT

22

01643-31232

WASHER

23

22U-62-27280

BLOCK

24

01010-81230

BOLT

25

01643-31232

WASHER

26

7861-93-1811

SENSOR

27

07002-11823

O-RING

28

02783-10210

ELBOW

29

02896-11008

O-RING

30

07002-11423

O-RING

31

22U-62-27290

BRACKET

32

01010-81260

BOLT

33

20Y-62-13450

PLATE

34

22U-06-27491

HARNESS

35

04434-51012

CLIP

36

01010-81220

BOLT

37

01643-31232

WASHER

38

02781-0021D

UNION

39

02896-11008

O-RING

40

07002-11423

O-RING

41

02789-00210

PLUG

42

22U-62-26570

TEE

43

02896-11018

O-RING

44

02789-00628

PLUG

45

07002-12034

O-RING

46

02782-10315

ELBOW

47

02896-11009

O-RING

48

07002-12034

O-RING

49

22U-62-26680

UNION

50

02896-11009

O-RING

51

07002-12034

O-RING

52

22U-62-26580

TEE

53

02896-11015

O-RING

54

02782-10315

ELBOW

55

02896-11009

O-RING

56

07002-12034

O-RING

57

02789-00315

PLUG

|$78

22U-54-27190

COVER

58

COVER

59

22U-54-27180

SHEET
