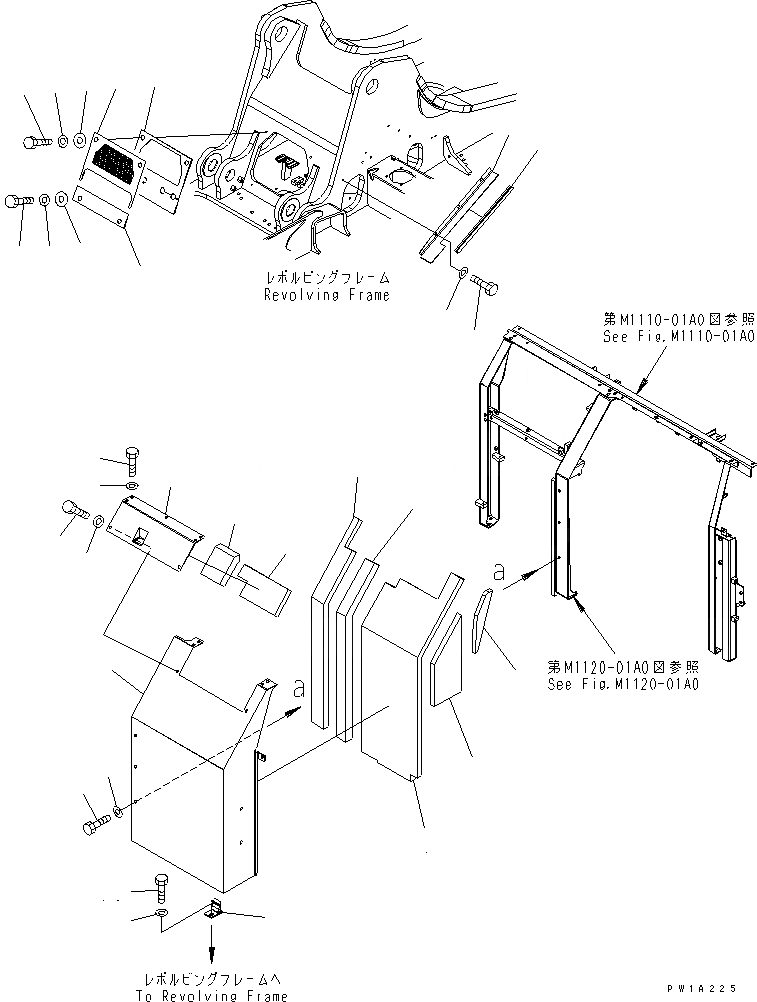

Запчасти Komatsu PC228US-3-YB ПЕРЕГОРОДКА. (COVER) (/) (YELНИЗ.)(№-) ЧАСТИ КОРПУСА

|1

22U-54-23310

COVER

1

COVER

2

22U-54-22781

SHEET

3

22U-54-22811

SHEET

4

22U-54-22831

SHEET

5

22U-54-22850

SHEET

6

22U-54-23250

SHEET

|7

22U-54-23321

COVER

|7

22U-54-23320

COVER

7

COVER

|7

COVER

8

22U-54-22861

SHEET

9

22U-54-22991

SHEET

10

01010-81220

BOLT

11

01643-31232

WASHER

12

01010-81220

BOLT

13

01643-31232

WASHER

14

20Y-54-12320

CATCH

15

01010-81230

BOLT

16

01643-31232

WASHER

|17

22U-54-23330

COVER

17

PLATE

18

22U-54-22691

SHEET

19

01010-81230

BOLT

20

01643-31232

WASHER

21

205-54-76411

COLLAR

22

22U-54-22680NK

PLATE

23

01010-81230

BOLT

24

01643-31232

WASHER

25

205-54-76411

COLLAR

26

22U-54-23190NK

COVER

27

22U-54-11960

SEAL

28

01010-81230

BOLT

29

01643-31232

WASHER
