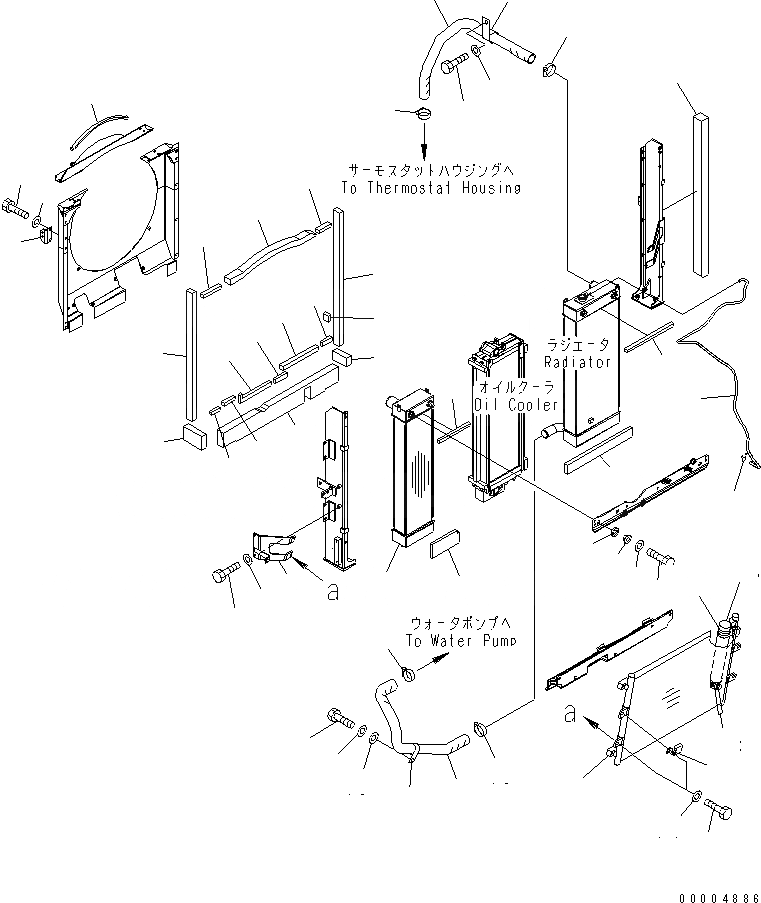

Запчасти Komatsu PC228US-3 ОХЛАЖД-Е (ПОСЛЕОХЛАДИТЕЛЬ¤ КОНДЕНСАТОР И ТРУБЫ) (АВТОМАТИЧ. КОНДИЦ. ВОЗДУХА) СИСТЕМА ОХЛАЖДЕНИЯ

1

22U-03-22510

BRACKET

2

01010-81025

BOLT

3

01643-31032

WASHER

4

22U-03-22440

BRACKET

5

01010-81020

BOLT

6

01643-31032

WASHER

7

22U-03-22143

AFTER COOLER

7

22U-03-22142

AFTER COOLER

7

22U-03-22141

AFTER COOLER

8

01010-81030

BOLT

9

01643-31032

WASHER

10

22U-03-22860

CUSHION

11

6738-61-4952

COLLAR

12

22U-979-1740

CONDENSER ASS'Y

12A

DK503712-8510

RECEIVER DRYER

12A

DK581520-9700

O-RING

12B

DK533066-5600

BRACKET

12C

DK580012-9000

BOLT

13

01010-80825

BOLT

14

01643-30823

WASHER

15

22B-979-1830

SENSOR

16

21K-03-71650

SHEET

17

22U-03-22540

SHEET

18

22U-03-22570

SHEET

19

22U-03-22620

SHEET

20

22U-03-22630

SHEET

21

22U-03-22640

SHEET

22

22U-03-22650

SHEET

23

22U-03-22670

SHEET

24

22U-03-22690

SHEET

25

22U-03-22710

SHEET

26

22U-03-22720

SHEET

27

22U-03-22730

SHEET

28

22U-03-22740

SHEET

29

22U-03-22750

SHEET

30

22U-03-22760

SHEET

31

22U-03-22770

SHEET

32

22U-03-22820

SHEET

33

22U-03-22830

SHEET

34

22U-03-22840

SHEET

35

22U-03-22850

SHEET

36

22U-03-22780

HOSE

37

206-03-43340

CLIP

38

22U-03-22430

SHEET

39

22U-03-22250

HOSE

40

07289-00055

CLAMP

41

20Y-62-15960

CLIP

42

01010-81225

BOLT

43

01643-31232

WASHER

44

208-62-38370

CLIP

45

22U-03-22260

HOSE

46

01010-81030

BOLT

47

01643-31032

WASHER

48

560-43-15220

WASHER

49

07289-00055

CLAMP

50

07289-00070

CLAMP
