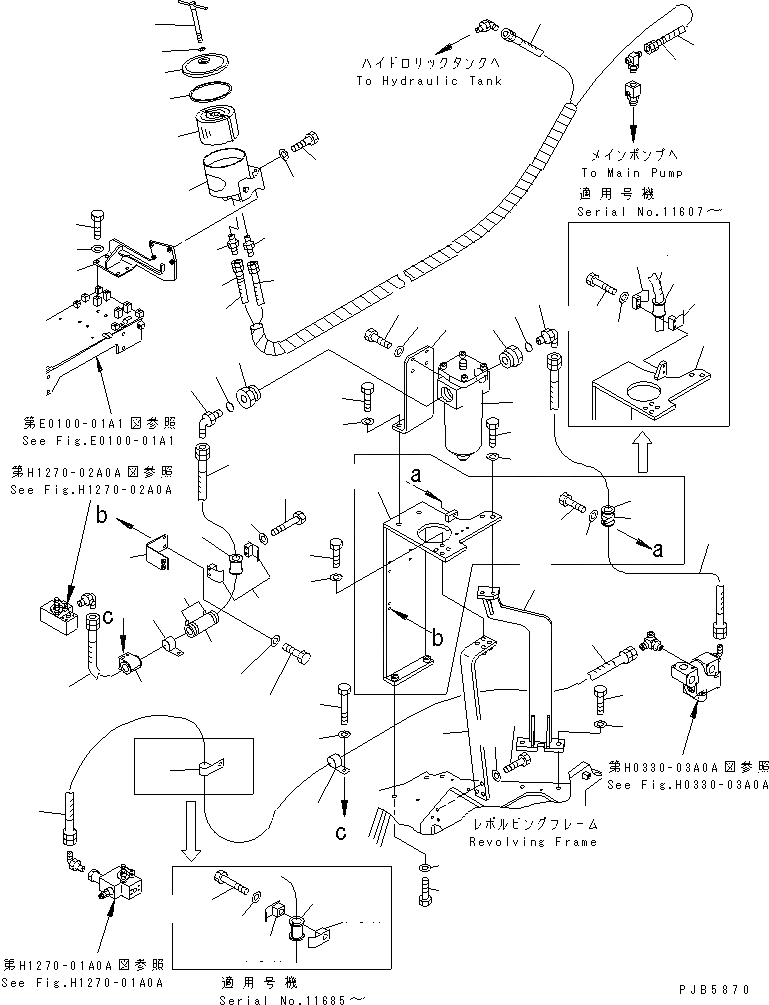

Запчасти Komatsu PC228US-1T НАВЕСНОЕ ОБОРУД-Е ( АКТУАТОР) (ВОЗВРАТ.) ГИДРАВЛИКА

1

22U-62-12900

FILTER ASS'Y

1

22U-62-12730

ELEMENT

2

01010-81235

BOLT

3

01643-31232

WASHER

4

22U-62-12890

NIPPLE

5

07235-11034

ELBOW

6

07002-13334

O-RING

7

22U-62-11791

BRACKET

8

01010-81655

BOLT

9

01643-31645

WASHER

10

22U-62-11845

BRACKET

10

22U-62-11844

BRACKET

11

01010-81655

BOLT

12

01643-31645

WASHER

13

22U-62-12881

BRACKET

14

01010-81640

BOLT

15

01010-81655

BOLT

16

01643-31645

WASHER

17

07624-20622

HOSE

17

07102-20622

HOSE

18

08036-03014

CLIP

18

08035-03014

CLIP

18A

07094-10620

CLAMP

18B

07095-00627

CUSHION

18C

01010-81275

BOLT

18D

01643-31232

WASHER

19

07102-21025

HOSE

19

07102-21027

HOSE

19A

04434-53412

CLIP

19B

205-62-53780

COVER

19C

08034-00536

BAND

20

07102-21009

HOSE

21

07094-11024

CLAMP

22

07095-01035

CUSHION

23

01010-81275

BOLT

23A

01010-81280

BOLT

24

01643-31232

WASHER

24A

22U-62-14410

BRACKET

24B

01010-81225

BOLT

24C

01643-31232

WASHER

25

07094-11024

CLAMP

25

209-62-39640

CLIP

26

07095-01035

CUSHION

27

01010-81275

BOLT

27

01010-81225

BOLT

28

01643-31232

WASHER

28

01643-31232

WASHER

29

22U-62-11811

BRACKET

30

01010-81230

BOLT

31

01643-31232

WASHER

32

208-62-67410

FILTER ASS'Y

33

208-62-67430

ELEMENT

34

208-62-67441

SEAL

34

208-62-67440

SEAL,WASHER

35

208-62-67450

PACKING

36

01010-81025

BOLT

37

01643-31032

WASHER

38

566-35-14340

NIPPLE

39

07238-10315

CONNECTOR

40

22U-62-12850

HOSE, 2800MM

40

22U-62-12851

HOSE, 3600MM

41

22U-62-12870

HOSE, 1900MM

42

20Y-62-22790

BAND, RED

43

22U-62-13451

BRACKET

44

01010-81655

BOLT

45

01643-31645

WASHER

46

01010-81645

BOLT

47

01643-31645

WASHER
