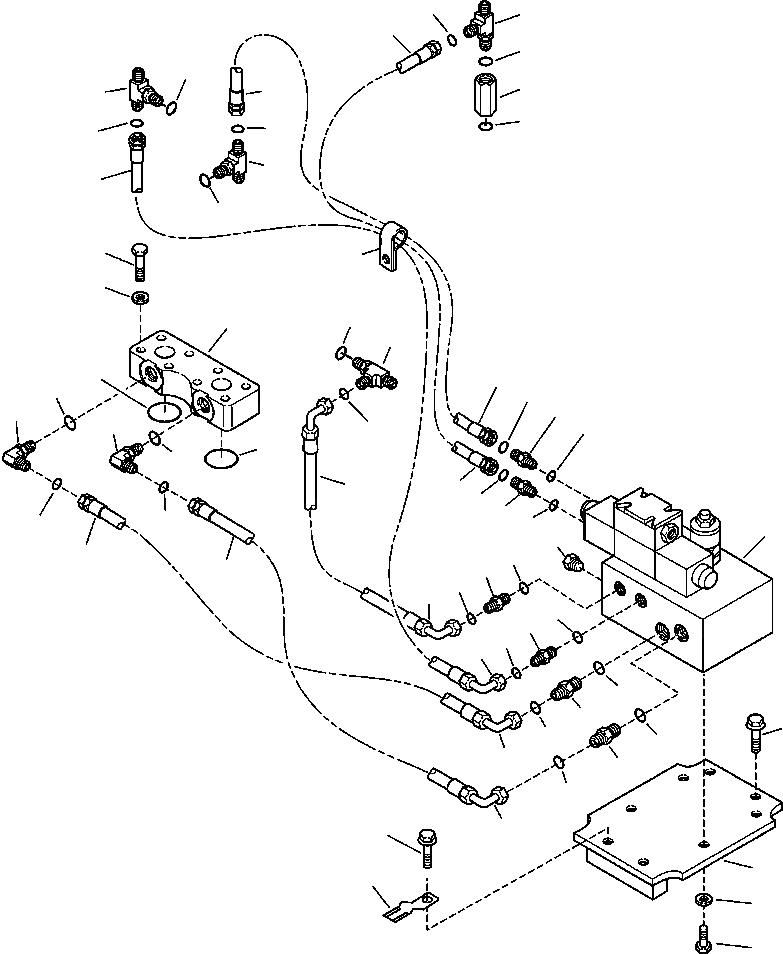

Запчасти Komatsu PC220LL-7L FIG. H8-A ГИДРОЛИНИЯ - SOFT ПОВОРОТН. (SSW)СОЕДИНИТЕЛЬН. ЧАСТИ ГИДРАВЛИКА

1

20Y-60-A1510

VALVE ASSEMBLY (SSW)

2

444691

PLUG - 1/4 NPT

3

20Y-62-A1411

MOUNT PLATE, SSW

4

02010-70625

BOLT

5

01643-31032

WASHER

6

11Y-62-12120

NIPPLE

7

414-62-11480

O-RING

8

02896-11008

O-RING

9

WB0099

FITTING STR. ORFS

10

TL3995

O-RING

11

02896-61009

O-RING

12

20Y-62-A1421

HOSE (SHUTTLE TO M/V) YELLOW BAND

13

20Y-62-A1431

HOSE (SHUTTLE TO M/V) BLUE BAND

14

20Y-62-A1441

HOSE (SHUTTLE TO SWING) WHITE BAND

15

20Y-62-A1451

HOSE (SHUTTLE TO SWING) GREEN BAND

16

20Y-62-A1471

HOSE (SHUTTLE TO TANK) BROWN BAND

17

02760-00223

HOSE (SHUTTLE TO PUMP)

20

581-04-22290

CLIP

21

08193-21012

CLIP

22

01024-81260

BOLT, SEMS

23

20Y-62-A1490

BLOCK, MANIFOLD

24

07000-13032

O-RING

25

02782-10315

ELBOW

26

02896-61009

O-RING

27

07002-62034

O-RING

28

195-78-63210

BOLT

29

01643-51032

WASHER

30

11Y-62-12250

TEE

31

07002-11423

O-RING

32

20Y-62-22160

ADAPTER

33

11Y-62-12230

TEE
