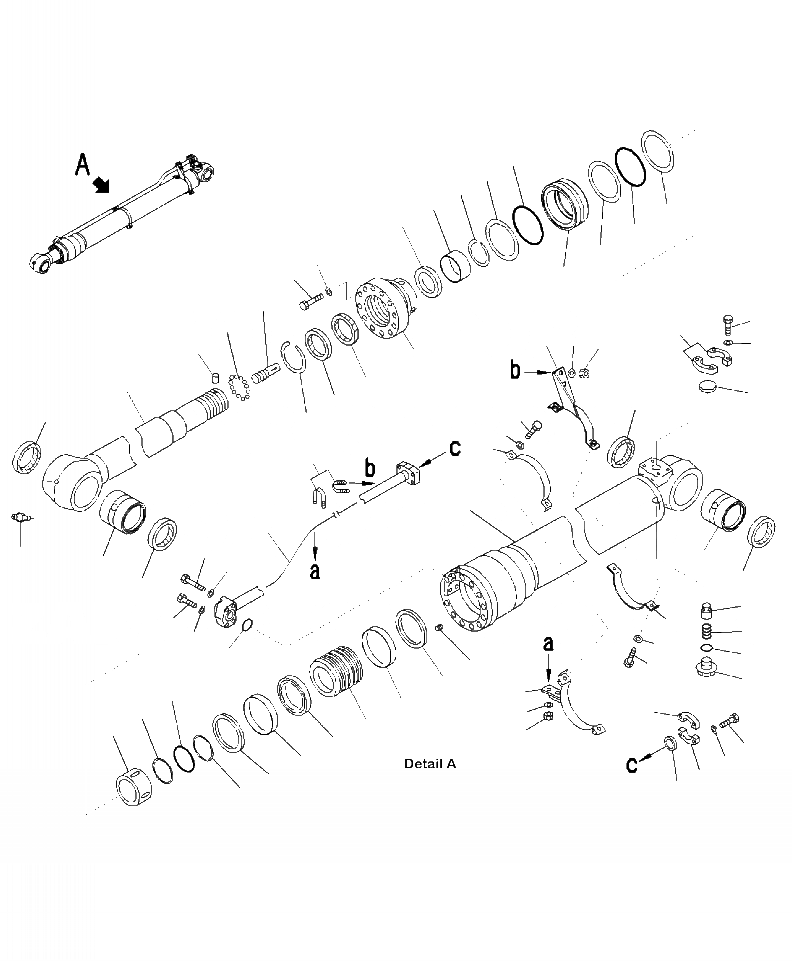

Запчасти Komatsu PC220LC-8 T-A ЦИЛИНДР РУКОЯТИ РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

707-01-0H700

CYLINDER ASSEMBLY

1

707-13-14820

CYLINDER

2

707-76-80431

BUSHING

3

07145-00080

SEAL, DUST

4

721-58-10070

ROD, PISTON

5

707-27-14690

CYLINDER HEAD

6

07179-13114

RING, SNAP

7

176-63-56170

SEAL, DUST

8

707-52-90781

BUSHING

9

707-75-10160

RING, SNAP

10

707-51-10030

PACKING

11

07000-15130

O-RING

12

707-35-91420

RING, BACK-UP

13

707-51-10650

RING

14

01010-61875

BOLT

15

707-41-11840

WASHER

16

707-36-14650

PISTON

17

707-44-14150

RING, PISTON

18

707-39-14110

RING, WEAR

19

707-44-14910

RING

20

707-71-71020

PLUNGER

21

07000-15090

O-RING

22

07001-05090

RING, BACK-UP

23

01310-21216

SCREW

24

707-71-80270

PLUNGER

25

07020-00000

FITTING, GREASE

26

707-71-34990

COLLAR

27

707-35-91420

RING, BACK-UP

28

07000-15130

O-RING

29

04260-00635

BALL

30

707-71-91270

CAP

31

707-83-13010

VALVE

32

07750-01628

SPRING

33

707-87-14070

PLUG

34

07002-12034

O-RING

35

707-86-67810

TUBE

36

07372-21060

BOLT

37

01643-51032

WASHER

38

07372-21045

BOLT

39

01643-51032

WASHER

40

07000-13030

O-RING

41

707-88-28090

BRACKET

42

707-88-28140

BAND

43

707-88-22630

BRACKET

44

707-88-21321

BAND

45

07372-21035

BOLT

46

01643-51032

WASHER

47

07283-32738

CLIP, PIPE

48

01597-01009

NUT

49

01643-31032

WASHER

50

707-88-33030

CAP

51

07371-30640

FLANGE, SPLIT

52

07372-21035

BOLT

53

01643-51032

WASHER

54

707-88-33040

CAP

55

07371-31049

FLANGE, SPLIT

56

07372-21035

BOLT

57

01643-51032

WASHER

|$58

707-98-58240

SERVICE KIT, ARM CYLINDER
