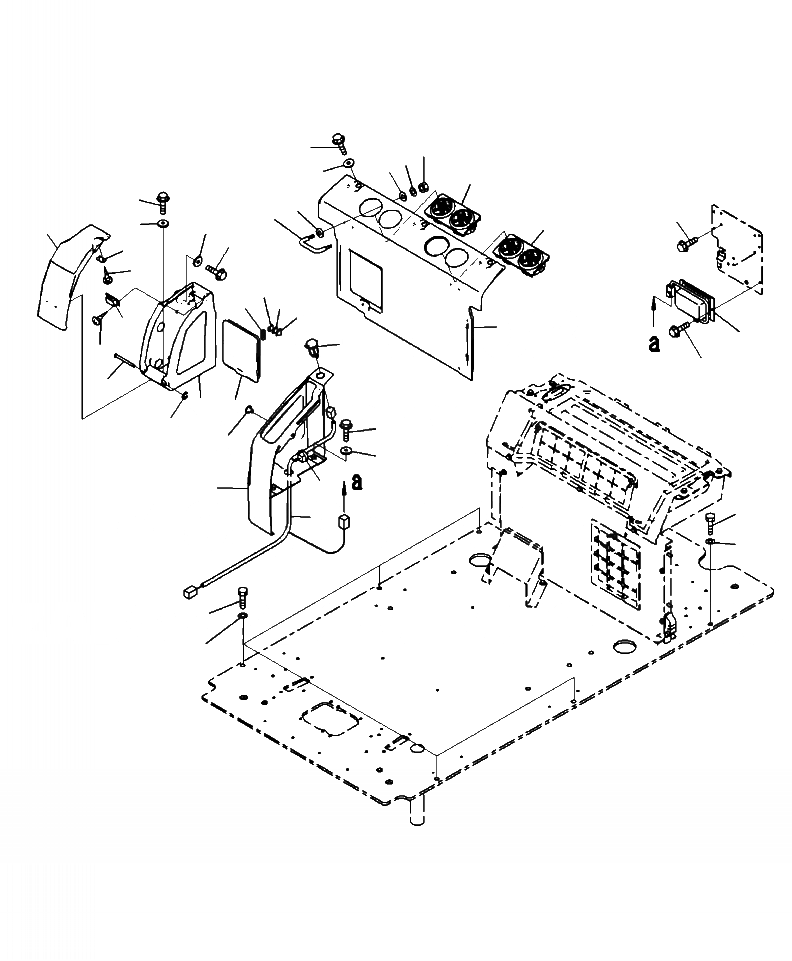

Запчасти Komatsu PC220LC-8 K8-A КАБИНА УПРАВЛ-Е СТОЙКАS И ЗАДН. WALL КРЫШКИ OPERATOR\XD S ОБСТАНОВКА И СИСТЕМА УПРАВЛЕНИЯ

|$0

20Y-53-13631

COVER ASSEMBLY, SPARE FUSE BOX

1

20Y-53-12361

COVER

2

22U-43-22340

PULLER, FUSE

3

08041-01000

FUSE, SPARE - 10 AMP.

4

08041-02000

FUSE, SPARE - 20 AMP.

5

08041-03000

FUSE, SPARE - 30 AMP.

6

20Y-53-12371

COVER, REAR WALL

7

208-53-12290

HOOK

8

01580-10403

NUT

9

01640-20408

WASHER

10

01601-20410

WASHER, SPRING

11

01435-40620

BOLT

12

20Y-53-12310

COLLAR

13

208-979-7560

GRILLE, REAR WALL

14

20Y-53-12381

COVER, CONTROL STAND - R.H.

15

09452-14503

CATCHER

16

01370-10308

SCREW

17

20Y-53-12391

COVER

18

208-53-12410

PLATE

19

01370-20308

SCREW

20

208-53-12320

PIN

21

208-53-12330

RING

22

01435-40616

BOLT

23

20Y-53-12310

COVER, CONTROL STAND - L.H.

24

20Y-53-12931

COVER

25

01435-40620

BOLT

26

20Y-53-12310

COLLAR

27

23D-950-4450

BUTTON

28

01435-00612

BOLT

|$29

20Y-53-12860

SPACER

29

22U-06-22251

CONVERTER, 24 V TO 12 V DC

30

01435-00610

BOLT

31

198-Z11-2640

SOCKET, OPTIONAL POWER SOURCE

32

20Y-06-41270

HARNESS, OPTIONAL POWER SOURCE

33

08034-20414

BAND

34

01010-81245

BOLT

35

01643-31232

WASHER
