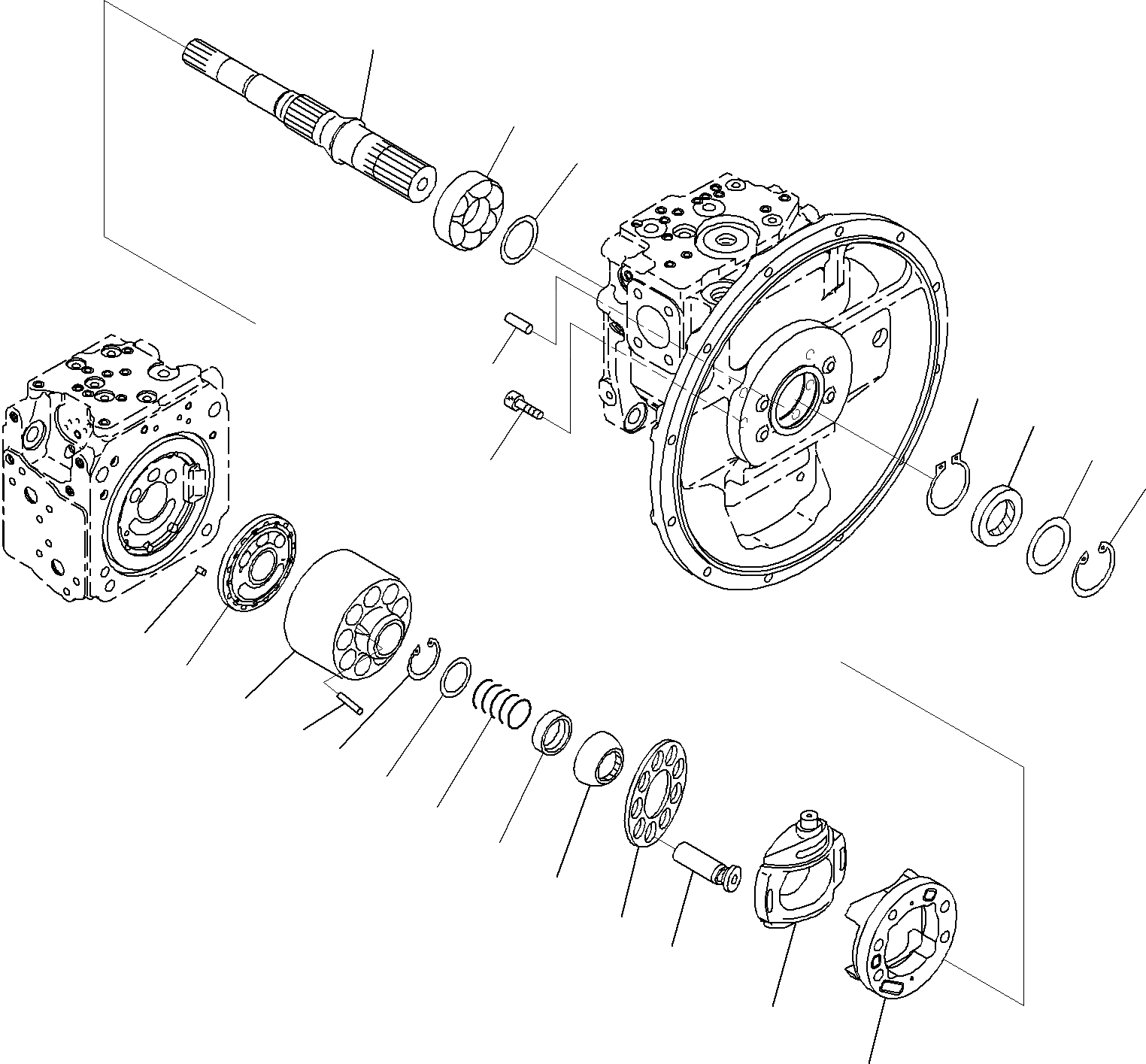

Запчасти Komatsu PC220LC-8 ОСНОВН. ПОРШЕНЬ НАСОС (/) ГИДРАВЛИКА

|1

708-2L-01600

Pump Subassembly

1

708-2L-32160

Shaft, Front

2

708-2L-32150

Bearing

3

708-2E-05040

Washer Kit

|3

Washer, T=3.1mm

|3

Washer, T=3.0mm

|3

Washer, T=2.9mm

|3

Washer, T=2.8mm

4

708-25-12790

Ring, Snap

5

708-25-52861

Seal, Oil

6

708-2L-22160

Spacer

7

04065-06825

Ring, Snap, for Hole Side

|8

708-2L-06470

Block Assembly, Front

8

Block, Cylinder

9

Plate, Valve

10

720-68-19610

Pin

11

04065-04818

Ring, Snap, Snap

12

708-2L-23131

Seat

13

708-2L-33160

Spring

14

708-7L-13140

Seat

15

708-2L-23351

Guide, Retainer

16

708-2L-23360

Pin

17

708-2L-33350

Retainer, Shoe

18

708-2L-33430

Piston Subassembly

|19

708-2L-06630

Cradle Assembly

19

Cradle

20

Cam, Rocker

21

04020-01228

Pin, Dowel

22

01252-61230

Bolt, Hexagon Socket Head
