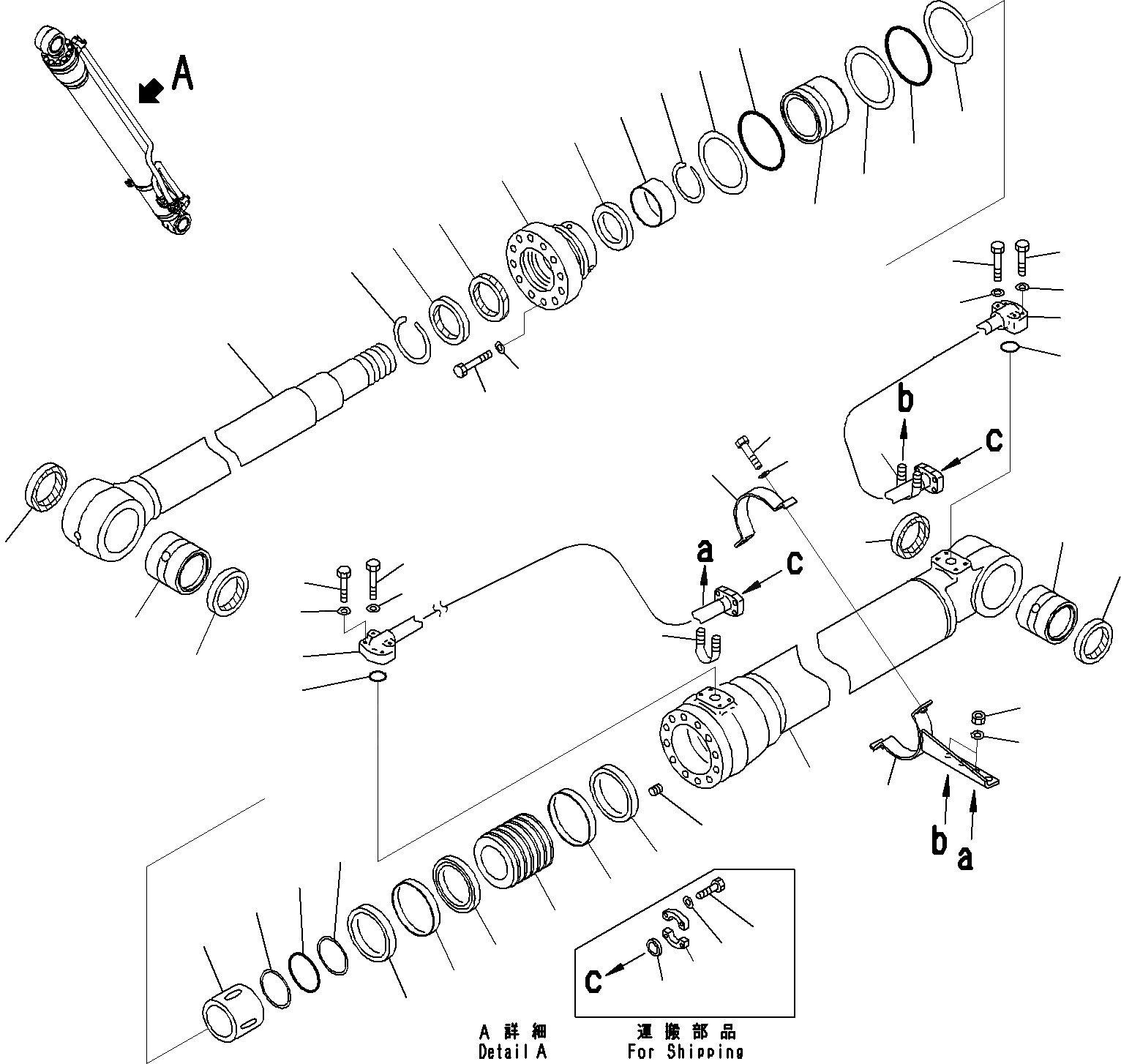

Запчасти Komatsu PC220LC-8 ЦИЛИНДР СТРЕЛЫ(/) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

707-01-XS820

Cylinder Group, RHS

|1

707-01-0H850

Cylinder Assembly

1

707-13-13920

Cylinder

2

707-76-80431

Bushing

3

07145-00080

Seal, Dust

4

707-58-95280

Rod, Piston

5

707-76-80431

Bushing

6

07145-00080

Seal, Dust

7

707-27-13850

Cylinder Head

8

07179-13109

Ring, Snap

9

707-56-95510

Seal, Dust

10

707-52-90721

Bushing

11

707-75-95030

Ring, Snap

12

707-51-95030

Packing

13

07000-15125

O-ring

14

707-35-91370

Ring, Back-up

15

707-51-95650

Ring

16

01010-81875

Bolt

17

707-41-11840

Washer

18

707-36-13771

Piston

19

707-44-13250

Ring, Piston

20

707-39-13530

Ring, Wear

21

707-44-13920

Ring

22

707-71-71010

Plunger

23

07000-15085

O-ring

24

707-35-90960

Ring, Back-up

25

01310-01216

Screw

26

707-71-35010

Collar

27

707-35-91370

Ring, Back-up

28

07000-15125

O-ring

29

707-86-67850

Tube

30

707-86-66330

Tube

31

07372-51060

Bolt

32

01643-51032

Washer

33

07372-51045

Bolt

34

01643-51032

Washer

35

07000-13030

O-ring

36

707-88-28160

Bracket

37

707-88-21261

Band

38

07372-21035

Bolt

39

01643-51032

Washer

40

07283-32738

Clip, Pipe

41

01597-01009

Nut

42

01643-31032

Washer

43

707-88-33030

Cap

44

07371-30640

Flange, Split

45

07372-21035

Bolt

46

01643-51032

Washer
