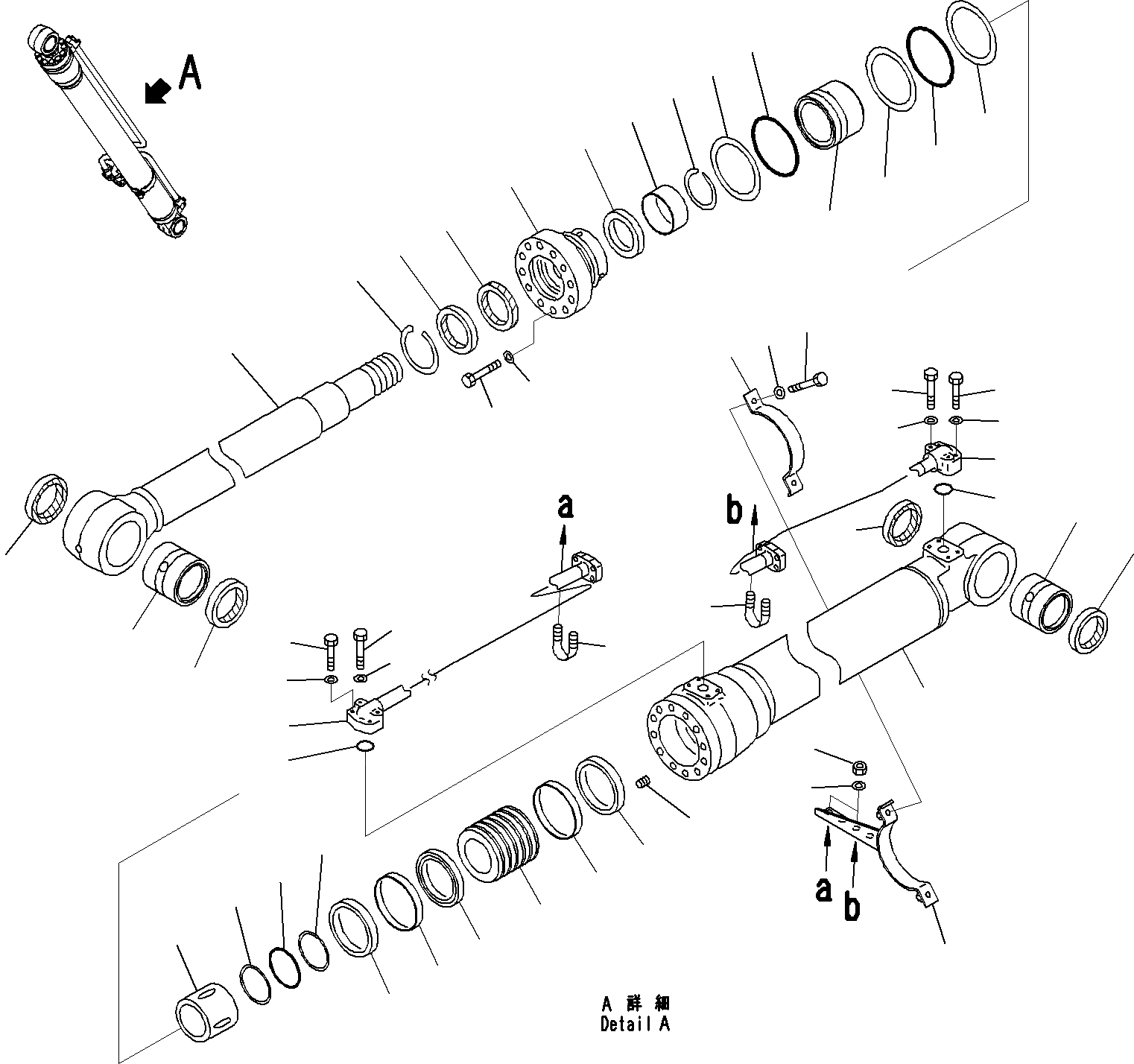

Запчасти Komatsu PC220LC-8 ЦИЛИНДР СТРЕЛЫ(/) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

707-01-XS480

Cylinder Group, LHS

|1

707-01-0H680

Cylinder Assembly

1

707-13-13890

Cylinder

2

707-76-80431

Bushing

3

07145-00080

Seal, Dust

4

707-58-90E50

Rod, Piston

5

707-76-80431

Bushing

6

07145-00080

Seal, Dust

7

707-27-13650

Cylinder Head

8

07179-13104

Ring, Snap

9

195-63-94170

Seal, Dust

10

707-52-90680

Bushing

11

705-75-90110

Ring, Snap

12

707-51-90030

Packing

13

07000-15120

O-ring

14

707-35-91320

Ring, Back-up

15

707-51-90650

Ring

16

01010-81670

Bolt

17

01643-51645

Washer

18

707-36-13780

Piston

19

707-44-13150

Ring, Piston

20

707-39-13150

Ring, Wear

21

707-44-13911

Ring

22

707-71-60970

Plunger

23

07000-15080

O-ring

24

707-35-90940

Ring, Back-up

25

01310-01216

Screw

26

707-71-34670

Collar

27

707-35-91320

Ring, Back-up

28

07000-15120

O-ring

29

707-86-67780

Tube

30

707-86-66310

Tube

31

07372-21060

Bolt

32

01643-51032

Washer

33

07372-21045

Bolt

34

01643-51032

Washer

35

07000-13030

O-ring

36

707-88-28050

Bracket

37

707-88-21311

Band

38

07372-21035

Bolt

39

01643-51032

Washer

40

07283-32738

Clip, Pipe

41

01597-01009

Nut

42

01643-31032

Washer
