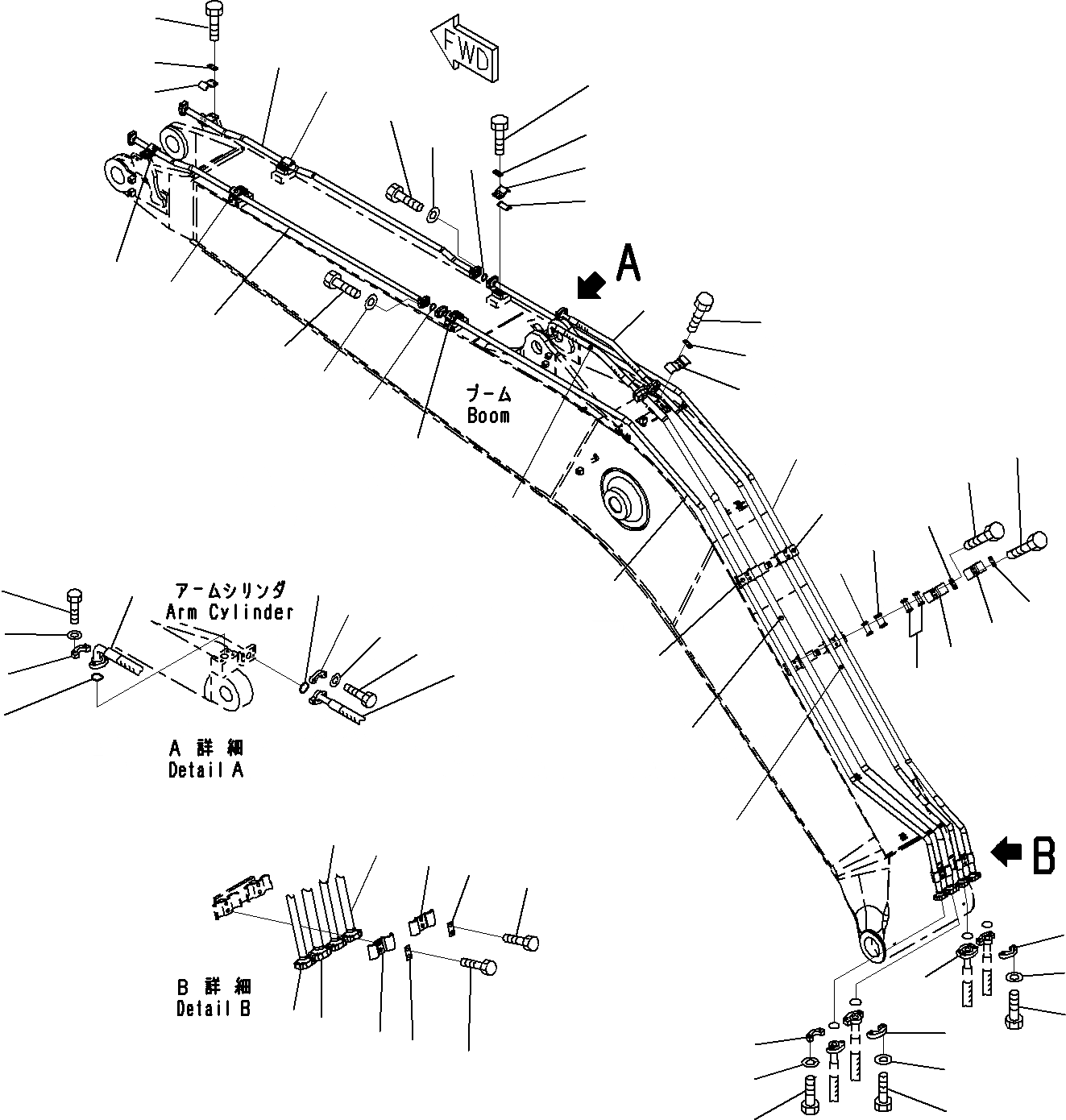

Запчасти Komatsu PC220LC-8 СТРЕЛА, УСИЛ.ENED (/) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

206-62-21320

Tube

2

07371-30640

Flange, Split

3

07372-21035

Bolt

4

01643-51032

Washer

5

206-62-21310

Tube

6

07371-31049

Flange, Split

7

07372-21035

Bolt

8

01643-51032

Washer

9

20Y-62-13690

Clamp

10

20Y-62-13730

Clamp

11

205-62-73431

Seat

12

20Y-62-13761

Seat

13

20Y-62-13450

Plate

14

01010-81230

Bolt

15

20Y-62-13570

Hose

16

07000-13025

O-ring

17

07371-30640

Flange, Split

18

07372-21035

Bolt

19

01643-51032

Washer

20

206-62-21210

Hose

21

07000-13032

O-ring

22

07371-31049

Flange, Split

23

07372-21035

Bolt

24

01643-51032

Washer

25

206-62-21330

Tube

26

206-62-21340

Tube

27

07371-30640

Flange, Split

28

07372-21035

Bolt

29

01643-51032

Washer

30

20Y-62-13710

Clamp

31

20Y-62-13190

Clamp

32

20Y-62-13761

Seat

33

20Y-62-13450

Plate

34

01010-81230

Bolt

35

20Y-62-52651

Tube

36

206-62-21370

Tube

37

07000-13030

O-ring

38

07372-21035

Bolt

39

01643-51032

Washer

40

206-62-73560

Clamp

41

20Y-62-13180

Clamp

42

20Y-62-13761

Seat

43

20Y-62-13450

Plate

44

01010-81230

Bolt
