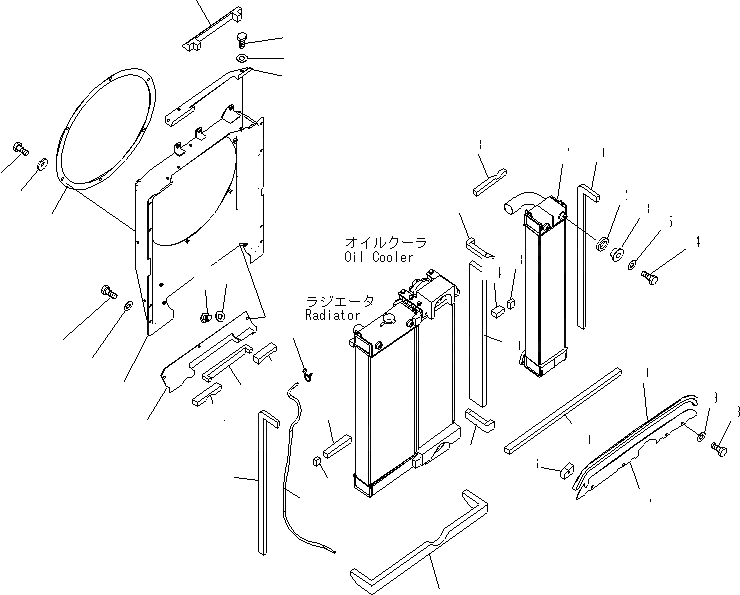

Запчасти Komatsu PC220LC-8 СИСТЕМА ОХЛАЖДЕНИЯ (КОЖУХ И ПОСЛЕОХЛАДИТЕЛЬ) СИСТЕМА ОХЛАЖДЕНИЯ

1

206-03-21221

SHROUD

2

01010-81020

BOLT

3

01643-31032

WASHER

4

20Y-03-41321

PLATE

5

01010-81020

BOLT

6

203-54-56970

WASHER

|$12

206-03-21341

COVER

7

206-03-21491

SHEET

8

COVER

9

01010-81020

BOLT

10

01643-31032

WASHER

|$18

206-03-21680

COVER

11

206-03-21481

SHEET

12

COVER

13

206-03-21551

SHEET

14

206-03-21381

SHEET

15

01010-81020

BOLT

16

01643-31032

WASHER

|$27

206-03-21431

COOLER

17

AFTERCOOLER

18

206-03-21361

SHEET

19

206-03-21290

SHEET

20

206-03-21460

SHEET

21

206-03-21540

SHEET

22

22U-03-22860

CUSHION

23

6738-61-4952

COLLAR

24

01010-81030

BOLT

25

01643-31032

WASHER

26

20Y-03-21460

HOSE

27

206-03-43340

CLIP

28

206-03-21281

SHEET

29

206-03-21310

SHEET

30

206-03-21320

SHEET

31

206-03-21310

SHEET

32

206-03-21560

SHEET

33

206-03-21570

SHEET

34

206-03-21690

SHEET

35

20Y-03-41521

SHEET

36

20Y-03-41632

SHEET

36

20Y-03-41631

SHEET

37

206-03-21252

COVER

37

206-03-21251

COVER

38

01010-81020

BOLT

39

01643-31032

WASHER

40

20Y-03-41870

SEAL
