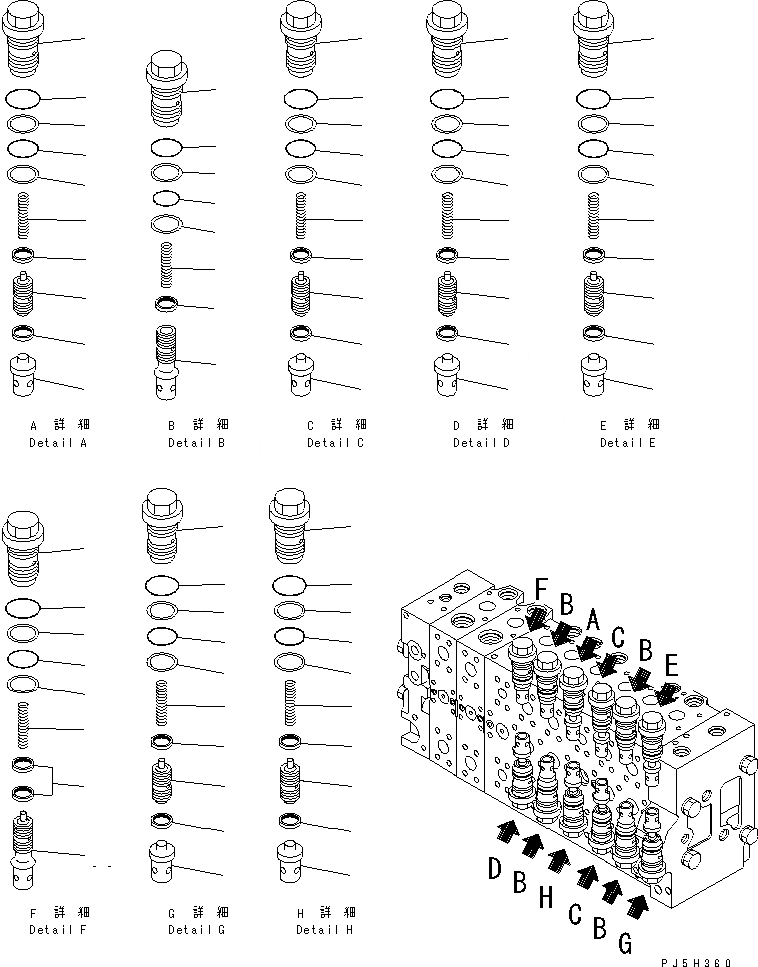

Запчасти Komatsu PC220LC-7L ОСНОВН. КЛАПАН (PRESSURE COMPENSATION КЛАПАНS) ( АКТУАТОР) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
|$0
723-48-20501
VALVE ASS'Y,(SEE FIG. H0120-01A2)
|$1
BODY SUB ASS'Y
1
723-46-41110
VALVE
2
723-46-41190
VALVE
|$4
723-46-41120
VALVE
|$5
723-46-40100
VALVE ASS'Y
3
SLEEVE
4
PISTON SUB ASS'Y
5
SPRING
6
SEAL
7
700-93-11320
O-RING
8
723-46-41950
RING
9
07002-13634
O-RING
|$13
723-46-42700
VALVE ASS'Y
10
SLEEVE
11
VALVE
12
SPRING
13
SEAL
14
700-93-11320
O-RING
15
723-46-41950
RING
16
07002-13634
O-RING
|$21
723-46-41100
VALVE ASS'Y
17
SLEEVE
18
PISTON SUB ASS'Y
19
SPRING
20
SEAL
21
700-93-11320
O-RING
22
723-46-41950
RING
23
07002-13634
O-RING
|$29
723-46-45100
VALVE ASS'Y
24
SLEEVE
25
PISTON SUB ASS'Y
26
SPRING
27
SEAL
28
700-93-11320
O-RING
29
723-46-41950
RING
30
07002-13634
O-RING
|$37
723-46-46300
VALVE ASS'Y
31
SLEEVE
32
PISTON SUB ASS'Y
33
SPRING
34
SEAL
35
700-93-11320
O-RING
36
723-46-41950
RING
37
07002-13634
O-RING
|$45
723-46-43400
VALVE ASS'Y
38
SLEEVE
39
VALVE SUB ASS'Y
40
SPRING
41
SEAL
42
700-93-11320
O-RING
43
723-46-41950
RING
44
07002-13634
O-RING
|$53
723-46-43100
VALVE ASS'Y
45
SLEEVE
46
PISTON SUB ASS'Y
47
SPRING
48
SEAL
49
700-93-11320
O-RING
50
723-46-41950
RING
51
07002-13634
O-RING
|$61
723-46-46101
VALVE ASS'Y
52
SLEEVE
53
PISTON SUB ASS'Y
54
SPRING
55
SEAL
56
700-93-11320
O-RING
57
723-46-41950
RING
58
07002-13634
O-RING
Выбрано товаров: 69
