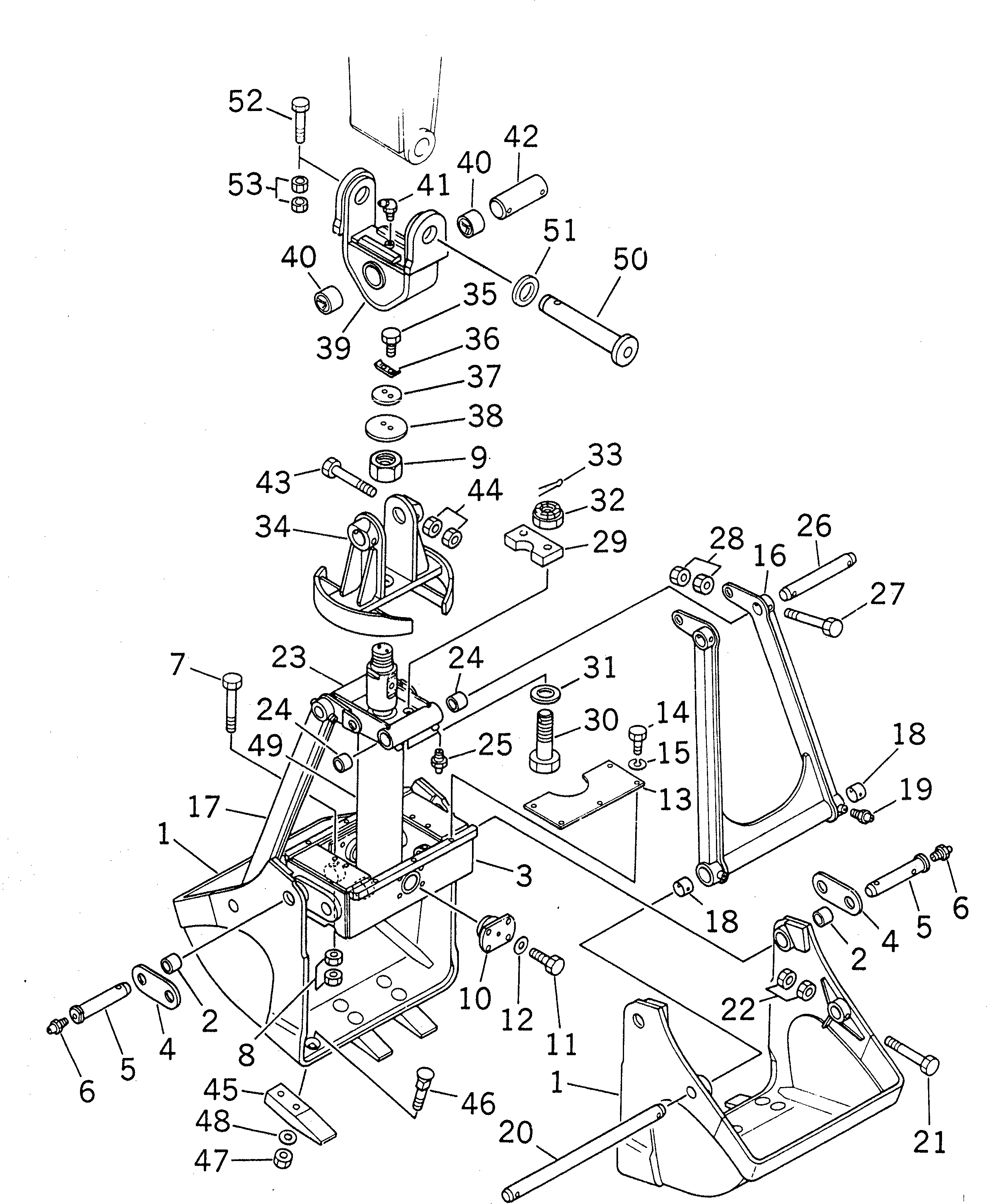

Запчасти Komatsu PC220LC-7 ГРЕЙФЕРН. КОВШ РАБОЧЕЕ ОБОРУДОВАНИЕ

1

205-931-1161

SHELL

2

07143-10505

BUSHING

3

205-931-1230

FRAME

4

205-931-1240

PLATE

5

205-931-1250

PIN

6

07020-00000

FITTING

7

01011-81610

BOLT

8

01580-11613

NUT

9

205-931-2140

NUT

10

205-931-1260

CAP

11

01010-81450

BOLT

12

01643-31445

WASHER

13

205-931-1270

COVER

14

01010-81020

BOLT

15

01643-31032

WASHER

16

205-931-1192

ARM

17

205-931-1212

ARM

18

07144-10505

BUSHING

19

07020-00000

FITTING

20

205-931-1220

PIN

21

01011-81630

BOLT

22

01580-11613

NUT

23

205-931-1281

FRAME

24

07144-10505

BUSHING

25

07020-00000

FITTING

26

205-931-1290

PIN

27

01011-81610

BOLT

28

01580-11613

NUT

29

205-931-1310

PLATE

30

01013-83010

BOLT

31

01643-33080

WASHER

32

01590-33033

NUT

33

04050-16055

PIN

34

205-931-1122

HANGER

35

01010-81230

BOLT

36

04081-06012

LOCK

37

205-931-1330

HOLDER

38

205-931-1320

PLATE

39

205-931-6110

BRACKET

40

205-931-6150

BUSHING

41

07020-00675

FITTING

42

205-931-1130

PIN

43

01011-81650

BOLT

44

01580-11613

NUT

45

202-931-1180

TOOTH

46

02090-11285

BOLT

47

02290-11219

NUT

48

01643-32060

WASHER

49

205-63-94101

CYLINDER ASS'Y

50

205-70-73270

PIN

51

205-70-74410

COLLAR

52

205-70-73190

BOLT

53

01580-12016

NUT
