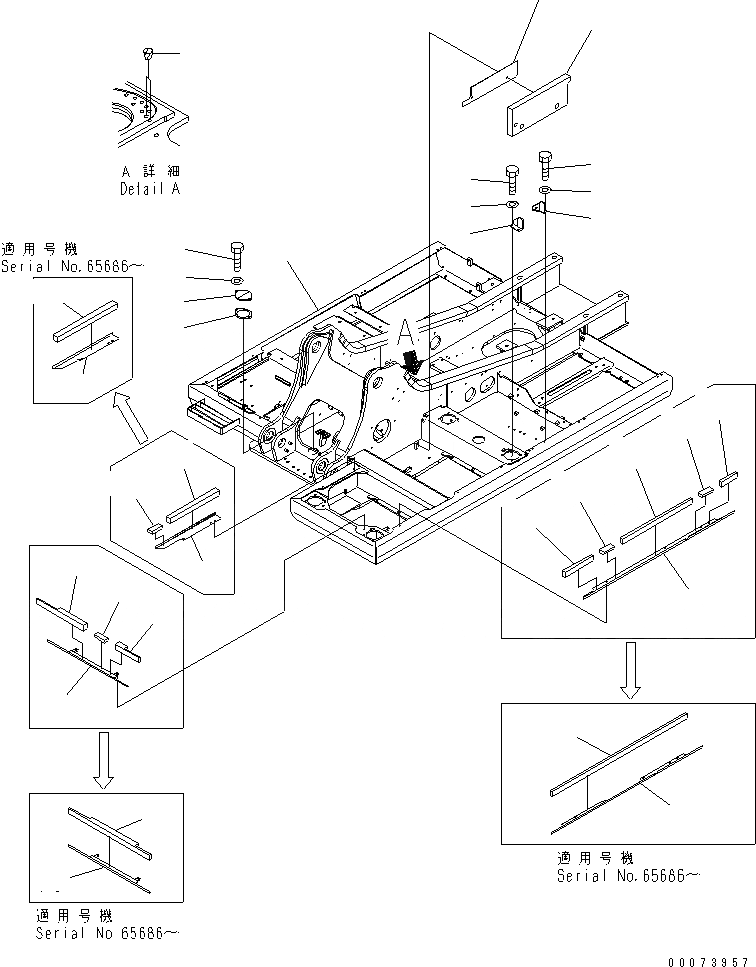

Запчасти Komatsu PC220LC-7 ЧАСТИ ОСНОВНОЙ РАМЫ(№-) ОСНОВНАЯ РАМА И ЕЕ ЧАСТИ

1

206-46-71103

FRAME

1

206-46-71102

FRAME

2

205-30-71181

COVER

3

205-30-71191

GASKET

4

01010-81230

BOLT

5

01643-31232

WASHER

5A

20Y-46-41280

PLUG

6

20Y-54-61670

BRACKET

7

20Y-54-61680

BRACKET

8

01010-81230

BOLT

9

01643-31232

WASHER

|$22

20Y-46-42412

COVER

|$23

20Y-46-42411

COVER

10

COVER

10

COVER

11

20Y-46-42232

SEAL

11

20Y-46-42231

SEAL

12

20Y-46-42460

SHEET

|$31

20Y-46-42427

COVER

|$32

20Y-46-42423

COVER

|$33

20Y-46-42422

COVER

13

COVER

13

COVER

13

COVER

14

20Y-46-42253

SEAL

14

20Y-46-42252

SEAL

14

20Y-46-42251

SEAL

15

20Y-46-42460

SHEET

16

20Y-46-42470

SEAL

17

20Y-46-42480

SEAL

|$46

20Y-46-42433

COVER

|$47

20Y-46-42432

COVER

|$48

20Y-46-42431

COVER

18

COVER

18

COVER

18

COVER

19

20Y-46-42243

SEAL

19

20Y-46-42242

SEAL

19

20Y-46-42241

SEAL

20

20Y-46-42460

SHEET

21

20Y-46-42490

SEAL

|$60

20Y-46-42440

COVER

22

COVER

22

COVER

23

20Y-46-42260

SHEET
