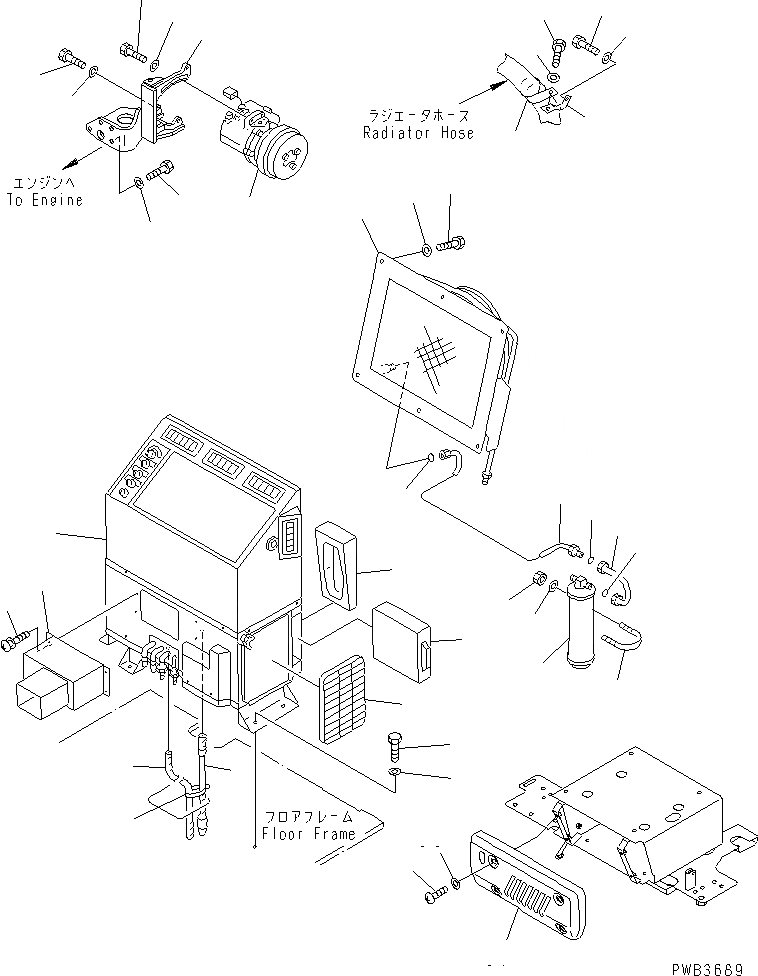

Запчасти Komatsu PC220LC-6Z КОНДИЦ. ВОЗДУХА (БЛОК)(№78-8) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

201-979-7111

AIR CONDITIONER UNIT

2

114-X11-3850

FILTER

3

203-979-6591

FILTER

4

01010-51020

BOLT

5

01643-31032

WASHER

6

201-979-7170

HOSE

7

201-979-7170

HOSE

8

08034-00519

BAND

9

201-979-7180

DUCT

10

01023-20510

SCREW

11

20Y-979-2250

SEAL

12

20Y-979-5350

CONDENSER ASS'Y

13

01010-51025

BOLT

14

01643-31032

WASHER

15

203-979-6610

RECEIVER DRYER

16

20Y-979-5150

TUBE

17

203-979-6390

O-RING

18

20Y-979-5162

TUBE

19

203-979-6390

O-RING

20

07283-27060

CLIP

21

01599-01011

NUT

22

01643-31032

WASHER

23

203-979-6580

COMPRESSOR ASS'Y

24

20Y-979-5342

BRACKET

25

01010-51070

BOLT

26

01643-31032

WASHER

27

01010-51030

BOLT

28

01643-31032

WASHER

29

01010-51030

BOLT

30

01643-31032

WASHER

31

20Y-03-21620

BRACKET

32

01010-51025

BOLT

33

01643-31032

WASHER

34

208-62-38370

CLIP

35

01010-51020

BOLT

36

01643-31032

WASHER

37

20U-54-28280

COVER

38

01220-70820

SCREW

39

01643-80823

WASHER
