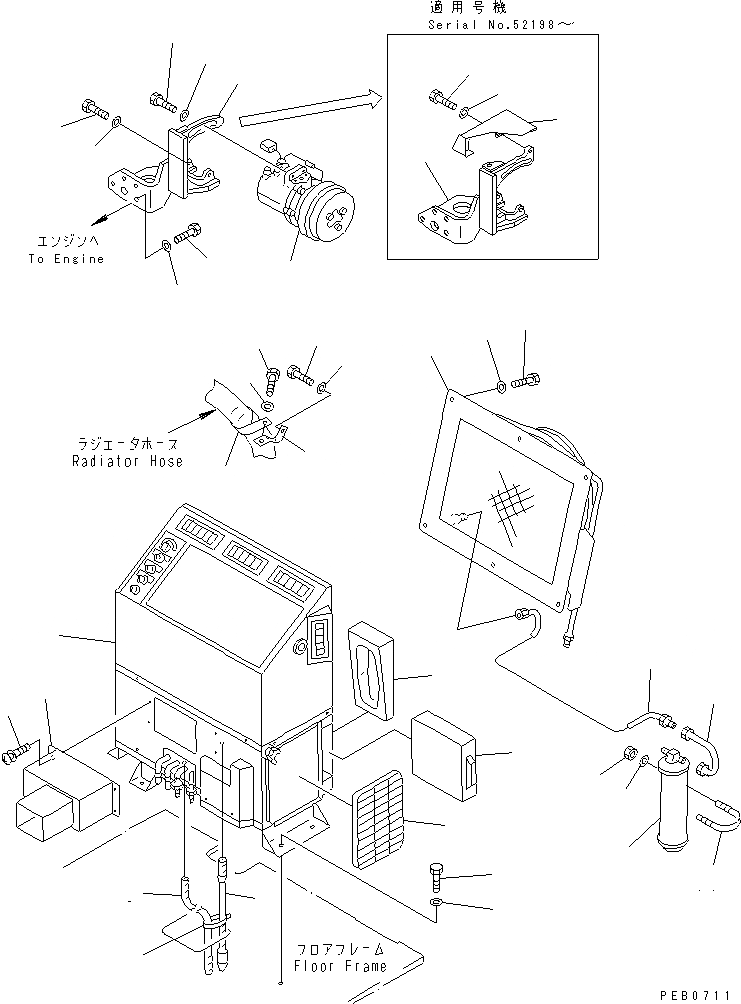

Запчасти Komatsu PC220LC-6Z КОНДИЦ. ВОЗДУХА (БЛОК)(№-77) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

201-979-7111

AIR CONDITIONER UNIT

2

114-X11-3850

FILTER

3

203-979-6591

FILTER

4

01010-51020

BOLT

5

01643-31032

WASHER

6

201-979-7170

HOSE

7

201-979-7170

HOSE

7

209-979-1250

HOSE

7A

08034-00519

BAND

8

201-979-7180

DUCT

9

01023-20510

SCREW

10

20Y-979-2250

SEAL

11

20Y-979-5350

CONDENSER ASS'Y

12

01010-51025

BOLT

13

01643-31032

WASHER

14

203-979-6610

RECEIVER DRYER

15

20Y-979-5150

TUBE

15

203-979-6390

O-RING

16

20Y-979-5162

TUBE

16

20Y-979-5161

TUBE

16

203-979-6390

O-RING

17

07283-27060

CLIP

18

01599-01011

NUT

19

01643-31032

WASHER

20

203-979-6580

COMPRESSOR ASS'Y

21

20Y-979-5342

BRACKET

21

20Y-979-5341

BRACKET

22

01010-51070

BOLT

23

01643-31032

WASHER

24

01010-51030

BOLT

25

01643-31032

WASHER

26

01010-51030

BOLT

27

01643-31032

WASHER

28

20Y-03-21620

BRACKET

29

01010-51025

BOLT

30

01643-31032

WASHER

31

208-62-38370

CLIP

32

01010-51020

BOLT

33

01643-31032

WASHER

34

20Y-979-5190

COVER

35

01010-51025

BOLT

36

01643-31032

WASHER
