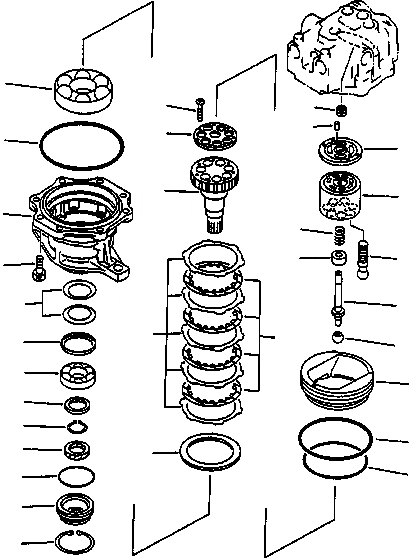

Запчасти Komatsu PC220LC-6LC FIG NO. N- МОТОР ПОВОРОТА (/) ПОВОРОТН. КРУГ И КОМПОНЕНТЫ

|$0

706-75-01101

SWING MOTOR ASSEMBLY

1

706-75-41091

BLOCK

2

706-75-41163

PISTON SUB ASSEMBLY

3

706-75-42180

SHAFT

4

706-75-41220

BALL

5

706-75-41110

SPRING

6

706-75-41130

RING

7

706-75-40010

BEARING

8

706-75-42740

PLATE

9

04020-00820

PIN

10

706-75-42260

RETAINER

11

706-75-42662

SHAFT

12

706-75-42270

SCREW

13

706-75-42121

CASE

14

706-75-42880

BEARING

15

706-76-40890

BEARING

16

706-7E-11260

SPRING

17

706-7E-11270

SEAT

18

706-75-05010

SPACER KIT

|$19

706-86-40030

SPACER, 5.0MM

|$20

706-7E-11310

SPACER, 5.4MM

|$21

706-7E-11320

SPACER, 5.8MM

19

04064-04518

RING

20

706-75-42711

COVER

21

706-7E-11280

SEAL

22

07000-02085

O-RING

23

04065-09030

RING

24

706-75-92180

PISTON

25

07000-15155

O-RING

26

07000-15175

O-RING

27

07000-05200

O-RING

28

706-75-92140

PLATE

29

706-75-92150

DISK

30

706-75-92130

PLATE

31

706-87-50360

BOLT
