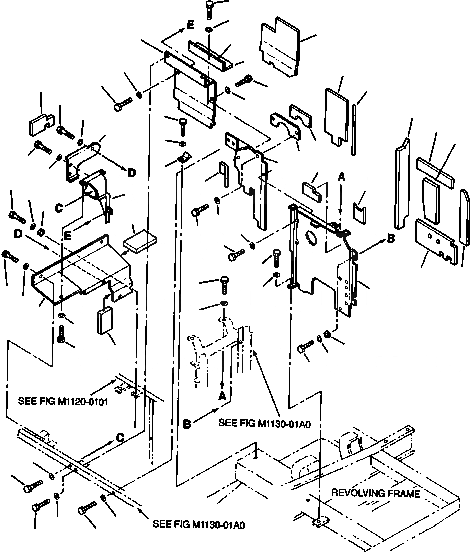

Запчасти Komatsu PC220LC-6LC FIG NO. M-A ПЕРЕГОРОДКА. - КАБИНА ЧАСТИ КОРПУСА

|$0

20Y-54-K7763

COVER ASSEMBLY

1

20Y-54-K8660

COVER

2

20Y-54-K8730

SHEET

3

20Y-54-32420

SHEET

4

20Y-54-K8650

SHEET

5

20Y-54-32540

SHEET

6

20Y-54-K7791

SHEET

7

20Y-54-KA210

SHEET

|$8

20Y-54-K7891

COVER ASSEMBLY

8

20Y-54-K8171

COVER

9

20Y-54-K7831

SHEET

10

20Y-54-K7871

SHEET

11

20Y-54-K7881

SHEET

12

01010-51230

BOLT

13

175-54-34170

WASHER

14

20Y-54-12550

COLLAR

15

01010-51230

BOLT

16

01643-31232

WASHER

17

01010-51230

BOLT

18

01643-31232

WASHER

|$20

20Y-54-K8740

COVER ASSEMBLY

19

20Y-54-27633

COVER

20

20Y-54-32270

SHEET

21

20Y-54-32310

SHEET

22

20Y-54-27654

COVER

23

01010-51230

BOLT

24

01643-31232

WASHER

25

20Y-54-12550

COLLAR

26

01010-51230

BOLT

27

01643-31232

WASHER

|$30

20Y-54-K8750

COVER ASSEMBLY

28

20Y-54-27642

COVER

29

20Y-54-32280

SHEET

30

01010-51230

BOLT

31

01643-31232

WASHER

32

01010-51230

BOLT

33

01643-31232

WASHER

|$37

20Y-54-K7811

COVER ASSEMBLY

34

20Y-54-27694

COVER

35

20Y-54-27582

SHEET

36

20Y-54-27741

SHEET

37

20Y-54-32520

SHEET

38

01010-51230

BOLT

39

01643-31232

WASHER

40

01010-51230

BOLT

41

175-54-34170

WASHER

|$46

20Y-54-K7821

COVER ASSEMBLY

42

20Y-54-32830

COVER

43

20Y-54-K7861

SHEET

44

01010-51230

BOLT

45

01643-31232

WASHER

46

20Y-54-12320

CATCH

47

01010-51230

BOLT

48

01643-31232

WASHER

49

20Y-54-K8810

SHEET
