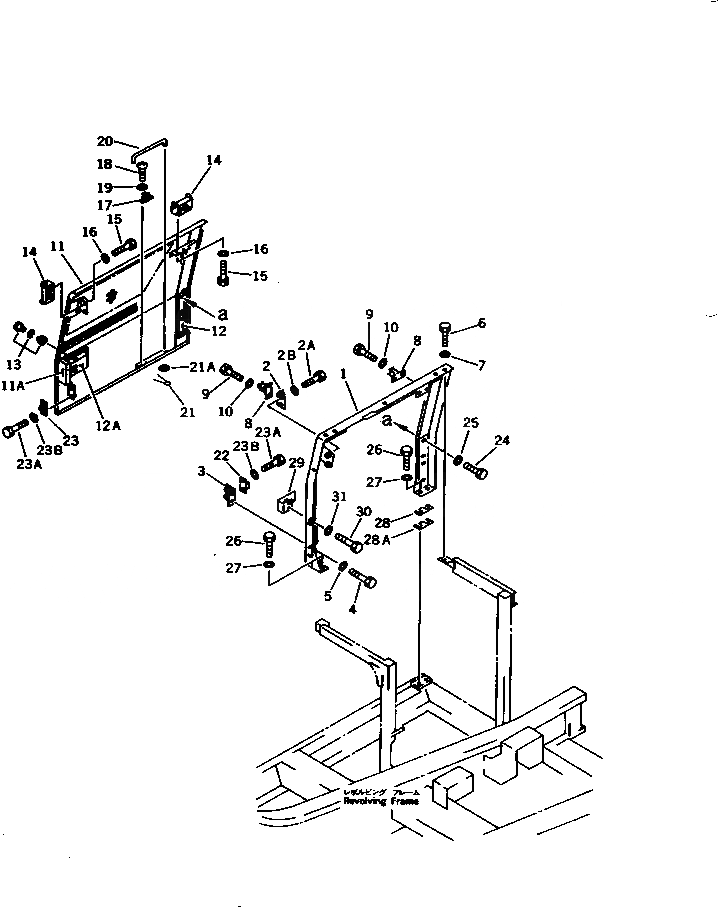

Запчасти Komatsu PC220LC-5C ПРАВ. COVER(№-) ЧАСТИ КОРПУСА

1

20Y-54-21321

FRAME

2

20Y-54-12941

PLATE

2A

01010-51225

BOLT

2B

01643-31232

WASHER

3

20Y-54-12980

BRACKET

4

01010-51025

BOLT

5

01643-31032

WASHER

6

01010-51230

BOLT

7

01643-31232

WASHER

8

20Y-54-12920

CLAMP

9

01010-51020

BOLT

10

01643-31032

WASHER

11

20Y-54-21350

DOOR

12

20Y-54-12750

HINGE (WELDED)

12A

421-54-11362

LOCK ASS'Y (WELDED)

13

421-54-11381

LOCK

14

207-54-31870

BRACKET

15

01010-51020

BOLT

16

01643-31032

WASHER

17

20B-54-12210

SPRING

18

01220-40408

SCREW

19

01641-20405

WASHER

20

205-54-64140

BAR

21

04050-13018

PIN,COTTER

21A

01641-21016

WASHER

22

205-54-51970

DOVE TAIL

23

205-54-53550

DOVE TAIL

23A

01010-50616

BOLT

23B

01643-30623

WASHER

24

01010-51225

BOLT

25

20Y-54-12670

WASHER

26

01010-51230

BOLT

27

01643-31232

WASHER

28

20Y-54-12690

PLATE¤ 1.0MM

28A

20Y-54-12680

PLATE¤ 3.2MM

29

20Y-54-12380

PLATE

30

01010-51025

BOLT

31

01643-31032

WASHER
