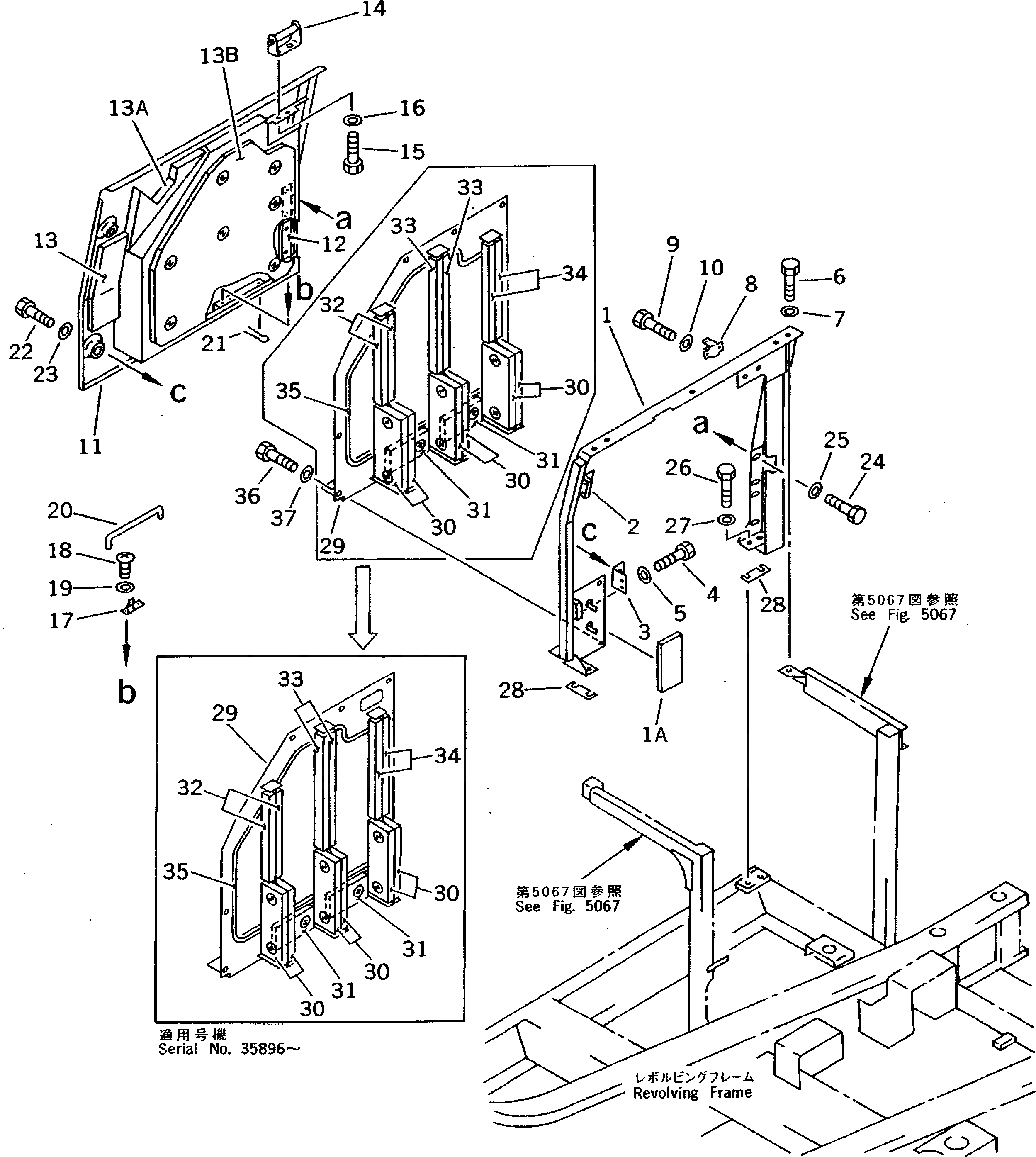

Запчасти Komatsu PC220LC-5 ПРАВ. КРЫШКА(PCSS) (PCLCSS)(№-) ЧАСТИ КОРПУСА

1

20Y-54-15381

FRAME

1A

20Y-54-16781

FELT

2

20Y-54-12960

BRACKET

3

20Y-54-12930

BRACKET

4

01010-51230

BOLT

5

01643-31232

WASHER

6

01010-51230

BOLT

7

01643-31232

WASHER

8

20Y-54-12920

CLAMP

9

01010-51020

BOLT

10

01643-31032

WASHER

11

20Y-54-15371

DOOR

12

20Y-54-12750

HINGE (WELDED)

13

20Y-54-16790

SHEET

13A

20Y-54-15750

SHEET

13B

20Y-54-15351

FELT

14

207-54-31870

BRACKET

15

01010-51020

BOLT

16

01643-31032

WASHER

17

20B-54-12210

SPRING

18

01220-40408

SCREW

19

01641-20405

WASHER

20

205-54-64140

BAR

21

04050-13018

PIN,COTTER

22

01010-51225

BOLT

23

01643-31232

WASHER

24

01010-51225

BOLT

25

20Y-54-12670

WASHER

26

01010-51230

BOLT

27

01643-31232

WASHER

28

20Y-54-12690

PLATE¤ 1.0MM

29

206-54-51251

COVER

|29

206-54-51250

COVER

30

206-54-51291

FELT

|30

206-54-51290

FELT

31

20Y-54-16620

FELT

32

206-54-51280

FELT

33

206-54-51260

FELT

34

206-54-51270

FELT

35

20Y-54-15671

TRIM

36

01010-51225

BOLT

37

01643-31232

WASHER
