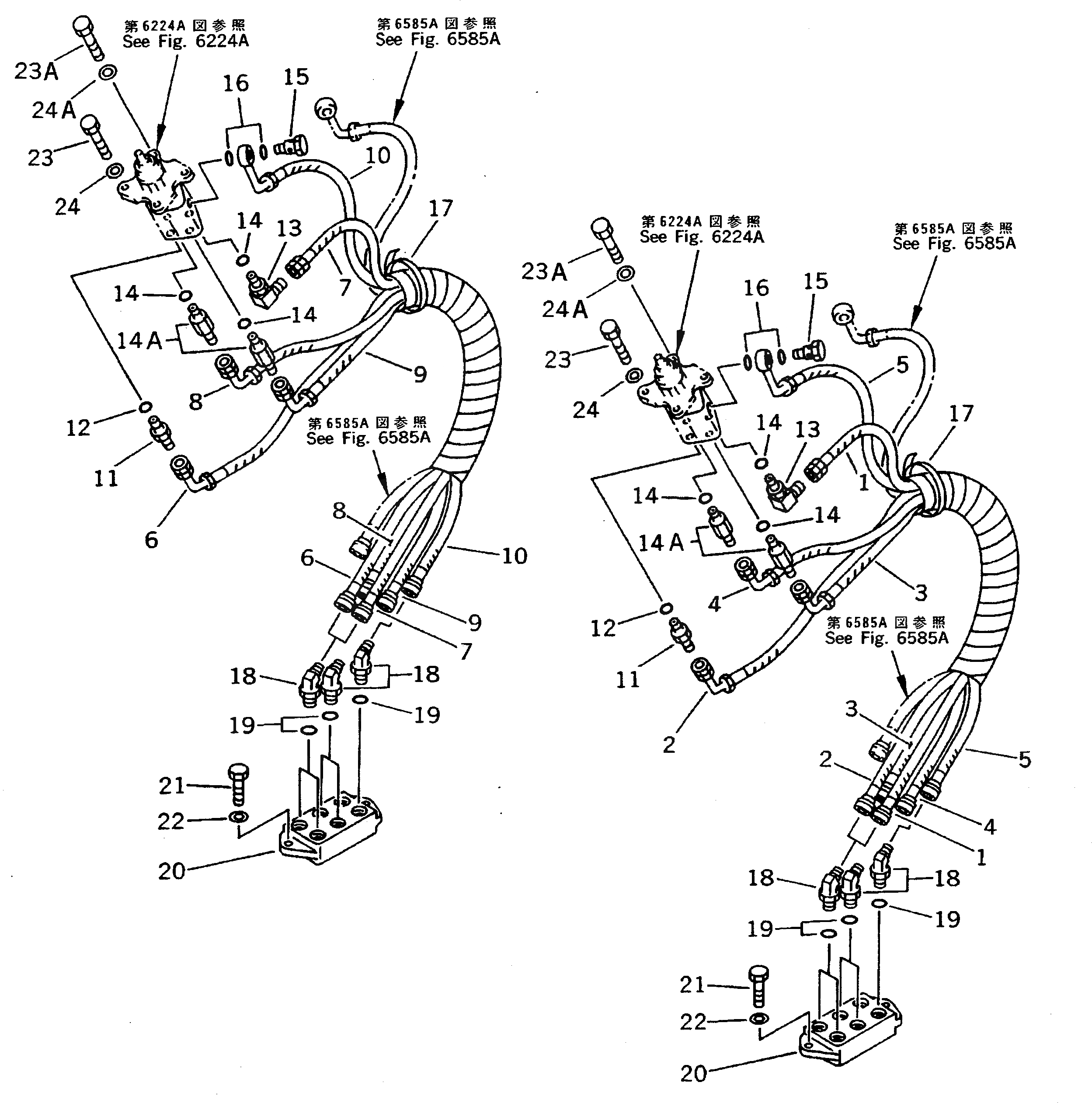

Запчасти Komatsu PC220LC-5 P.P.C. КЛАПАН ТРУБЫ (КЛАПАН PPCTO/FROM БЛОК) (ДЛЯ WRIST УПРАВЛ-Е)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

20Y-62-18850

HOSE, 720MM,(YELLOW)

2

20Y-62-18830

HOSE, 800MM,(WHITE)

3

20Y-62-18840

HOSE, 730MM,(BLACK)

4

20Y-62-18840

HOSE, 730MM,(BROWN)

5

20Y-62-18860

HOSE, 685MM,(RED)

6

20Y-62-18830

HOSE, 800MM,(WHITE)

7

20Y-62-18850

HOSE, 720MM,(YELLOW)

8

20Y-62-18840

HOSE, 730MM,(BLACK)

9

20Y-62-18840

HOSE, 730MM,(BROWN)

10

20Y-62-18860

HOSE, 685MM,(RED)

11

205-62-55270

NIPPLE

12

07002-01423

O-RING

13

207-62-33920

ELBOW

14

07002-01423

O-RING

14A

207-62-33950

NIPPLE

15

20Y-62-18910

BOLT

16

07000-02018

O-RING

17

08034-00823

BAND

18

20Y-62-18880

ELBOW

19

07002-02034

O-RING

20

20Y-62-16221

BLOCK

21

01010-51030

BOLT

22

01643-51032

WASHER

23

01010-50825

BOLT

23A

01010-50825

BOLT

24

01643-30823

WASHER

24A

01643-30823

WASHER
