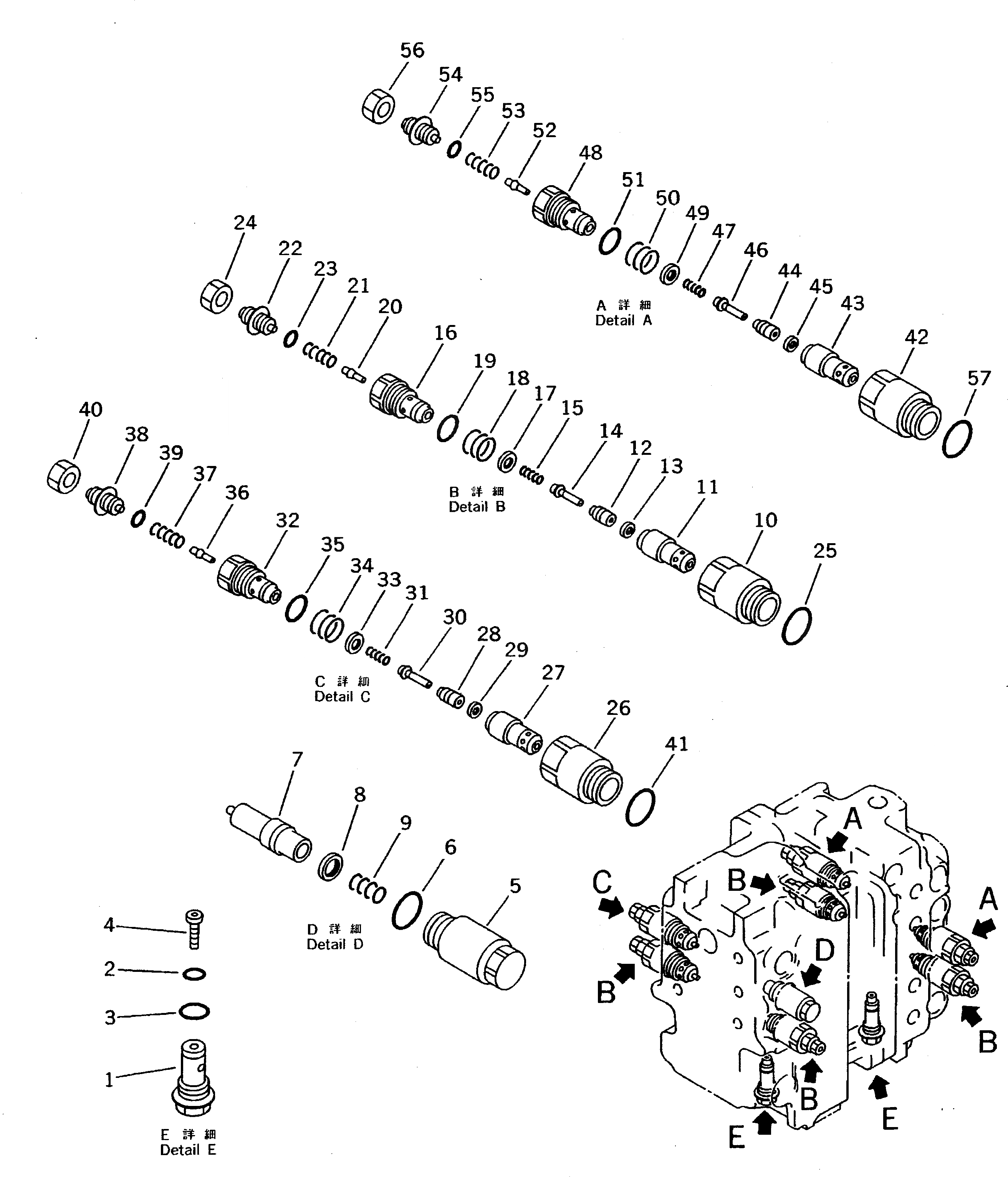

Запчасти Komatsu PC220LC-5 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (7/7) (ДЛЯ КЛАПАНS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-79-24102

CONTROL VALVE ASS'Y

|$2

709-90-91300

ORIFICE ASS'Y

1

ORIFICE

2

07000-02014

O-RING

3

07002-02434

O-RING

4

SENSOR

|$7

709-20-81201

VALVE ASS'Y,SUCTION

5

709-20-61110

SLEEVE

6

709-25-11390

O-RING

7

VALVE

8

SEAL

9

709-20-61160

SPRING

|$13

709-70-74103

VALVE ASS'Y,SUCTION AND SAFETY

10

709-70-71112

SLEEVE

11

SLEEVE

12

POPPET

13

SEAL

14

PISTON

15

709-70-71210

SPRING

16

PLUG

17

SEAL

18

709-70-71220

SPRING

19

07002-02434

O-RING

20

POPPET

21

SPRING

22

SCREW

23

O-RING

24

NUT

25

709-25-11390

O-RING

|$30

709-70-74203

VALVE ASS'Y,SUCTION AND SAFETY

26

709-70-71112

SLEEVE

27

SLEEVE

28

POPPET

29

SEAL

30

PISTON

31

709-70-71210

SPRING

32

PLUG

33

SEAL

34

709-70-71220

SPRING

35

07002-02434

O-RING

36

POPPET

37

SPRING

38

SCREW

39

O-RING

40

NUT

41

709-25-11390

O-RING

|$47

709-70-74600

VALVE ASS'Y,SUCTION AND SAFETY

42

709-70-71112

SLEEVE

43

SLEEVE

44

POPPET

45

SEAL

46

PISTON

47

709-70-71210

SPRING

48

PLUG

49

SEAL

50

709-70-71220

SPRING

51

07002-02434

O-RING

52

POPPET

53

SPRING

54

SCREW

55

O-RING

56

NUT

57

709-25-11390

O-RING
