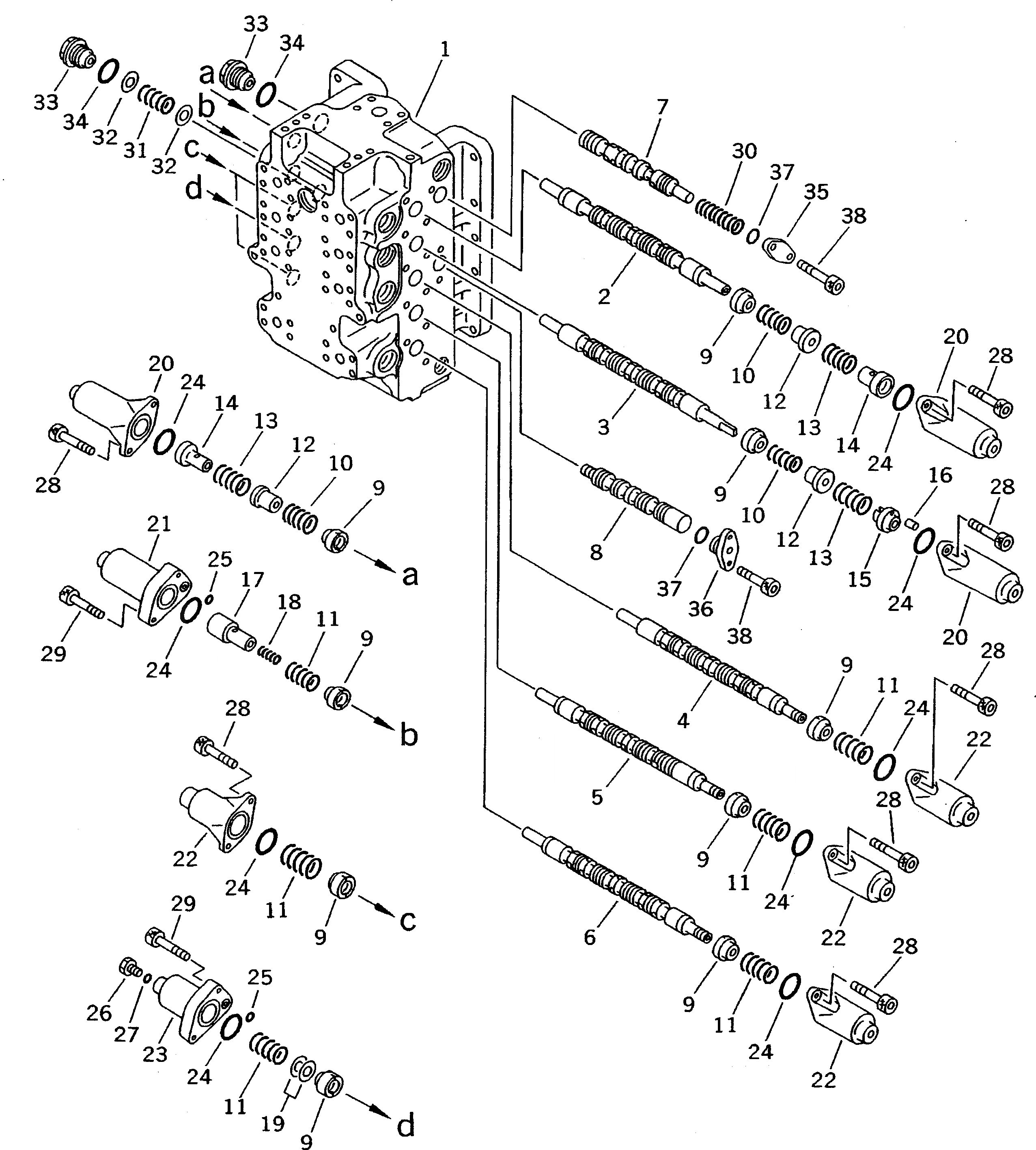

Запчасти Komatsu PC220LC-5 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (/7) (ДЛЯ КЛАПАНS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-79-24102

CONTROL VALVE ASS'Y

|$2

709-75-94102

VALVE ASS'Y

1

BODY,VALVE

2

SPOOL

3

SPOOL

4

SPOOL

5

SPOOL

6

SPOOL

7

SPOOL

8

SPOOL

9

709-74-92110

RETAINER

10

709-74-91910

SPRING

11

709-74-92180

SPRING

12

709-74-91930

RETAINER

13

709-74-91920

SPRING

14

709-74-91940

RETAINER

15

709-74-91970

SLEEVE

16

04022-04008

PIN

17

709-74-92420

RETAINER

18

709-74-92430

SPRING

19

709-74-92360

SHIM, 0.5MM

20

709-74-91980

CASE

21

709-74-92780

CASE

22

709-74-92120

CASE

23

709-74-92140

CASE

24

709-74-92170

O-RING

25

07000-02010

O-RING

26

07040-11409

PLUG

27

07002-01423

O-RING

28

01252-30820

BOLT

29

01252-30830

BOLT

30

709-74-92190

SPRING

31

709-74-92210

SPRING

32

709-74-92270

WASHER

33

709-74-92220

PLUG

34

07002-03034

O-RING

35

709-74-92250

PLATE

36

709-74-92240

PLATE

37

07000-02018

O-RING

38

01252-30820

BOLT
