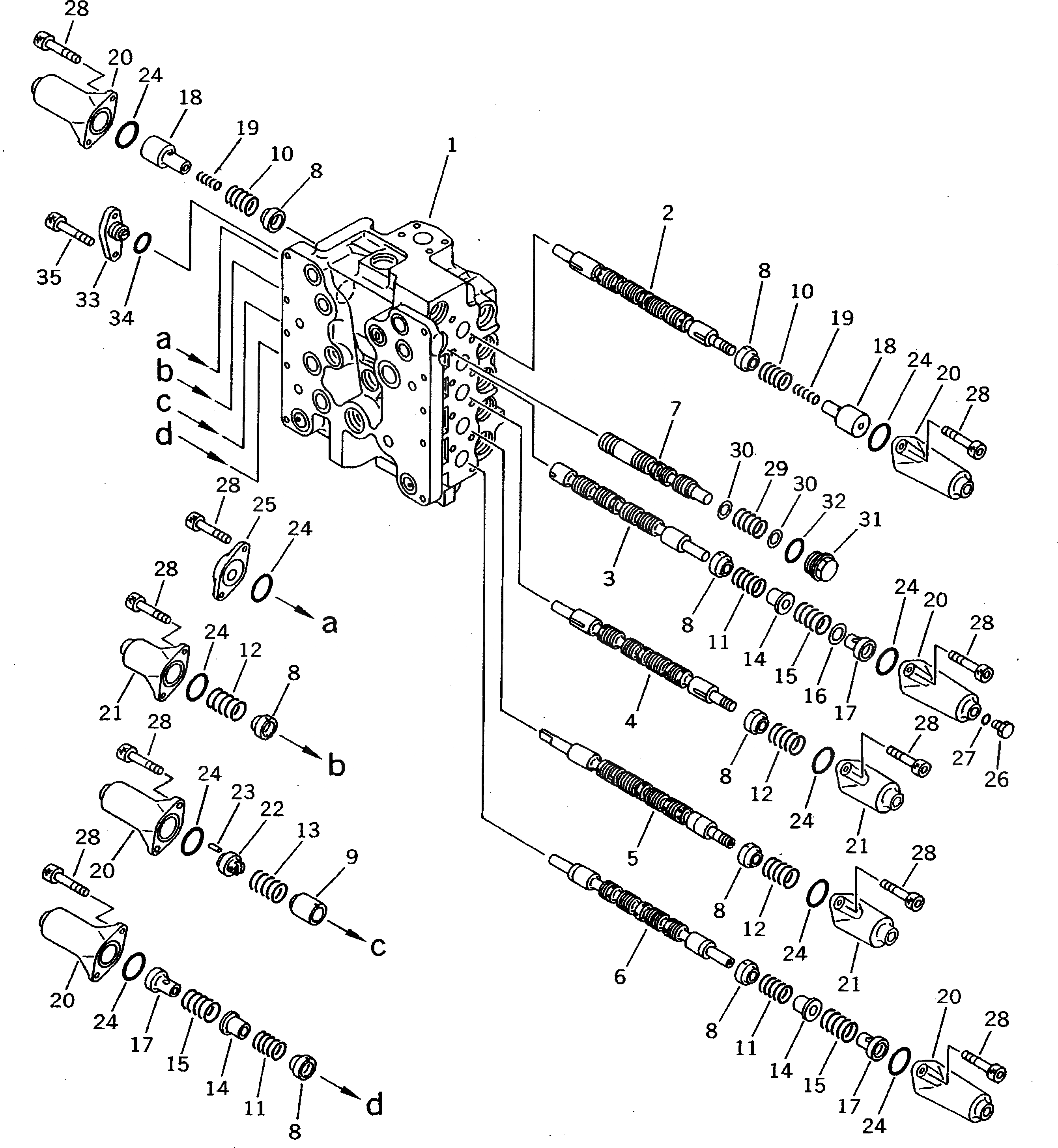

Запчасти Komatsu PC220LC-5 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (/7) (ДЛЯ КЛАПАНS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-79-24102

CONTROL VALVE ASS'Y

|$2

709-75-92600

VALVE ASS'Y

1

BODY,VALVE

2

SPOOL

3

SPOOL

4

SPOOL

5

SPOOL

6

SPOOL

7

SPOOL

8

709-74-92110

RETAINER

9

709-74-91990

RETAINER

10

709-74-92180

SPRING

11

709-74-91910

SPRING

12

709-74-92180

SPRING

13

709-74-91840

SPRING

14

709-74-91930

RETAINER

15

709-74-91920

SPRING

16

709-74-92360

SHIM, 0.5MM

17

709-74-91940

RETAINER

18

709-74-92420

RETAINER

19

709-74-92430

SPRING

20

709-74-91980

CASE

21

709-74-92120

CASE

22

709-74-91970

SLEEVE

23

04022-04008

PIN

24

709-74-92170

O-RING

25

709-74-92590

PLATE

26

07040-11409

PLUG

27

07002-01423

O-RING

28

01252-30820

BOLT

29

709-74-92210

SPRING

30

709-74-92270

WASHER

31

709-74-92230

PLUG

32

07002-03034

O-RING

33

709-74-92260

PLATE

34

07000-02018

O-RING

35

01252-30820

BOLT
