Запчасти Komatsu PC220LC-3 ГУСЕНИЦЫ (PCNLC)(№-) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

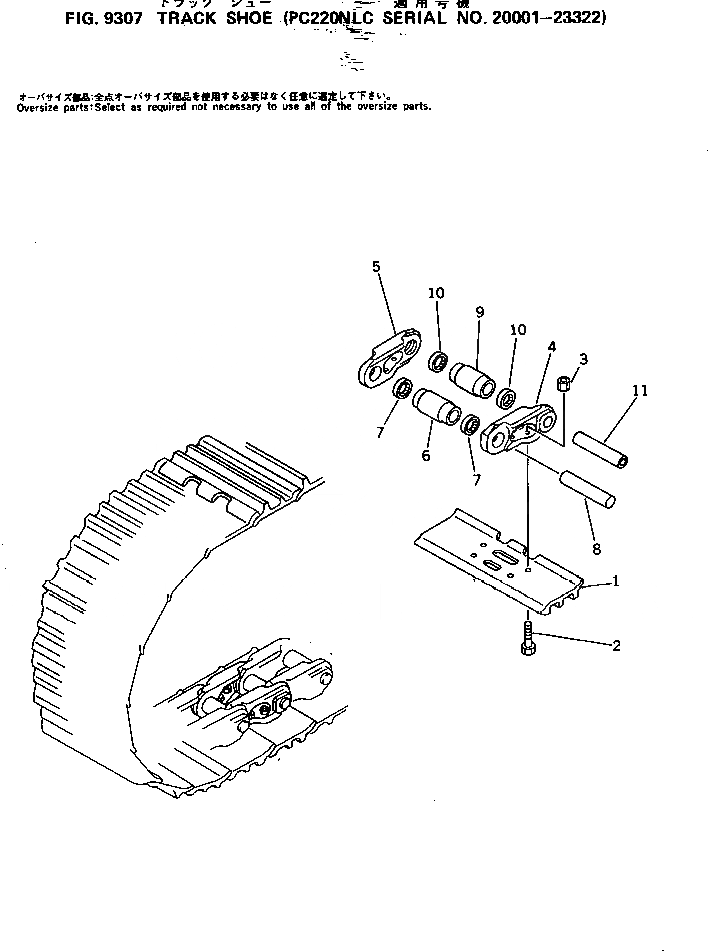

Схема запчастей Komatsu PC220LC-3 - ГУСЕНИЦЫ (PCNLC)(№-) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

|$1

20Y-32-01212

TRACK SHOE ASS'Y

|$2

205-32-02003

TRACK SHOE ASS'Y

|$3

205-32-02002

TRACK SHOE ASS'Y

|$4

205-32-02001

TRACK SHOE ASS'Y

1

205-32-51131

SHOE,TRACK

1

205-32-51130

SHOE,TRACK

2

205-32-51210

BOLT,SHOE

3

135-32-11221

NUT, SHOE

|$9

205-32-00043

TRACK LINK ASS'Y

|$10

205-32-00042

TRACK LINK ASS'Y

|$11

205-32-00041

TRACK LINK ASS'Y

4

135-32-11122

LINK,TRACK, L.H.

5

135-32-11132

LINK,TRACK, R.H.

6

135-32-11141

BUSHING, REGULAR

7

135-32-11271

SEAL,DUST, REGULAR, W-TYPE

8

20Y-32-11150

PIN, REGULAR

8

205-32-51152

PIN, REGULAR

9

135-32-11171

BUSHING, MASTER

10

135-32-11381

SEAL,DUST, MASTER, W-TYPE

11

20Y-32-11190

PIN, MASTER

11

205-32-51193

PIN, MASTER

11

205-32-21192

PIN, MASTER

1

205-32-05020

SHOE BOLT AND NUT K.

1

205-32-51210

BOLT,SHOE

2

135-32-11221

NUT, SHOE

6

135-98-09110

BUSHING, REGULAR

8

20Y-98-09010

PIN, REGULAR

8

205-98-09012

PIN, REGULAR

9

135-98-09140

BUSHING, MASTER

11

20Y-98-09030

PIN, MASTER

11

205-98-09043

PIN, MASTER

11

205-98-09042

PIN, MASTER

6

135-98-09130

BUSHING, REGULAR

8

20Y-98-09020

PIN, REGULAR

8

205-98-09032

PIN, REGULAR

9

135-98-09160

BUSHING, MASTER

11

20Y-98-09040

PIN, MASTER

11

205-98-09063

PIN, MASTER

11

205-98-09062

PIN, MASTER

Выбрано товаров: 39
