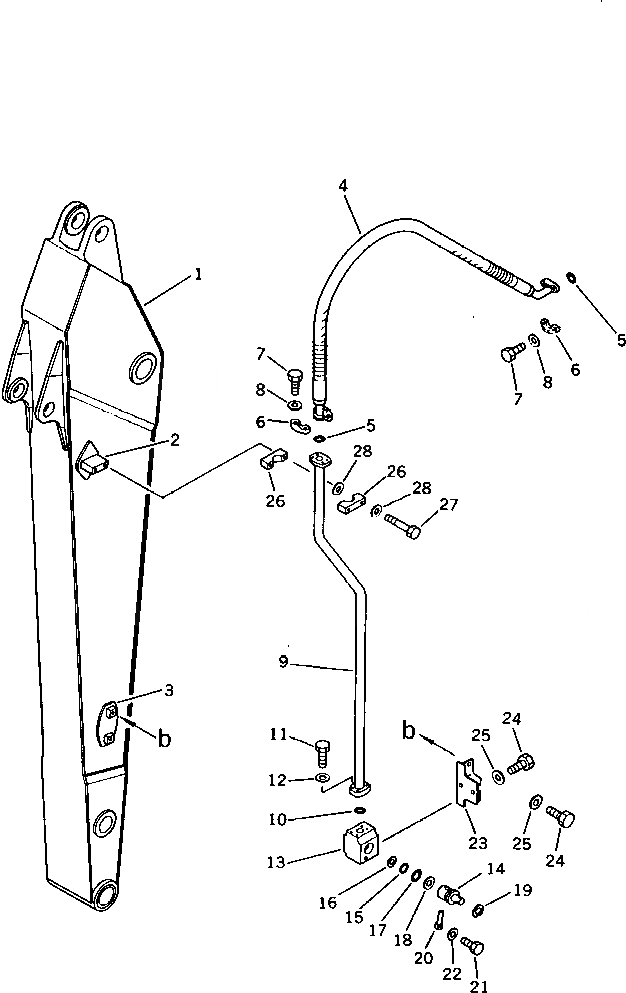

Запчасти Komatsu PC220LC-3 ДОПОЛН. ГИДРОЛИНИЯ (НАВЕСН. ОБОРУД) (ДЛЯ КОРОТК. РУКОЯТЬ) (/) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

206-970-4291

ARM,2500MM

1

206-970-4290

ARM,2500MM

1

206-970-4270

ARM,2000MM

2

205-970-1521

BRACKET (WELDED)

3

205-970-6133

BRACKET (WELDED)

3

205-970-6131

BRACKET (WELDED)

4

07097-21016

HOSE

5

07000-13032

O-RING

6

07371-31049

FLANGE,SPLIT

7

07372-21035

BOLT

8

01643-51032

WASHER

9

206-970-4310

TUBE,L.H. (FOR 2500MM ARM)

9

206-970-4280

TUBE,L.H. (FOR 2000MM ARM)

10

07000-13035

O-RING

11

07372-21040

BOLT

12

01643-51032

WASHER

|$16

205-970-0020

STOP VALVE ASS'Y

13

205-970-4260

BODY

14

205-970-4270

ROTOR

15

07000-13042

O-RING

16

07001-03042

RING,BACK-UP

17

07000-13048

O-RING

18

07001-03048

RING,BACK-UP

19

04065-05220

RING,SNAP

20

202-970-2210

PIN

21

01010-51230

BOLT

22

01643-31232

WASHER

23

205-970-6141

BRACKET

24

01010-61635

BOLT

25

01643-31645

WASHER

26

205-970-2232

CLAMP

27

01010-51280

BOLT

28

01643-31232

WASHER
