Запчасти Komatsu PC220LC-3 УПРАВЛЯЮЩ. КЛАПАН (/7) (ДЛЯ WRIST УПРАВЛ-Е)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

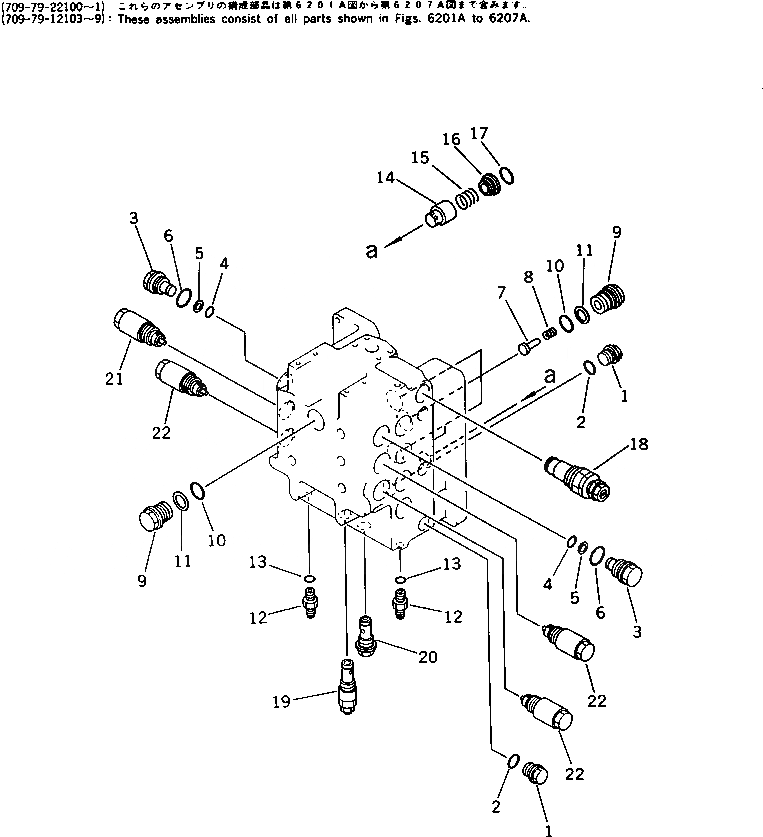

Схема запчастей Komatsu PC220LC-3 - УПРАВЛЯЮЩ. КЛАПАН (/7) (ДЛЯ WRIST УПРАВЛ-Е)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|$0

709-79-22101

CONTROL VALVE ASS'Y

|$1

709-79-22100

CONTROL VALVE ASS'Y

|$2

709-79-12109

CONTROL VALVE ASS'Y

|$3

709-79-12108

CONTROL VALVE ASS'Y

|$4

709-79-12107

CONTROL VALVE ASS'Y

|$5

709-79-12106

CONTROL VALVE ASS'Y

|$6

709-79-12105

CONTROL VALVE ASS'Y

|$7

709-79-12104

CONTROL VALVE ASS'Y

|$8

709-79-12103

CONTROL VALVE ASS'Y

|$9

709-74-92105

VALVE ASS'Y

|$10

709-74-92104

VALVE ASS'Y

|$11

709-74-00020

VALVE ASS'Y

|$12

709-74-92101

VALVE ASS'Y

1

700-22-11370

PLUG

2

07002-12434

O-RING

3

700-84-13960

PLUG

4

700-22-11410

O-RING

5

700-80-64220

RING,BACK-UP

6

07002-03034

O-RING

7

709-74-92810

VALVE,CHECK

7

709-75-92210

VALVE,CHECK

8

709-75-92220

SPRING

9

709-74-92820

PLUG

9

709-75-92230

PLUG

10

700-93-11320

O-RING

11

700-93-11330

RING,BACK-UP

12

709-75-92240

UNION

13

07002-01623

O-RING

14

709-74-92281

VALVE

14

709-74-92280

VALVE

15

709-74-92290

SPRING

16

709-74-92310

SEAT

17

07000-13038

O-RING

18

709-70-51200

RELIEF VALVE ASS'Y

19

709-70-55103

RELIEF VALVE ASS'Y

19

709-70-55102

RELIEF VALVE ASS'Y

19

709-70-55101

RELIEF VALVE ASS'Y

19

709-70-55100

RELIEF VALVE ASS'Y

20

709-70-91300

ORIFICE ASS'Y

21

709-70-61101

VALVE ASS'Y,SUCTION AND SAFETY

21

709-70-61100

VALVE ASS'Y,SUCTION AND SAFETY

22

709-70-61201

VALVE ASS'Y,SUCTION AND SAFETY

22

709-70-61200

VALVE ASS'Y,SUCTION AND SAFETY

Выбрано товаров: 43
