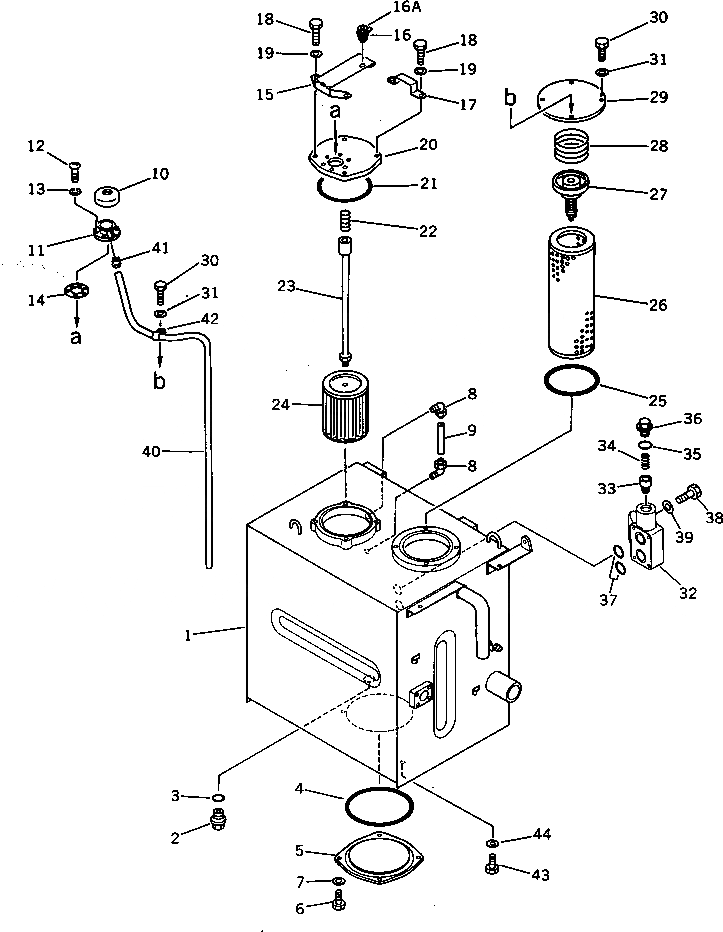

Запчасти Komatsu PC220LC-3 ГИДРАВЛ МАСЛ. БАК(№-77) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

205-60-00081

HYDRAULIC TANK ASS'Y

1

205-60-71113

TANK,HYDRAULIC

2

07044-13620

PLUG

3

07002-03634

O-RING

4

07000-05240

O-RING

5

205-60-71132

COVER

6

01010-51025

BOLT

7

01643-31032

WASHER

8

203-60-31100

ELBOW ASS'Y

9

203-60-31160

TUBE

10

201-60-12190

CAP ASS'Y

11

201-60-12171

FILLER NECK

12

01220-40516

SCREW

13

01601-20513

WASHER,SPRING

14

205-60-51460

GASKET

15

205-60-71190

COVER

16

205-60-71220

LOCK ASS'Y

16A

205-54-76280

ROTOR ASS'Y

17

205-60-71210

BRACKET

18

01010-51035

BOLT

19

01643-31032

WASHER

20

203-60-31192

COVER

21

07000-05180

O-RING

22

12R-60-11230

SPRING

23

205-60-71170

SUPPORT

24

205-60-51450

STRAINER

25

07000-05180

O-RING

26

195-60-16320

ELEMENT

27

12R-60-11300

VALVE ASS'Y

28

12R-60-11390

SPRING

29

205-60-71141

COVER

30

01010-51230

BOLT

31

01643-31232

WASHER

32

205-60-71181

BLOCK

33

205-60-51350

POPPET

34

205-60-51360

SPRING

35

07002-04234

O-RING

36

07040-14220

PLUG

37

07000-02065

O-RING

38

01010-51075

BOLT

39

01643-51032

WASHER

40

207-60-11350

TUBE

41

07285-00100

CLIP

41

07280-01110

CLAMP

42

08036-11214

CLIP

43

01010-51635

BOLT

44

01643-31645

WASHER
