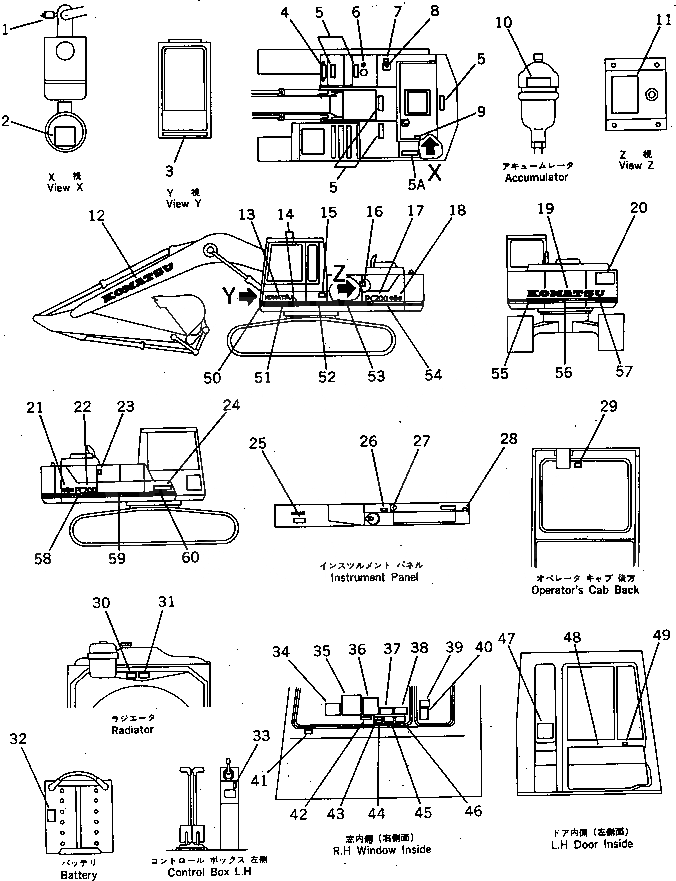

Запчасти Komatsu PC220LC-3 МАРКИРОВКА (АНГЛ.) (ДЛЯ WRIST УПРАВЛ-Е) (С АВТОМАТИЧ. DECEL.¤ ПОВОРОТН. MECHA. ТОРМОЗ.¤ -STAGE) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

08670-50635

INDICATOR,DUST

2

09637-30661

PLATE¤ INSTRUCTION

|2

09637-30161

PLATE¤ INSTRUCTION

3

205-54-76480

PLATE

4

205-54-76511

SEAT,NONSKID

|4

205-54-76510

SEAT,NONSKID

5

154-54-23260

SEAT,NONSKID

5A

205-54-76511

SEAT,NONSKID

|5A

154-54-23260

SEAT,NONSKID

6

09669-00002

PLATE¤ CAUTION,FUEL

7

09653-03000

PLATE¤ SAFETY,HYDRAULIC TANK CAP

8

09669-00003

PLATE¤ CAUTION,HYDRAULIC OIL TANK

9

09667-03000

PLATE¤ SAFETY

10

205-00-71440

PLATE

11

207-00-31390

PLATE

|11

205-00-75331

PLATE¤ OPERATING

|11

205-00-75330

PLATE¤ OPERATING

12

205-00-63171

PLATE¤ MARK,KOMATSU

13

09690-50500

PLATE¤ MARK,KOMATSU

14

205-00-63770

PLATE

15

09602-01643

PLATE¤ NAME

|15

205-00-72430

RIVET

|15

205-00-71540

SCREW

16

205-00-71520

PLATE¤ OPERATING

17

206-00-44150

PLATE¤ MARK,PC220LC

18

205-00-71240

PLATE¤ MARK,SYMBOL

19

205-00-71110

PLATE¤ MARK

20

09133-03000

PLATE¤ SAFETY,KEEP OUT OF TURNING AREA

21

205-00-71240

PLATE¤ MARK,SYMBOL

22

206-00-44150

PLATE¤ MARK,PC220LC

23

205-00-73360

PLATE¤ OPERATING

|23

203-00-31120

PLATE¤ INSTRUCTION

24

09690-50500

PLATE¤ MARK,KOMATSU

25

09685-00002

PLATE¤ OPERATING,SWING LOCK LEVER

26

09685-00001

PLATE¤ OPERATING

27

09683-30060

PLATE¤ OPERATING,STARTING SWITCH

28

203-00-41311

PLATE¤ OPERATING

|28

205-00-71450

PLATE

29

205-00-63350

PLATE¤ CAUTION

30

205-00-65270

PLATE¤ CAUTION

31

09668-03000

PLATE¤ SAFETY

32

09664-30068

PLATE¤ INSTRUCTION

|32

09664-30065

PLATE¤ SAFETY

33

09685-00002

PLATE¤ OPERATING,SAFETY LOCK LEVER

34

205-00-71820

PLATE

|34

205-00-71940

PLATE

35

205-00-66110

PLATE¤ OPERATING

36

205-00-75340

PLATE

37

205-00-65280

PLATE

38

205-00-65260

PLATE

39

205-00-65490

PLATE¤ CAUTION

40

205-00-71570

PLATE¤ CAUTION

41

205-00-63360

PLATE¤ CAUTION

42

205-00-76230

PLATE

43

09131-03000

PLATE¤ SAFETY,SWING LOCK LEVER

44

205-00-73380

PLATE¤ SAFETY

|44

09651-03000

PLATE¤ SAFETY

45

09173-03000

PLATE¤ SAFETY,INSPECTION AND MAINTENANCE

46

205-00-63390

PLATE¤ CAUTION

47

206-00-44180

PLATE¤ CAUTION

48

205-54-72171

COVER

|48

205-54-72170

COVER

|48

205-54-72350

CLIP ASS'Y

|48

205-54-72350

CLIP ASS'Y

49

205-00-71340

PLATE¤ OPERATING

|50

205-00-71530

LINE¤ STRIPE¤ 50M

50

205-00-73270

LINE¤ STRIPE¤ 46MM,(SERVICE PARTS)

51

205-00-71120

LINE¤ STRIPE¤ 1030MM,(SERVICE PARTS)

52

205-00-71130

LINE¤ STRIPE¤ 476MM,(SERVICE PARTS)

53

205-00-71140

LINE¤ STRIPE¤ 844MM,(SERVICE PARTS)

54

205-00-71150

LINE¤ STRIPE¤ 984MM,(SERVICE PARTS)

55

205-00-71160

LINE¤ STRIPE¤ 1093MM,(SERVICE PARTS)

56

205-00-71170

LINE¤ STRIPE¤ 955MM,(SERVICE PARTS)

57

205-00-71160

LINE¤ STRIPE¤ 1093MM,(SERVICE PARTS)

58

205-00-71190

LINE¤ STRIPE¤ 849MM,(SERVICE PARTS)

59

205-00-71210

LINE¤ STRIPE¤ 1104MM,(SERVICE PARTS)

60

205-00-71230

LINE¤ STRIPE¤ 757MM,(SERVICE PARTS)
