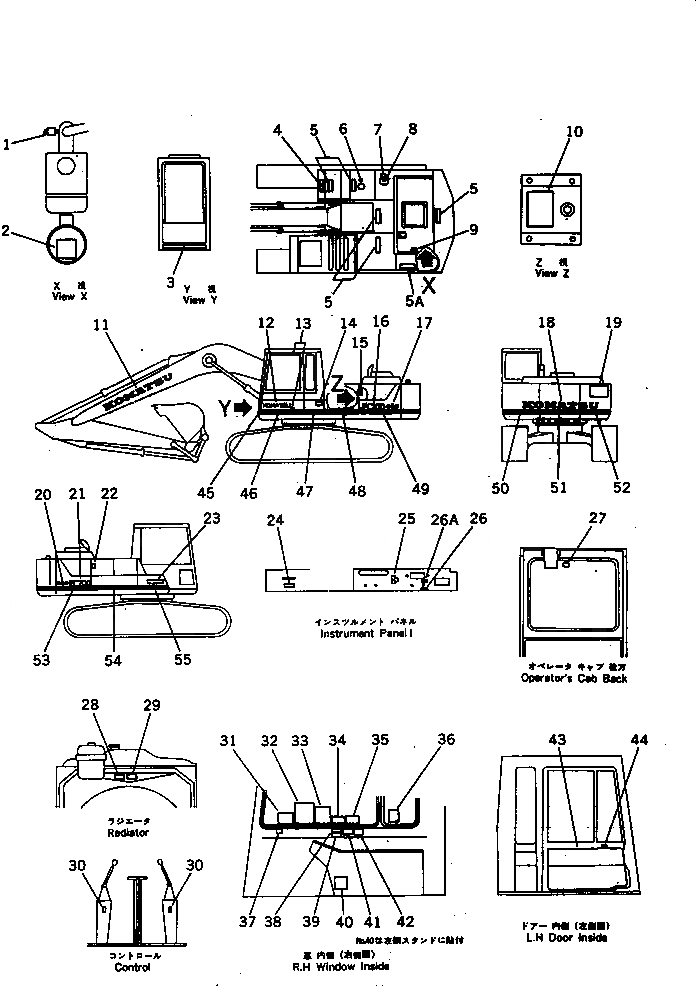

Запчасти Komatsu PC220LC-3 МАРКИРОВКА (ДЛЯ ЯПОН.)(ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е)(С АВТОМАТИЧ. DECEL.¤ ПОВОРОТН. MECHA. ТОРМОЗ.¤ -STAGE) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

08670-50635

INDICATOR,DUST

2

09637-00661

PLATE¤ INSTRUCTION

|2

09637-00161

PLATE¤ INSTRUCTION

3

205-54-76480

PLATE

4

205-54-76511

SEAT,NONSKID

|4

205-54-76510

SEAT,NONSKID

5

154-54-23260

SEAT,NONSKID

5A

205-54-76511

SEAT,NONSKID

|5A

154-54-23260

SEAT,NONSKID

6

09669-00002

PLATE¤ CAUTION,FUEL

7

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

8

09669-00003

PLATE¤ CAUTION,HYDRAULIC OIL TANK

9

09667-00100

PLATE¤ SAFETY

10

207-00-31380

PLATE¤ OPERATING

|10

205-00-71491

PLATE¤ OPERATING

|10

205-00-71490

PLATE¤ OPERATING

11

205-00-63171

PLATE¤ MARK,KOMATSU

12

09690-50500

PLATE¤ MARK,KOMATSU

13

205-00-63770

PLATE

14

09602-01643

PLATE¤ NAME

|14

205-00-72430

RIVET

|14

205-00-71540

SCREW

15

205-00-71510

PLATE¤ OPERATING

16

206-00-44150

PLATE¤ MARK,PC220LC

17

205-00-71240

PLATE¤ MARK,SYMBOL

18

205-00-71110

PLATE¤ MARK

19

09133-00100

PLATE¤ SAFETY,KEEP OUT OF TURNING AREA

20

205-00-71240

PLATE¤ MARK,SYMBOL

21

206-00-44150

PLATE¤ MARK,PC220LC

22

205-00-73360

PLATE¤ OPERATING

|22

203-00-31120

PLATE¤ INSTRUCTION

23

09690-50500

PLATE¤ MARK,KOMATSU

24

09685-00002

PLATE¤ OPERATING,SWING LOCK LEVER

25

09683-01060

PLATE¤ OPERATING,STARTING SWITCH

26

205-00-71470

PLATE¤ OPERATING

26A

205-00-71480

PLATE¤ OPERATING

27

205-00-63230

PLATE¤ CAUTION

28

09668-00100

PLATE¤ SAFETY

29

205-00-65150

PLATE¤ CAUTION

30

09685-00001

PLATE¤ OPERATING,SAFETY LOCK LEVER

31

205-00-71810

PLATE

32

205-00-71291

PLATE¤ OPERATING

33

205-00-71350

PLATE¤ OPERATING

34

205-00-65120

PLATE¤ CAUTION

35

205-00-65190

PLATE¤ CAUTION

36

205-00-71560

PLATE¤ CAUTION

37

205-00-52192

PLATE¤ CAUTION

38

205-00-73370

PLATE¤ CAUTION

|38

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

39

09131-00100

PLATE¤ SAFETY,SWING LOCK LEVER

40

206-00-44160

PLATE¤ DATA

41

09173-00100

PLATE¤ SAFETY,INSPECTION AND MAINTENANCE

42

205-00-63250

PLATE¤ CAUTION

43

205-54-72262

COVER

|43

205-54-72261

COVER

|43

205-54-72350

CLIP ASS'Y

|43

205-54-72350

CLIP ASS'Y

44

205-00-71340

PLATE¤ OPERATING

|45

205-00-71530

LINE¤ STRIPE¤ 50M

45

205-00-73270

LINE¤ STRIPE¤ 46MM,(SERVICE PARTS)

46

205-00-71120

LINE¤ STRIPE¤ 1030MM,(SERVICE PARTS)

47

205-00-71130

LINE¤ STRIPE¤ 476MM,(SERVICE PARTS)

48

205-00-71140

LINE¤ STRIPE¤ 844MM,(SERVICE PARTS)

49

205-00-71150

LINE¤ STRIPE¤ 984MM,(SERVICE PARTS)

50

205-00-71160

LINE¤ STRIPE¤ 1093MM,(SERVICE PARTS)

51

205-00-71170

LINE¤ STRIPE¤ 955MM,(SERVICE PARTS)

52

205-00-71160

LINE¤ STRIPE¤ 1093MM,(SERVICE PARTS)

53

205-00-71190

LINE¤ STRIPE¤ 849MM,(SERVICE PARTS)

54

205-00-71210

LINE¤ STRIPE¤ 1104MM,(SERVICE PARTS)

55

205-00-71230

LINE¤ STRIPE¤ 757MM,(SERVICE PARTS)
