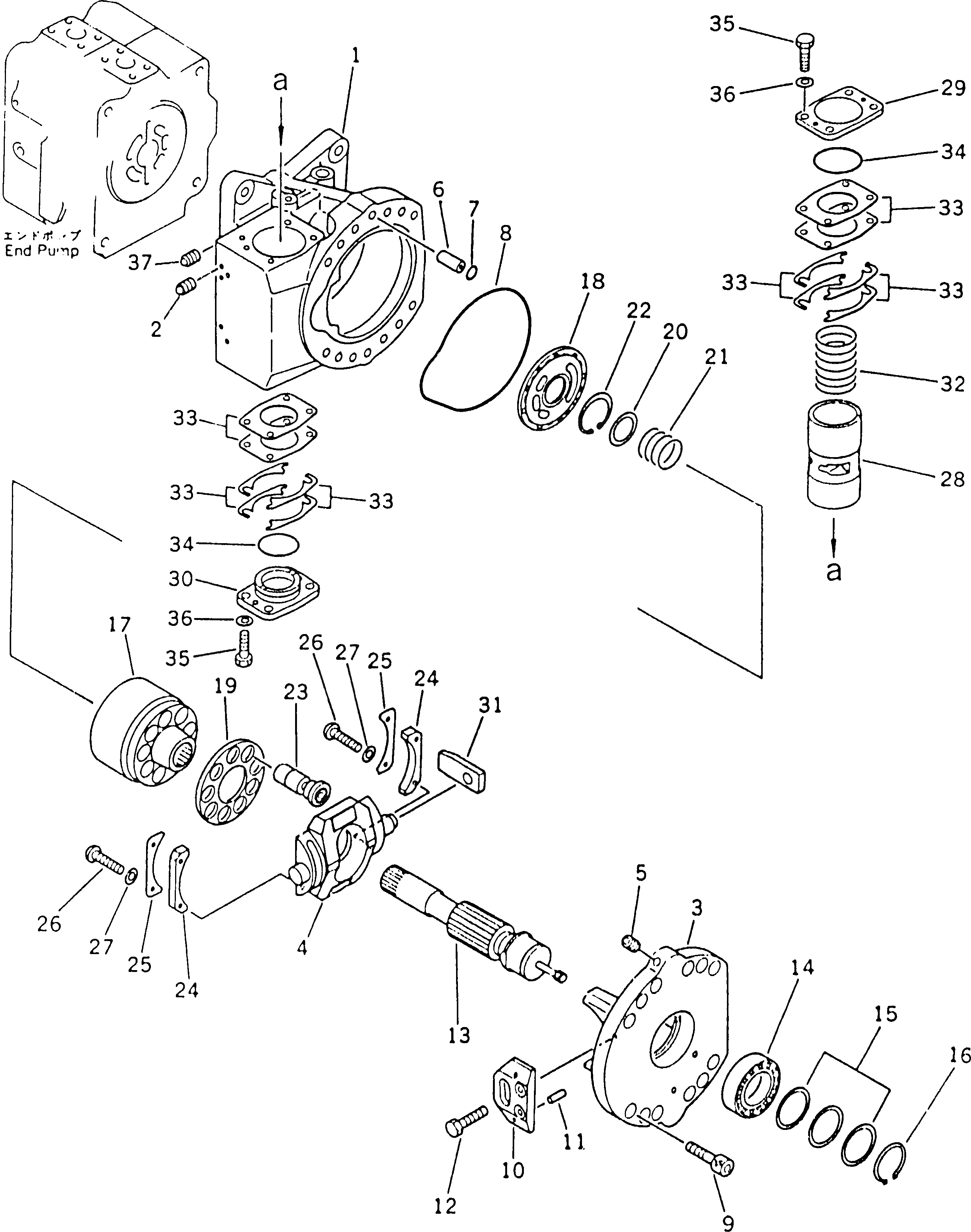

Запчасти Komatsu PC220LC-3 ГИДРАВЛ ПОРШЕНЬ НАСОС (/) (С -STAGE SELECTOR MODE OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-25-01054

PUMP ASS'Y

|1

708-25-01053

PUMP ASS'Y

|1

708-25-01052

PUMP ASS'Y

|1

708-25-01051

PUMP ASS'Y

|1

708-25-01050

PUMP ASS'Y

|1

708-25-10101

PUMP ASS'Y

|1

708-25-11100

PUMP SUB ASS'Y

1

CASE,REAR

2

PLUG

|3

708-25-00040

CRADLE ASS'Y,REAR

3

CRADLE,REAR

4

CAM,ROCKER

5

PLUG

6

708-25-12330

JOINT

7

07000-12015

O-RING

8

708-25-12340

O-RING

9

708-25-12350

BOLT

10

708-25-12360

PLATE

11

04020-00820

PIN,DOWEL

12

01010-30816

BOLT

13

SHAFT

14

BEARING

15

708-25-05010

WASHER KIT

|15

WASHER¤ 2.0MM

|15

WASHER¤ 2.1MM

|15

WASHER¤ 2.2MM

16

708-25-12790

RING,SNAP

|17

708-25-00021

CYLINDER BLOCK ASS'Y

17

BLOCK,CYLINDER

18

PLATE,VALVE

19

RETAINER,SHOE

20

708-25-13120

WASHER

21

708-25-13130

SPRING

22

708-25-13140

RING,SNAP

|23

708-25-00200

PISTON ASS'Y

23

PISTON SUB ASS'Y

24

SPACER¤ 11.575MM

|24

SPACER¤ 11.540MM

|24

SPACER¤ 11.560MM

25

708-25-13441

RETAINER

26

708-25-13470

SCREW

27

01643-30623

WASHER

|28

708-25-00220

PISTON GROUP

28

PISTON

29

CAP

30

CAP

31

708-25-14120

SLIDER

32

708-25-14130

SPRING

33

708-25-05050

SHIM KIT

|33

SHIM¤ 0.1MM

|33

SHIM¤ 0.1MM

|33

SHIM¤ 0.2MM

|33

SHIM¤ 0.5MM

34

07000-02065

O-RING

35

01010-51025

BOLT

36

01643-31032

WASHER

37

PLUG
