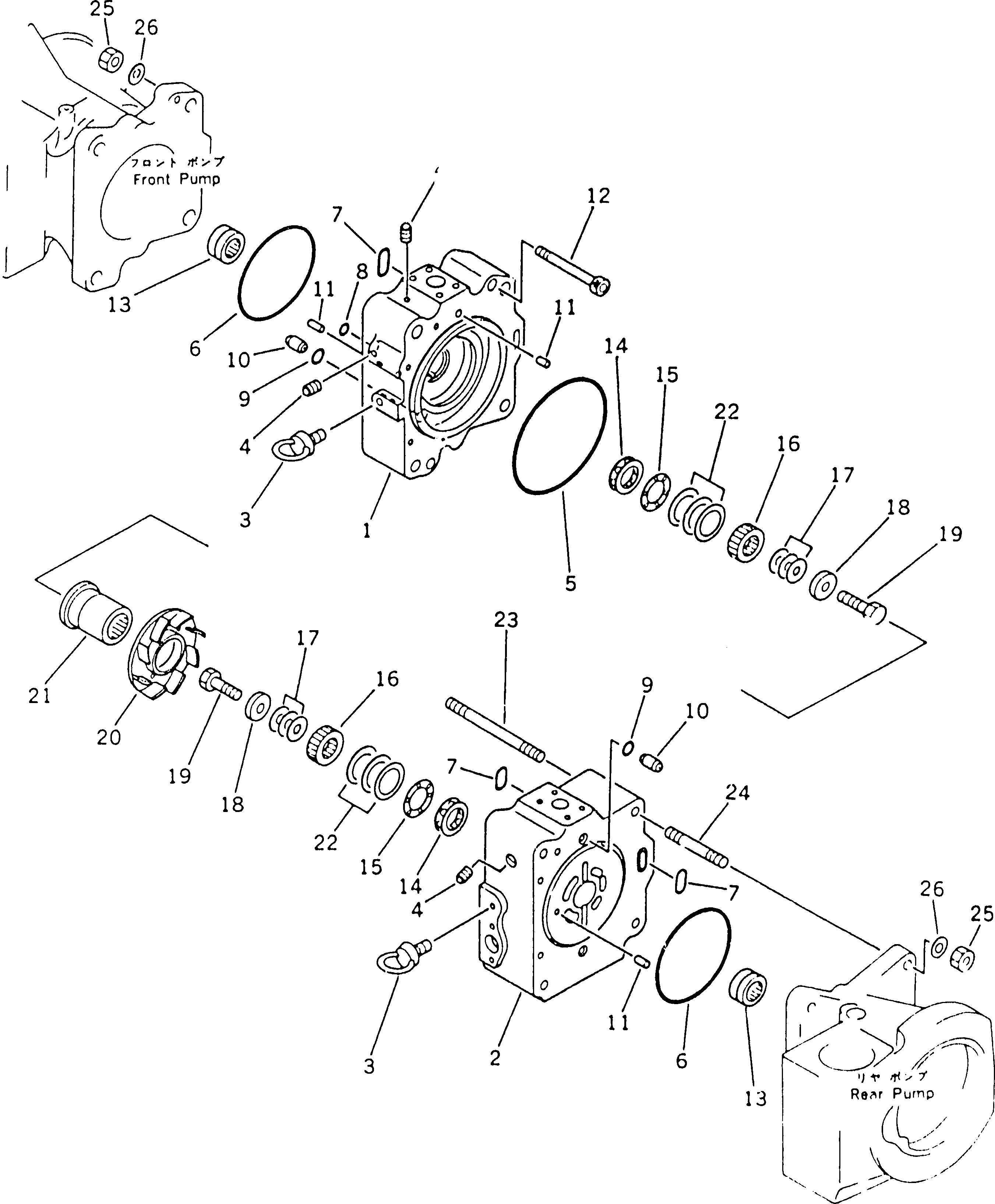

Запчасти Komatsu PC220LC-3 ГИДРАВЛ ПОРШЕНЬ НАСОС (/) (С -STAGE SELECTOR MODE OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-25-01054

PUMP ASS'Y

|1

708-25-01053

PUMP ASS'Y

|1

708-25-01052

PUMP ASS'Y

|1

708-25-01051

PUMP ASS'Y

|1

708-25-01050

PUMP ASS'Y

|1

708-25-10101

PUMP ASS'Y

|1

708-25-11100

PUMP SUB ASS'Y

1

CAP,END

2

CAP,END

3

04530-01018

BOLT,EYE

4

720-68-19510

PLUG

5

07000-05165

O-RING

6

07000-02135

O-RING

7

07000-03032

O-RING

8

07000-11009

O-RING

9

07000-12015

O-RING

10

708-25-12330

JOINT

11

720-68-19610

PIN

12

708-25-12530

BOLT

13

708-25-12740

BEARING

14

06000-51106

BEARING

15

708-25-12820

SPACER

16

708-25-12830

BOSS

17

708-25-05020

SHIM KIT

|17

SHIM¤ 0.1MM

|17

SHIM¤ 0.15MM

|17

SHIM¤ 0.2MM

|17

SHIM¤ 0.5MM

18

708-25-12880

PLATE

19

01010-51016

BOLT

20

708-25-12540

IMPELLER

21

708-25-12550

COUPLING

22

708-25-05040

SPACER KIT

|22

SPACER¤ 0.1MM

|22

SPACER¤ 0.2MM

|22

SPACER¤ 0.5MM

23

01141-81620

STUD

24

01140-81645

STUD

25

01582-21613

NUT

26

01643-31645

WASHER
