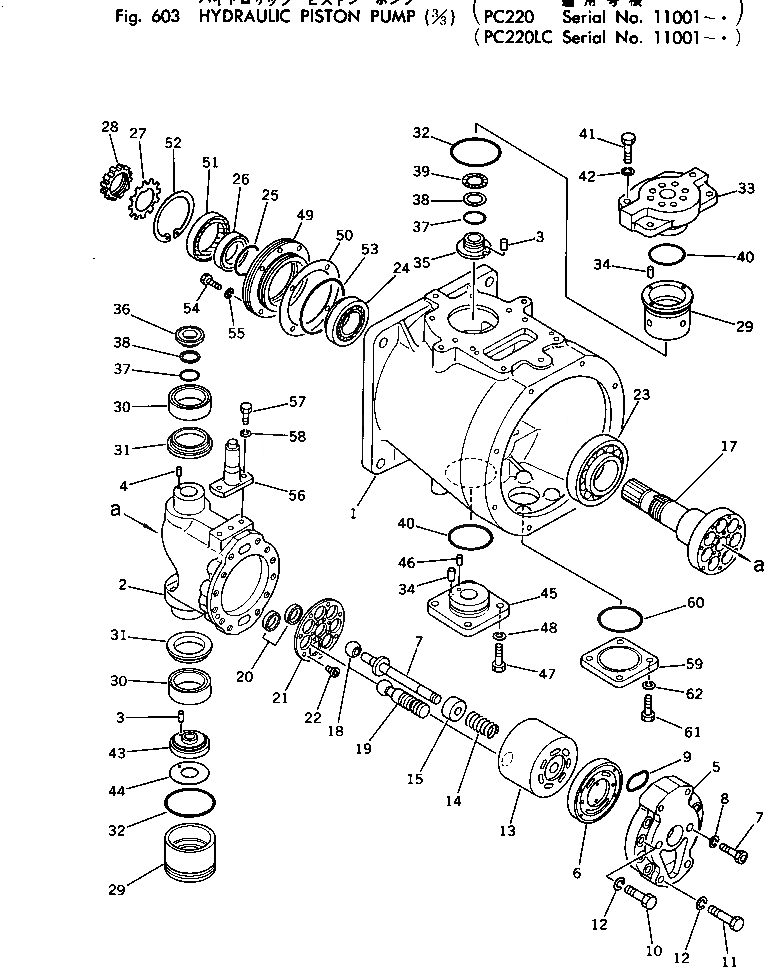

Запчасти Komatsu PC220LC-2 ГИДРАВЛ ПОРШЕНЬ НАСОС (/)(№-.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
706-46-21001
HYDRAULIC PUMP ASS'Y
|$1
706-46-20703
HYDRAULIC PUMP ASS'Y
|$2
706-46-42001
PUMP SUB ASS'Y
1
CASE,PUMP
2
CASE,CYLINDER
3
PIN,DOWEL
4
PIN,DOWEL
5
COVER,END
6
PLATE,VALVE
7
BOLT
8
WASHER,SPRING
9
O-RING
10
BOLT
11
BOLT
12
WASHER,SPRING
13
BLOCK,CYLINDER
14
SPRING
15
RING,CENTER
16
SHAFT,CENTER
17
SHAFT,DRIVE
18
BALL,CENTER
19
PISTON SUB ASS'Y
20
HOLDER
21
RETAINER
22
SCREW
23
BEARING
24
BEARING
25
O-RING
26
RING
27
WASHER,LOCK
28
NUT
29
SLEEVE
30
BEARING
31
SPACER
32
O-RING
33
BOSS,TRUNNION
34
PIN
35
RING
36
RING
37
O-RING
38
RING,BACK-UP
39
WASHER,WAVE
40
O-RING
41
BOLT
42
WASHER,SPRING
43
RING
44
WASHER,THRUST
45
BOSS,TRUNNION
46
PIN,DOWEL
47
BOLT
48
WASHER,SPRING
49
BOSS
50
GASKET
51
SEAL,OIL
52
RING,SNAP
53
O-RING
54
BOLT
55
WASHER,SPRING
56
PIN
57
BOLT
58
WASHER,SPRING
59
COVER
60
O-RING
61
BOLT
62
WASHER,SPRING
62
706-98-00780
SERVICE KIT,(EXCEPT JAPAN)
62
SHAFT,DRIVE
62
BEARING
62
PISTON SUB ASS'Y
62
RETAINER
62
HOLDER
62
BALL,CENTER
62
SHAFT,CENTER
62
RING,CENTER
62
SPRING
62
BLOCK,CYLINDER
62
SCREW
62
SEAL,OIL
62
GASKET
62
BOLT
62
WASHER,SPRING
62
WASHER,LOCK
62
O-RING
62
O-RING
62
O-RING
62
O-RING
62
O-RING
62
RING,BACK-UP
62
O-RING
62
O-RING
62
O-RING
62
GASKET
62
O-RING
62
O-RING
62
O-RING
62
O-RING
62
O-RING
62
O-RING
62
O-RING
62
O-RING
62
O-RING
62
706-98-05040
SERVICE KIT,(EXCEPT JAPAN)
62
706-66-40730
COVER ASS'Y
62
706-46-40070
PLATE,VALVE
62
706-75-40310
BOLT
62
01602-20619
WASHER,SPRING
Выбрано товаров: 106
