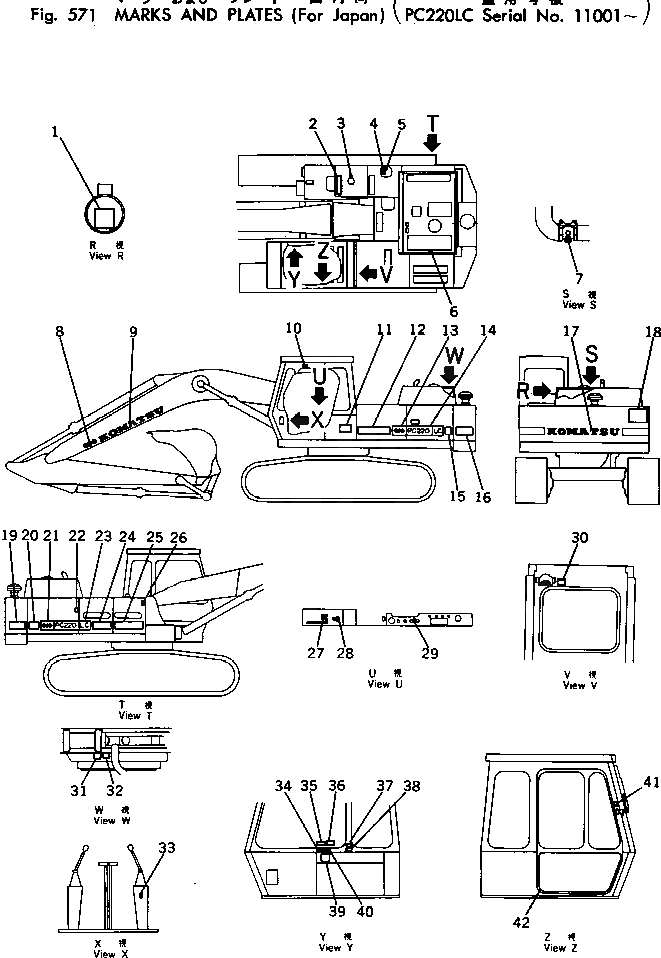

Запчасти Komatsu PC220LC-2 МАРКИРОВКА ОСНОВНАЯ РАМА И КАБИНА

1

09637-00161

PLATE, INSTRUCTION,AIR CLEANER

2

154-54-23260

SEAT,NON SKID

3

09669-00002

PLATE, CAUTION,FUEL TANK

4

09653-00100

PLATE, SAFETY,HYDRAULIC OIL TANK

5

09669-00003

PLATE, CAUTION,HYDRAULIC OIL TANK

6

09667-00100

PLATE, SAFETY,ENGINE COVER

7

08670-00635

INDICATOR,DUST INDICATOR

8

205-00-63280

PLATE, MARK,SYMBOL

9

205-00-63171

PLATE, MARK,KOMATSU

10

205-00-63770

PLATE,GUARD

11

09602-01643

PLATE, NAME,(LIMITED SUPPLY)

11

01220-60408

SCREW

12

206-00-43210

STRIPE

13

205-00-63840

PLATE, MARK,SYMBOL

14

206-00-42270

PLATE,PC220LC

15

206-00-43190

STRIPE

16

206-00-43121

STRIPE

16

206-00-43120

STRIPE

17

205-00-63270

PLATE, MARK,KOMATSU

18

09133-00100

PLATE, SAFETY,KEEP OUT OF TURNING AREA

19

206-00-43131

STRIPE

19

206-00-43130

STRIPE

20

206-00-43220

STRIPE

21

206-00-43180

PLATE,PC220LC

22

203-00-31120

PLATE, INSTRUCTION,LEVEL GAUGE

23

205-00-66150

PLATE, MARK

24

206-00-43230

STRIPE

25

206-00-42240

PLATE, MARK

26

205-00-65170

PLATE,LEVEL GAUGE

27

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

28

175-98-31150

PLATE, OPERATING,MAIN SWITCH

29

175-98-31120

PLATE, OPERATING,STARTING SWITCH

30

205-00-63230

PLATE, CAUTION,AUTOMATIC LOCK

31

205-00-65150

PLATE, CAUTION

32

09668-00100

PLATE, SAFETY,RADIATOR CAP

33

09685-00001

PLATE, OPERATING,SAFETY LOCK

34

09651-00100

PLATE, SAFETY,BEFORE OPERATING

35

205-00-65120

PLATE, CAUTION,ENGINE STOP

36

205-00-65190

PLATE, CAUTION,CYLINDER AIR BLEED

37

09173-00100

PLATE, SAFETY,MAINTENANCE

38

205-00-63250

PLATE, CAUTION

39

206-00-43240

PLATE,DATA

40

09131-00100

PLATE, SAFETY,SWING LOCK LEVER

41

205-00-52192

PLATE, CAUTION,WIPER MOTOR

42

205-00-65180

COVER

42

205-00-65310

CLIP ASS'Y
