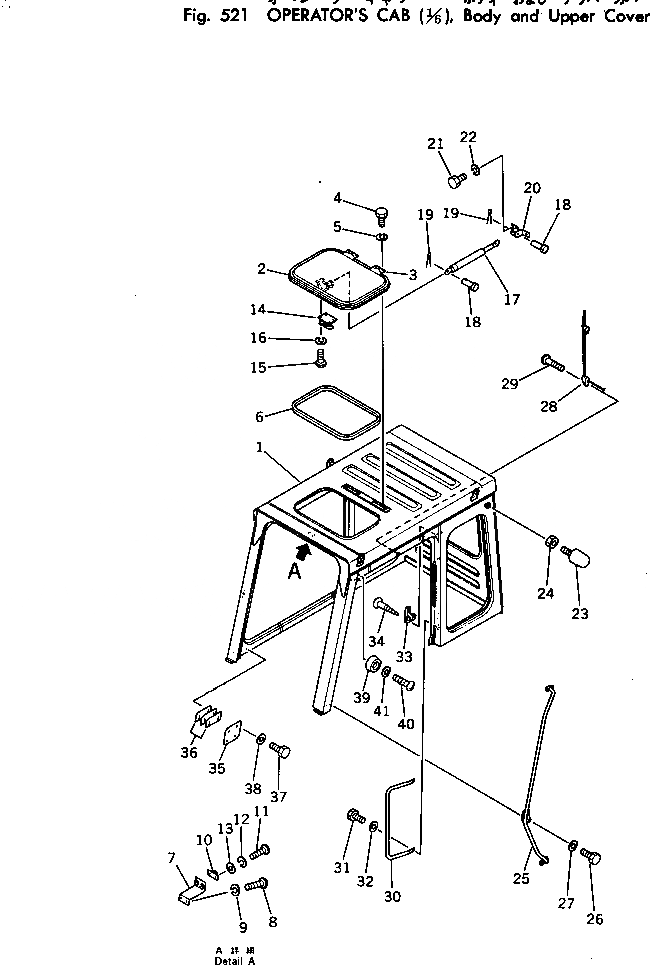

Запчасти Komatsu PC220LC-2 КАБИНА (/) КУЗОВ И ВЕРХН. ЧАСТЬ ОСНОВНАЯ РАМА И КАБИНА

|$0

205-54-00161

OPERATOR'S CAB ASS'Y

|$1

205-54-00160

OPERATOR'S CAB ASS'Y

1

205-54-66121

CAB

2

205-54-66180

COVER

3

205-54-63490

HINGE (WELDED)

4

01010-50612

BOLT

5

01602-20619

WASHER,SPRING

6

205-54-66380

SEAL

7

205-54-66370

BRACKET

8

01220-40616

SCREW

9

01602-20619

WASHER,SPRING

10

205-54-66270

HOLDER

11

01220-40620

SCREW

12

01602-20619

WASHER,SPRING

13

01641-20608

WASHER

14

205-54-66190

LOCK ASS'Y

15

01220-40614

SCREW

16

01602-20619

WASHER,SPRING

17

205-54-63650

GAS SPRING ASS'Y

18

04205-10825

PIN

19

04050-12012

PIN,COTTER

20

205-54-63640

BRACKET

21

01010-50820

BOLT

22

01602-20825

WASHER,SPRING

23

205-54-67960

STOPPER

24

01580-11008

NUT

25

205-54-66630

HANDLE

26

01010-51030

BOLT

27

01643-31032

WASHER

28

205-06-62350

ANTENNA ASS'Y

29

01220-40420

SCREW

29

01225-40425

SCREW

30

205-54-66480

HANDLE

31

01010-51030

BOLT

32

01643-31032

WASHER

33

205-54-51250

HANGER

34

01381-00420

SCREW

35

205-54-66510

PLATE

36

205-54-66640

SHIM, 1.0MM

37

01010-51030

BOLT

38

01643-31032

WASHER

39

205-54-51960

CUSHION

40

01370-00412

SCREW

41

01641-20405

WASHER
